Introduction

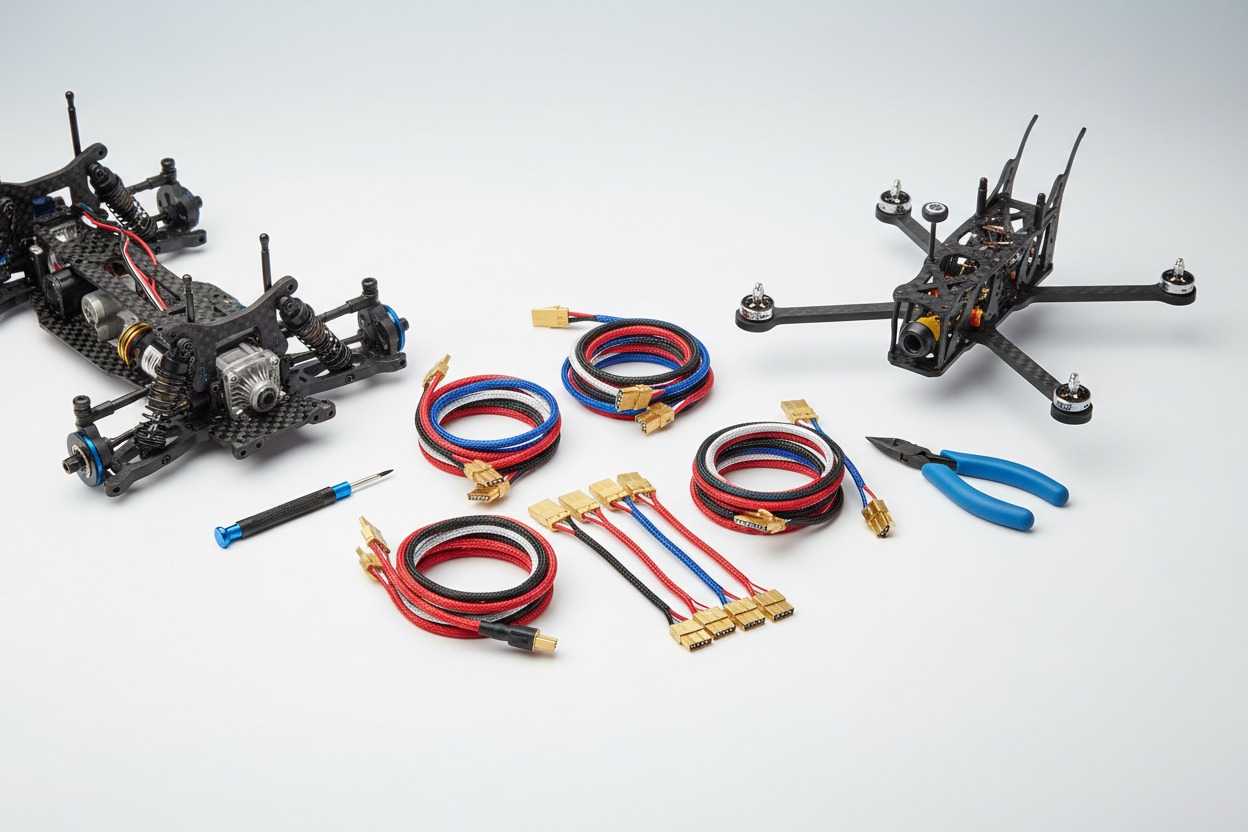

Whether you are building a custom FPV drone, upgrading your favorite RC rock crawler, or working on a complex robotics project, one component remains critical to your success: the servo extension cable.
A poor-quality cable or the wrong wire gauge can lead to signal loss, voltage drops, and ultimately, a catastrophic crash. In this comprehensive guide, we will break down everything you need to know about choosing and installing the right servo extension cables to keep your builds reliable and safe.
1. Understanding Servo Connector Types: JR vs. Futaba
Before purchasing an extension cable, you need to identify the connector type your electronics use. The two most common standards in the RC hobby world are JR and Futaba.
-
JR Connectors: These feature a universal, slightly beveled design on the edges. They can easily fit into both JR and Futaba style receivers.
-
Futaba Connectors: These have a distinct "tab" or "key" on one side of the plastic housing. This prevents you from plugging the cable in backward, but it means they will only fit into receivers designed for Futaba unless you manually clip the tab off.
Pro Tip: If you are unsure, going with a universal JR style male-to-female extension cable is usually the safest bet for maximum compatibility across different brands.
2. Wire Gauge (AWG) Matters: 22 AWG vs. 26 AWG
The thickness of the wire inside your servo extension cable dictates how much current it can safely handle over a distance.
-
26 AWG (Thinner Wires): Perfect for small projects, micro servos, and lightweight drone builds where every gram counts. However, they struggle with high-torque servos.
-
22 AWG (Thicker Wires): The industry standard for heavy-duty applications. If you are running 1/10 or 1/8 scale RC cars, high-voltage (HV) servos, or long wire runs in large airplanes, always choose 22 AWG to prevent voltage drops.
3. Step-by-Step Guide to Installing Servo Extensions Securely
Long wire runs are prone to pulling apart due to vibrations during high-speed runs or intense aerial maneuvers. Follow these steps for a bulletproof installation:
Step 1: Measure and Route
Route your wires away from moving parts (like drive shafts or gears) and heat sources (like the ESC or motor). Measure the exact distance, leaving about 2-3 cm of slack so the cable isn't under tension.
Step 2: Use a Servo Safety Clip
Never just plug a male and female servo connector together and leave it loose inside the chassis. Use a plastic servo safety clip or wrap the connection tightly with heat shrink tubing to lock them together permanently.
Step 3: Secure with Zip Ties
Fasten the extension cable to the chassis or drone frame using small zip ties. This prevents the wire from flopping around, which can cause micro-disconnects over time.
Conclusion
A servo extension cable might seem like a minor accessory, but it is the central nervous system of your RC model. Investing in high-quality, properly gauged cables ensures that your commands reach the control surfaces instantly and without interruption.
