Selecting the appropriate wire gauge for servo extension cables in RC scale models and custom drone builds is a critical decision that directly impacts the performance, safety, and longevity of your equipment. The wire gauge you choose determines how much electrical current can safely flow through the cable without generating excessive heat or voltage drop, both of which can cause servo malfunction, reduced responsiveness, or even component damage. Understanding the relationship between wire thickness, current capacity, and your specific application requirements is essential for building reliable RC systems that perform consistently in the field.
The most common wire gauges used in servo extension cables are twenty-two AWG and twenty-six AWG, each serving different purposes within the RC hobby ecosystem. Twenty-two AWG wire offers a larger cross-sectional area, which translates to lower electrical resistance and higher current-carrying capacity. This gauge is ideal for applications where multiple servos draw significant current simultaneously, such as in larger scale models or systems with high-torque servo motors. The twenty-two AWG wire can safely handle currents up to approximately three to four amperes, making it the preferred choice for main servo runs and applications where power delivery consistency is paramount. In contrast, twenty-six AWG wire is thinner and lighter, with a current capacity of roughly one to two amperes, making it suitable for shorter extension runs, auxiliary control channels, or lighter-duty applications where weight savings are important.
The decision between these two gauges should be informed by several practical considerations. First, evaluate the total current draw of all servos connected to your extension cable. High-performance servos with metal gears and digital control circuits consume more power than standard analog servos, particularly during rapid movements or under load. If you are building a custom drone with multiple servo-driven control surfaces or a large-scale RC aircraft with numerous servos, twenty-two AWG is the safer and more reliable choice. Second, consider the length of the extension cable. Longer cables experience greater voltage drop due to increased resistance, so twenty-two AWG becomes increasingly important as cable length increases. A short extension of just a few inches can tolerate twenty-six AWG, but extensions exceeding twelve inches should use twenty-two AWG to maintain stable voltage delivery to your servos.

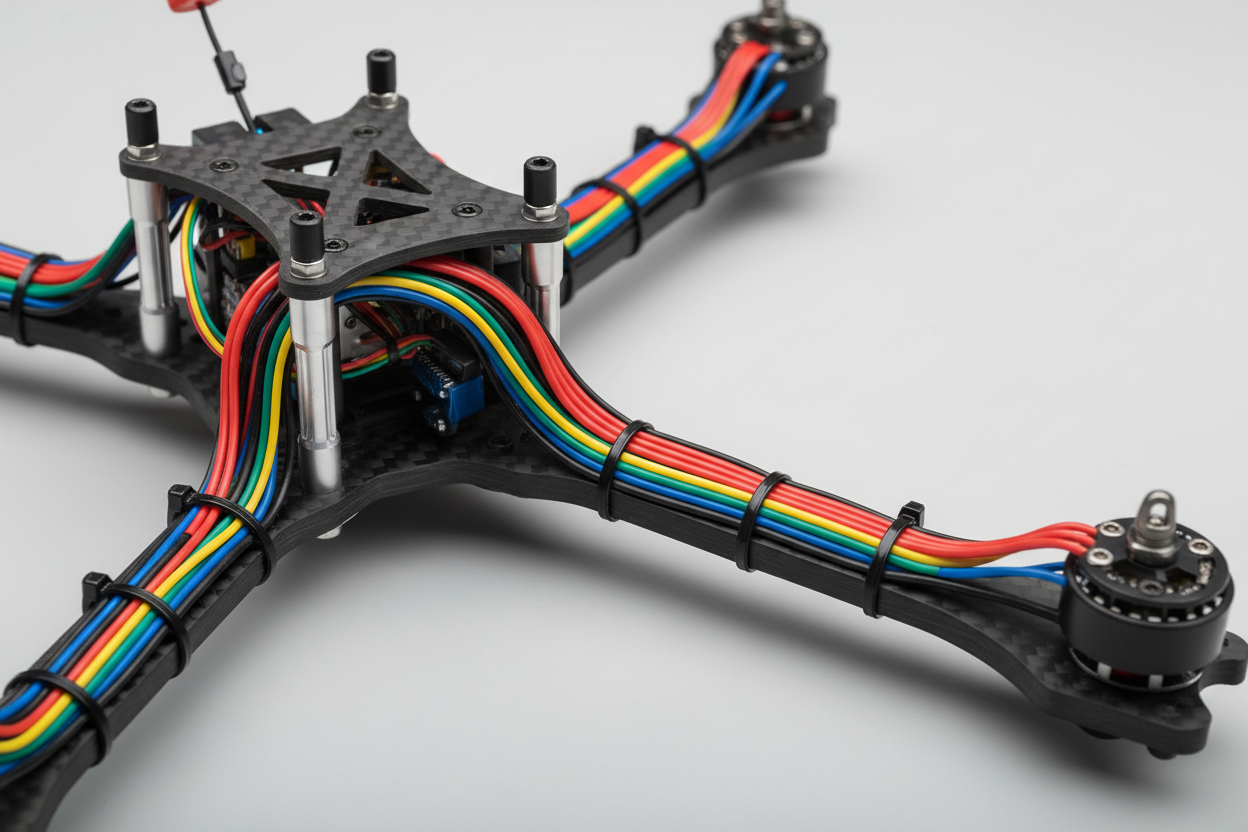

Proper installation of servo extension cables requires careful attention to routing and environmental protection. Always route your cables away from heat sources such as motor windings, battery packs during charging, and exhaust areas in combustion-powered models. Heat exposure degrades the insulation material over time, increasing the risk of short circuits and electrical failures. When planning your cable path, identify the coolest route through your model's chassis or airframe, even if it requires slightly longer cable runs. Use cable ties or spiral wrap to bundle extension cables together with other wiring, which helps organize your build and provides some thermal mass that dissipates heat more effectively than isolated cables.
Securing connections is equally important as selecting the correct wire gauge. At each connection point where your servo extension cable meets a servo connector or receiver port, ensure that the connection is mechanically sound and electrically reliable. Heat shrink tubing is an excellent solution for protecting solder joints and connector interfaces from moisture, vibration, and accidental contact. After soldering your servo connectors or splicing wires, slide appropriately sized heat shrink tubing over the joint and apply gentle heat using a heat gun or soldering iron to shrink the tubing tightly around the connection. This creates a waterproof seal that prevents corrosion and maintains consistent electrical contact even in humid or wet flying conditions.
Safety clips and strain relief devices provide mechanical protection that prevents cables from being pulled loose during assembly, disassembly, or flight operations. Many modern servo connectors include integrated locking tabs, but adding an additional safety clip or velcro strap near the connection point offers extra security. For drone electronics installations where vibration is a constant concern, consider using adhesive-backed cable clips to anchor your servo extension cables to the frame at regular intervals. This prevents cables from moving excessively, which can cause fatigue failure in the wire strands and eventual breakage. The combination of proper wire gauge selection, heat shrink protection, and mechanical securing creates a robust servo extension cable installation that will serve reliably across countless flights and field sessions.
When sourcing RC spare parts and servo connectors for your extension cables, verify that the connectors match your receiver and servo specifications. JR-style connectors are among the most common standards in the hobby, but Futaba, Spektrum, and other manufacturers use slightly different pin configurations. Mixing incompatible connectors can result in reversed polarity, which damages servos instantly, or loose connections that cause intermittent control loss. Always test your completed servo extension cables with a multimeter before installing them in your model, checking for continuity across each pin and confirming that no accidental shorts exist between adjacent pins. This simple verification step prevents costly damage to your drone electronics and ensures that your RC scale models perform predictably from the moment you power them up.
