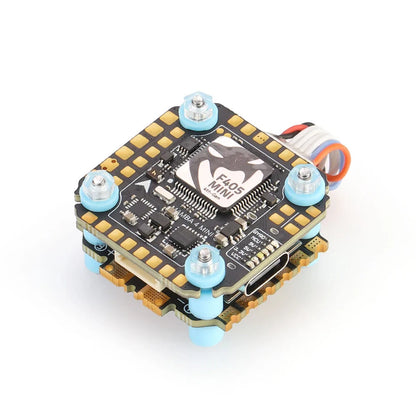

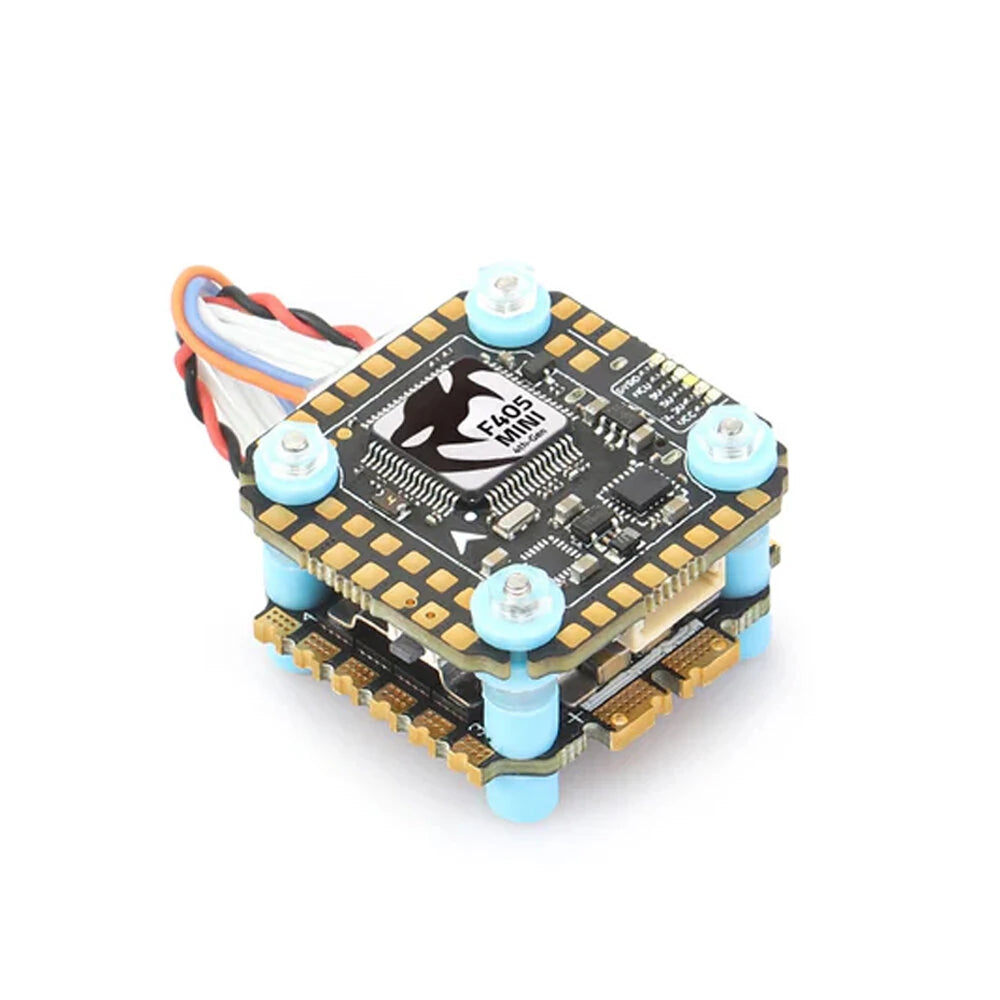

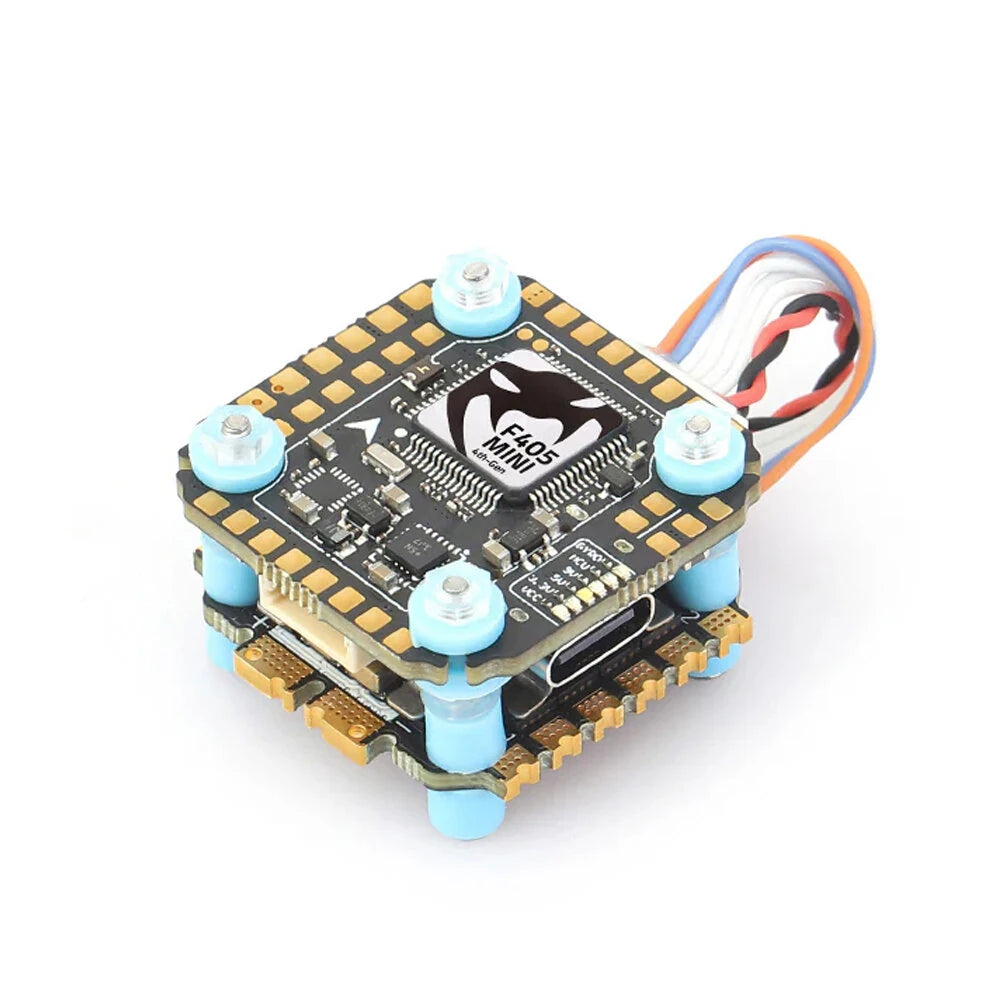

20x20mm MAMBA MK4 F405 MINI Flight Controller & F40 BLS MINI ESC / Reactor 44A MINI 8bit ESC Stack for RC FPV Racing Drones

Model

Specification

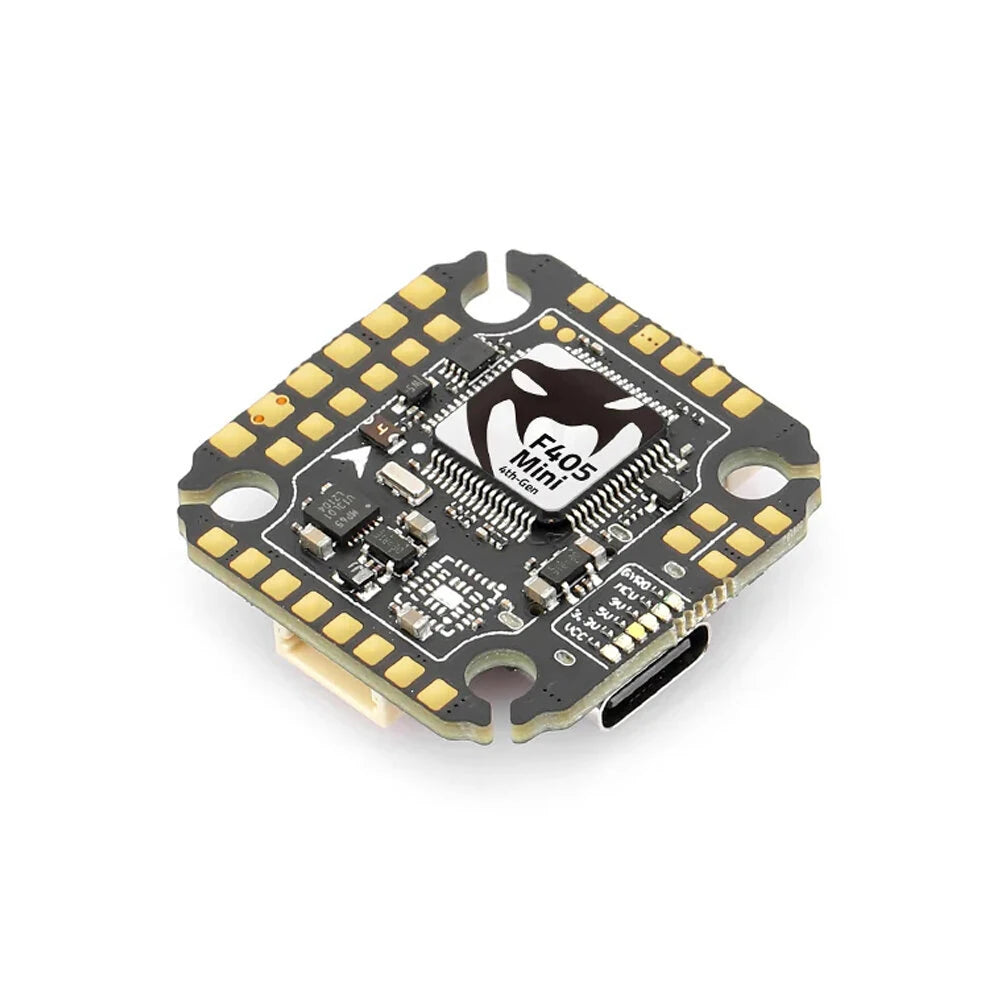

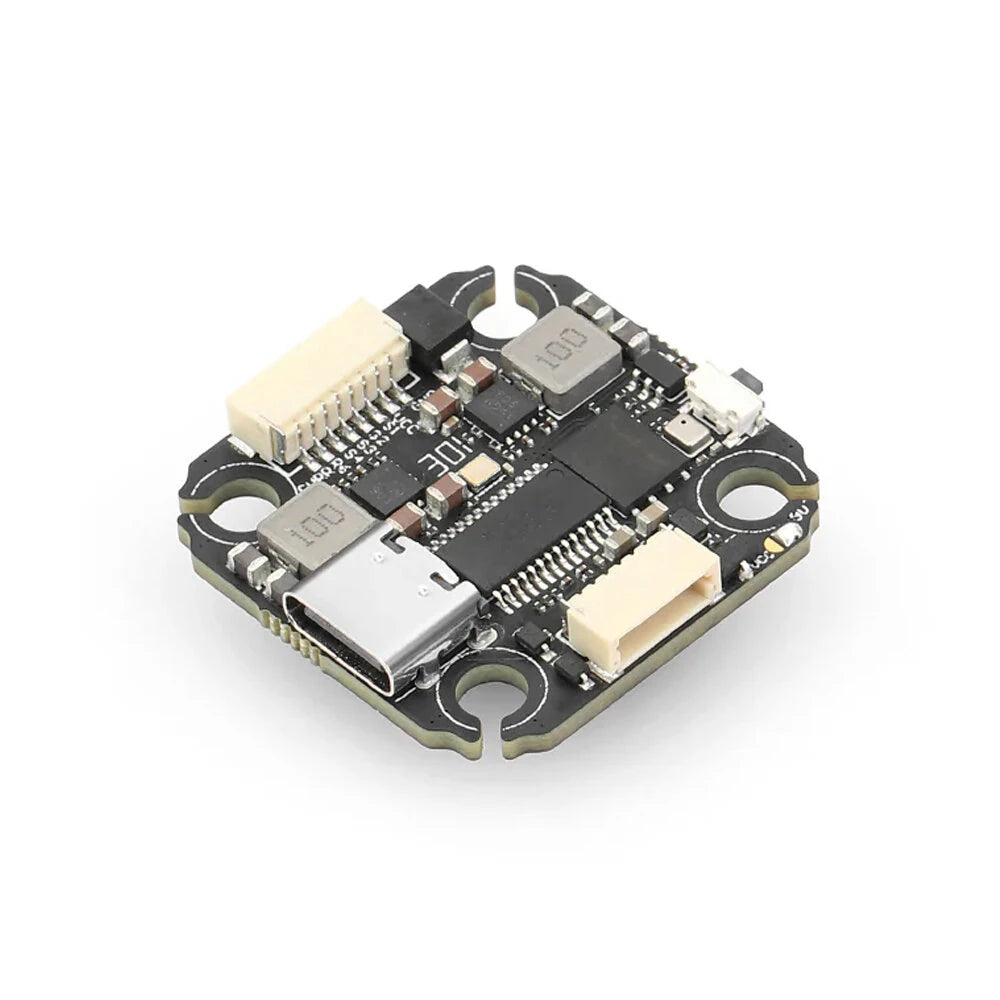

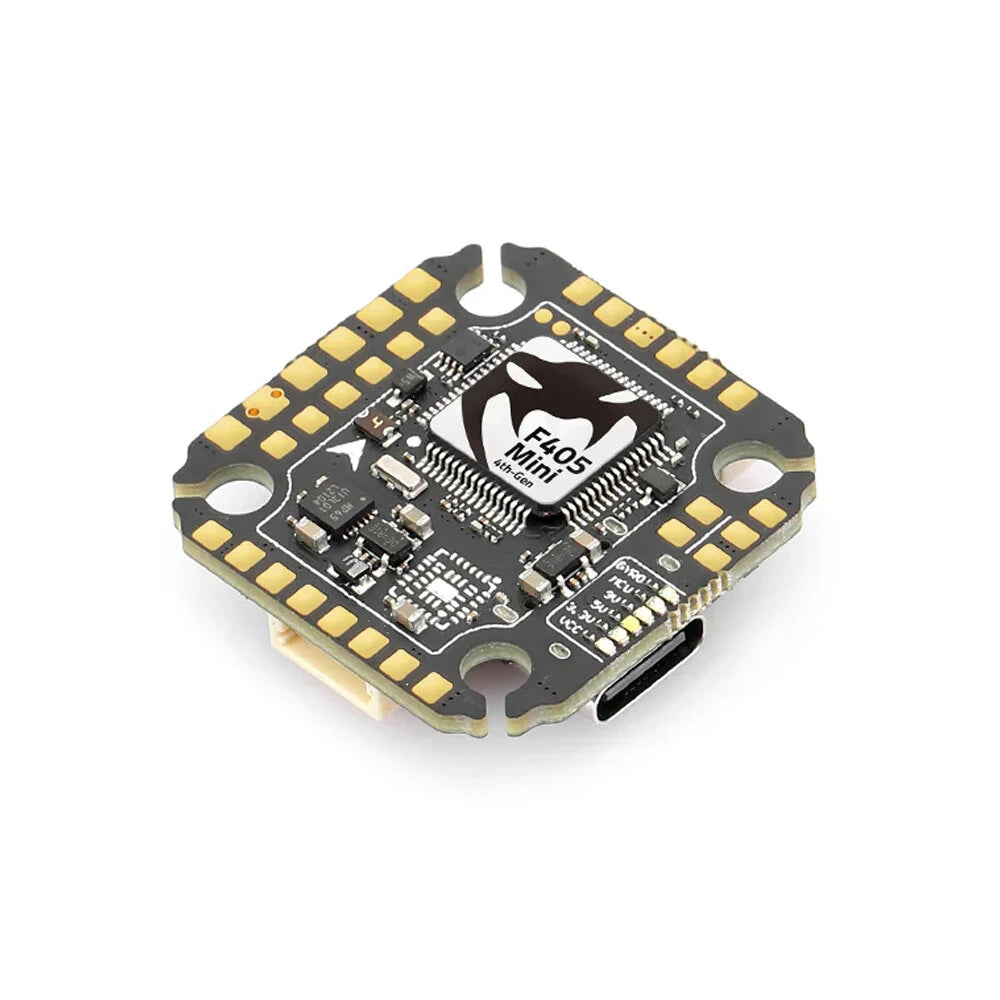

MAMBA MK4 F405 MINI Flight Controller

Model: MAMBA MK4 F405 MINI Flight Controller

MCU: STM32F405

Frequency: 168MHz

Gyro: Version: ICM42688P

OSD: AT7456E

Blackbox: 16M Memory

Barometer: SPL06

Uarts: 6 Set

Receiver: TBS/SBUS/IBUS/DSM

RSSI Pad: /

I2C: Yes

F.Port: Yes

Buzzer Pad: Yes

Curr Pad: Yes

ESC Signal: 6 Set

BEC 3.3V: 0.5A

BEC 5V: 2.5A

BEC 9V: 2A

MB Led: /

BF Led: Yes

Air Unit Port: Yes

Wifi: /

VTX Switch: Yes

BEC Protection: Yes

Receiver Protection: Yes

TVS Protection: Yes

Target: ICM42688P:MAMBA F405_2022B

Input: 6S Lipo

Soft Ware: Betaflight

Mounting: 20.0x20.0mm, Ø 3/Ø 2

Size: 29.0x29.5x6.5mm

Weight: 6.0g

MAMBA Reactor 44A ESC

Model: MAMBA Reactor 44A ESC

Input Voltage: 4~6S Lipo (16.8V~25.2V)

Continue Current:44A×4

Burst Current:54A (10S)

BEC: No

Target: BLHeli_32 MAMBA5_Reactor_44

SOFT: DSHOT300/600/1200/MAX2400（FETTEC）

PWM:24~128K

Mounting size: 20mm,M2

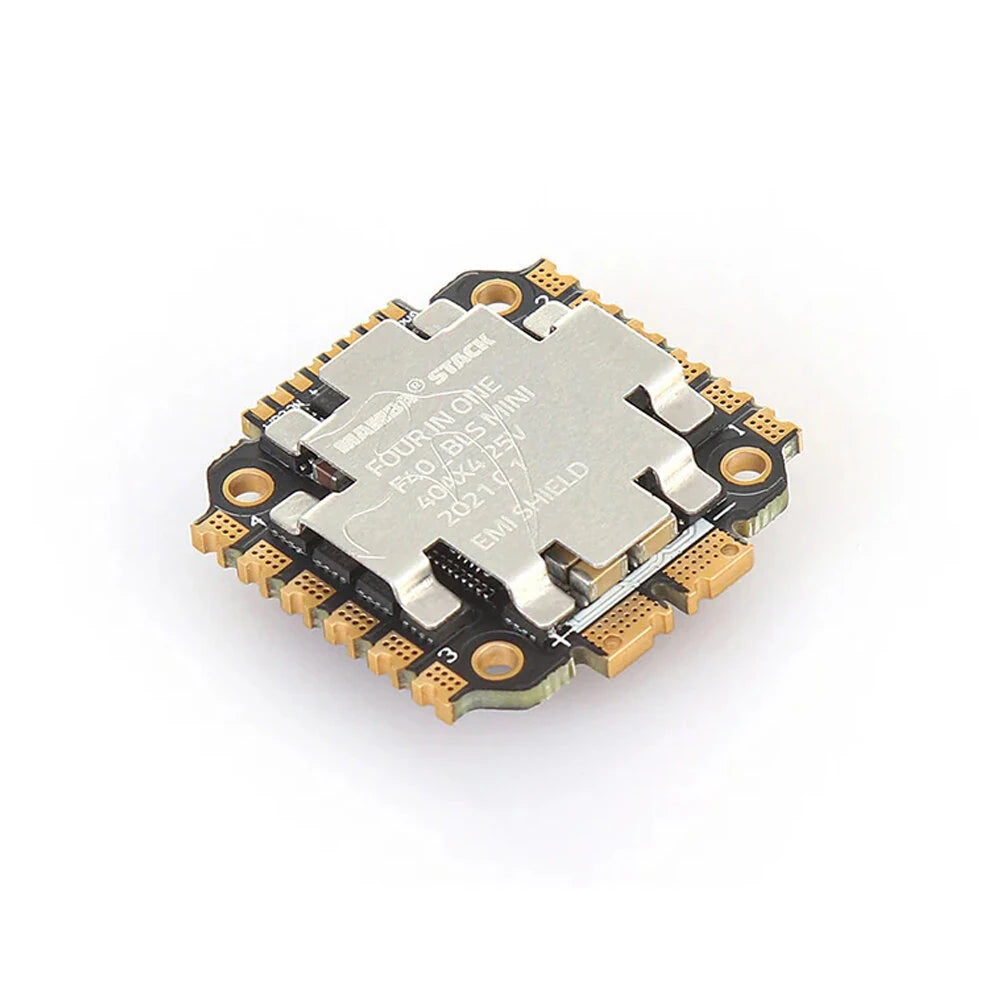

F40_BLS MINI ESC

Model: F40 BLS MINI ESC

Input Voltage: 2~6S Lipo (8.4V~25.2V)

Continue Current: 40A×4

Burst Current: 45A (10S)

BEC: No

Target：BLHeli_S CH40

SOFT: Dshot300/600

TVS Protection: Yes

Mounting: 20mm, M2
