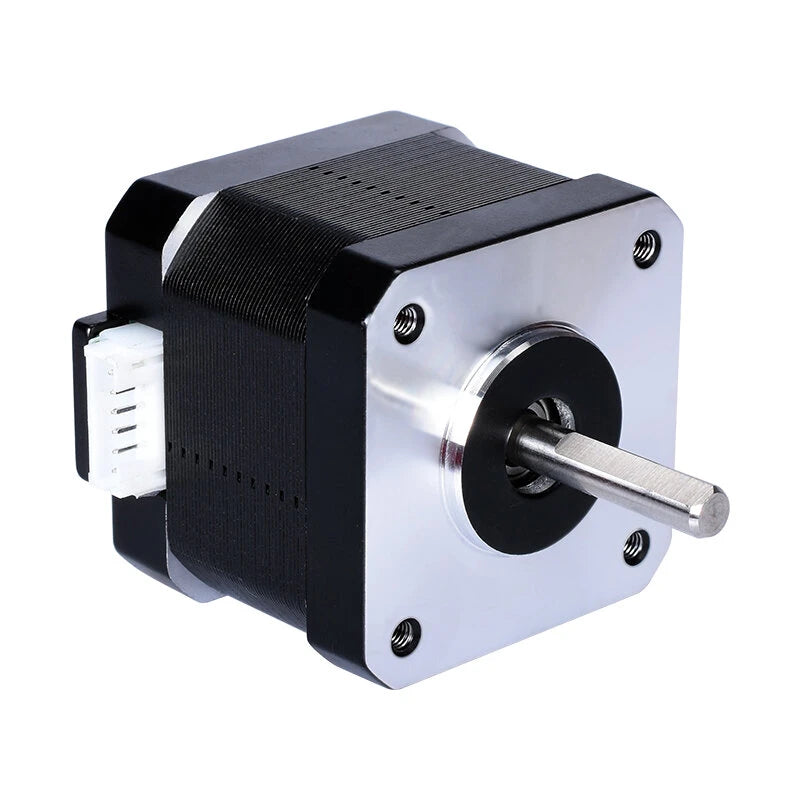

17HS4401-S 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead Motor for 3D printer CNC Laser Engraving Machine
17HS4401-S 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead Motor for 3D printer CNC Laser Engraving Machine
Regular price
$14.99 USD
Regular price
$23.36 USD
Sale price
$14.99 USD
Taxes included.
In stock
Quantity
Couldn't load pickup availability
Specification:
Electrical Specifications:
General Specification:
Features:
Package Included:
1 X 17HS4401-S Stepper Motor
| Model | 17HS4401-S |
| Phase | 2 |
| Step Angle | 1.8° |
| Motor Size | 42 x 40mm |
| Shaft | 'D' shaft 22 x Ф5mm |
| Outlet way | '4' plug line |
| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Current |
Resistance /Phase |
Inductance /Phase |
Holding Torque | Detent Torque |
Inertia Of Rotor |
Lead |
| ( °) | (L)mm | (A) | (Ω) | (mH) | (N.cm) | (N.cm) | (G. cm²) | (No.) | |
| 17HS4401-S | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | 4 |
General Specification:
| Precision angle step | ±5% (full step, no charge) |
| Resistance accuracy | ±10% |
| Precision inductance | ±20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20°)-(+ 50°) |
| Insulation resistance | 100MΩ Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Black surface treatment.
5. Black surface treatment.
1 X 17HS4401-S Stepper Motor
