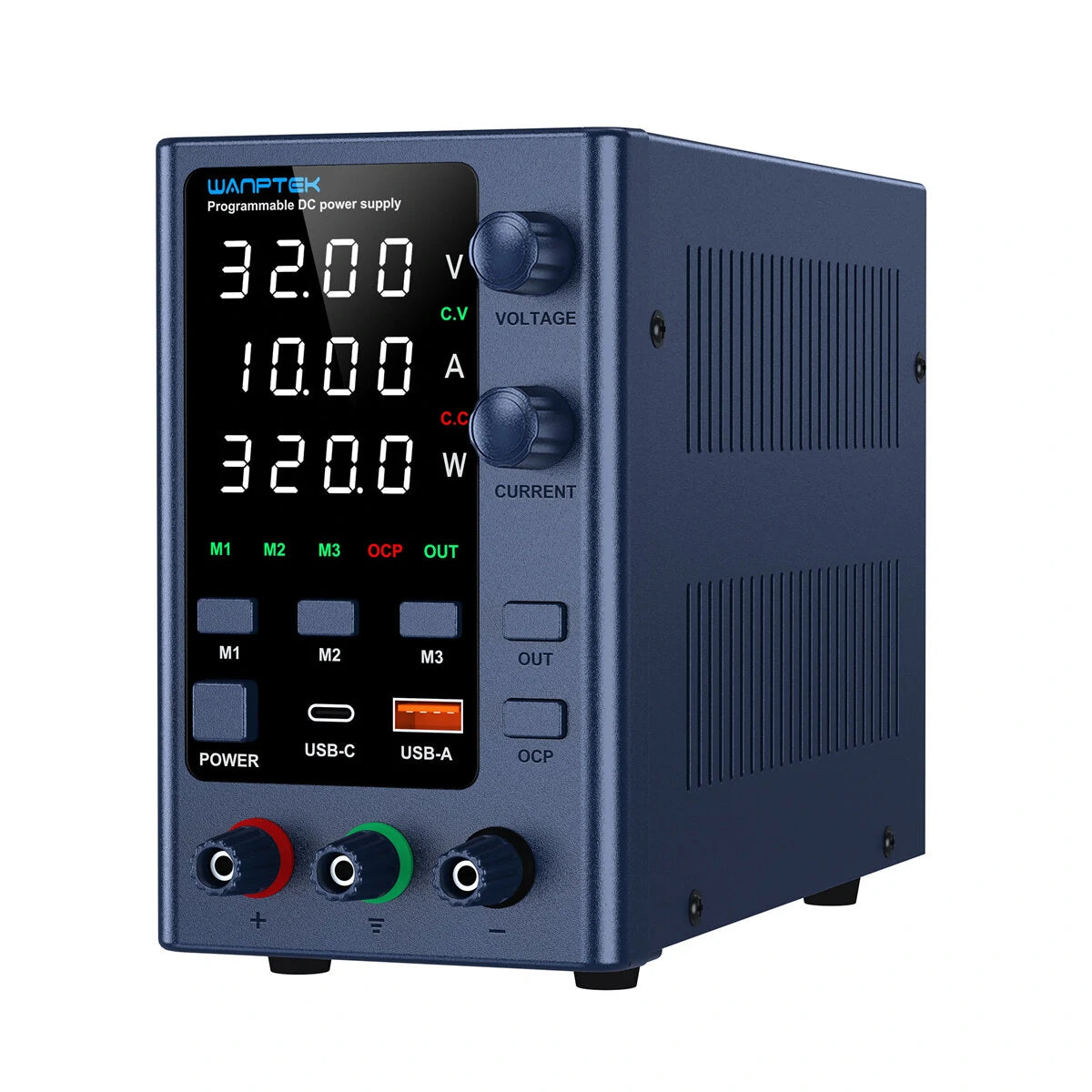

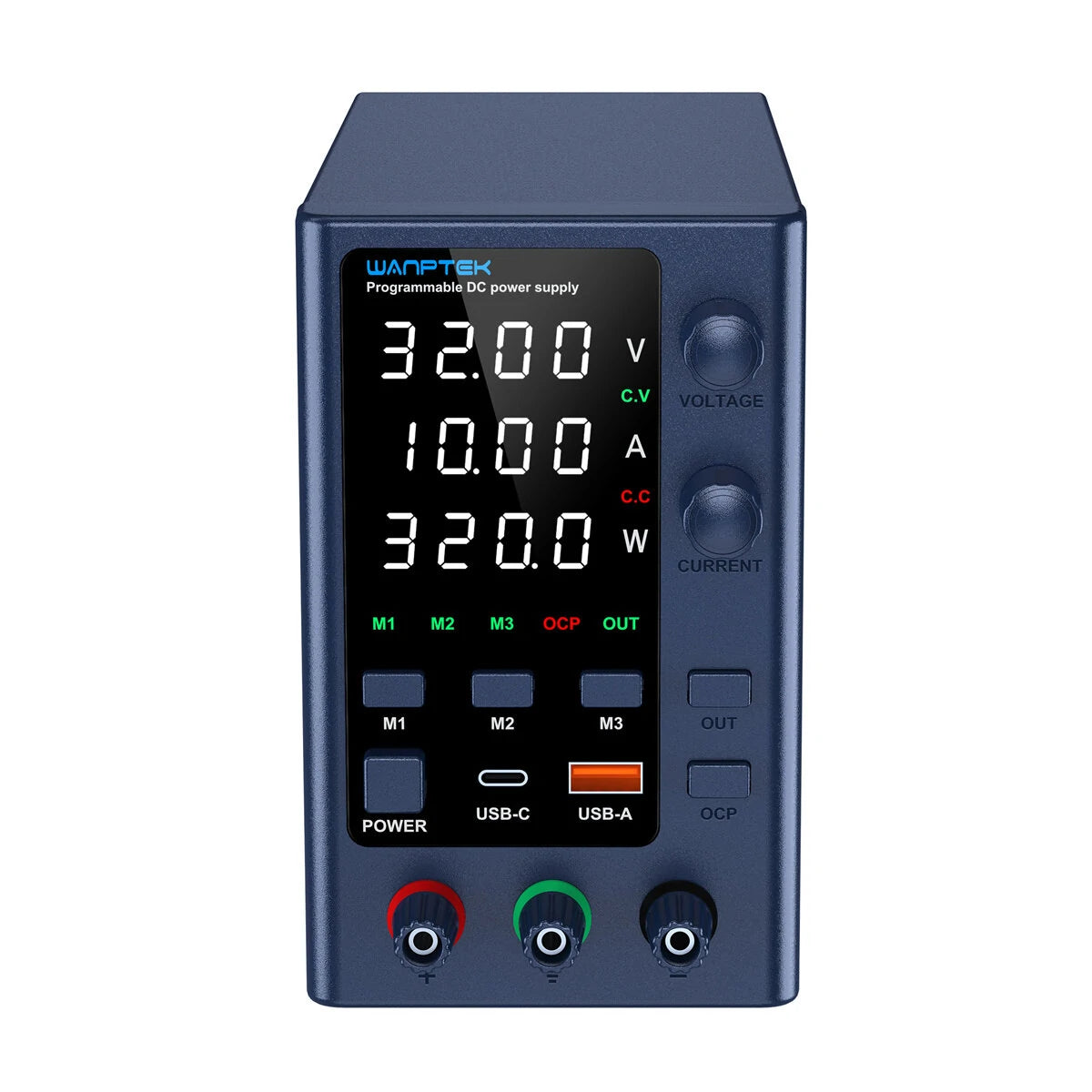

WANPTEK Regulated Power Supply EPS1602 0-160V Voltage 0-2A 0-10A Current (Multiple voltage options) Multi-Function Protection Superior Stability Digital Display ideal for Diverse Electronics Application EPS3205/EPS3210/EPS6205/EPS1203/EPS1602
WANPTEK Regulated Power Supply EPS1602 0-160V Voltage 0-2A 0-10A Current (Multiple voltage options) Multi-Function Protection Superior Stability Digital Display ideal for Diverse Electronics Application EPS3205/EPS3210/EPS6205/EPS1203/EPS1602
In stock
Couldn't load pickup availability
Features:
mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>
[Multi-Function] This regulated power supply features output voltage from 0~160V and output currents of 0~10A, ideal for various applications.mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>

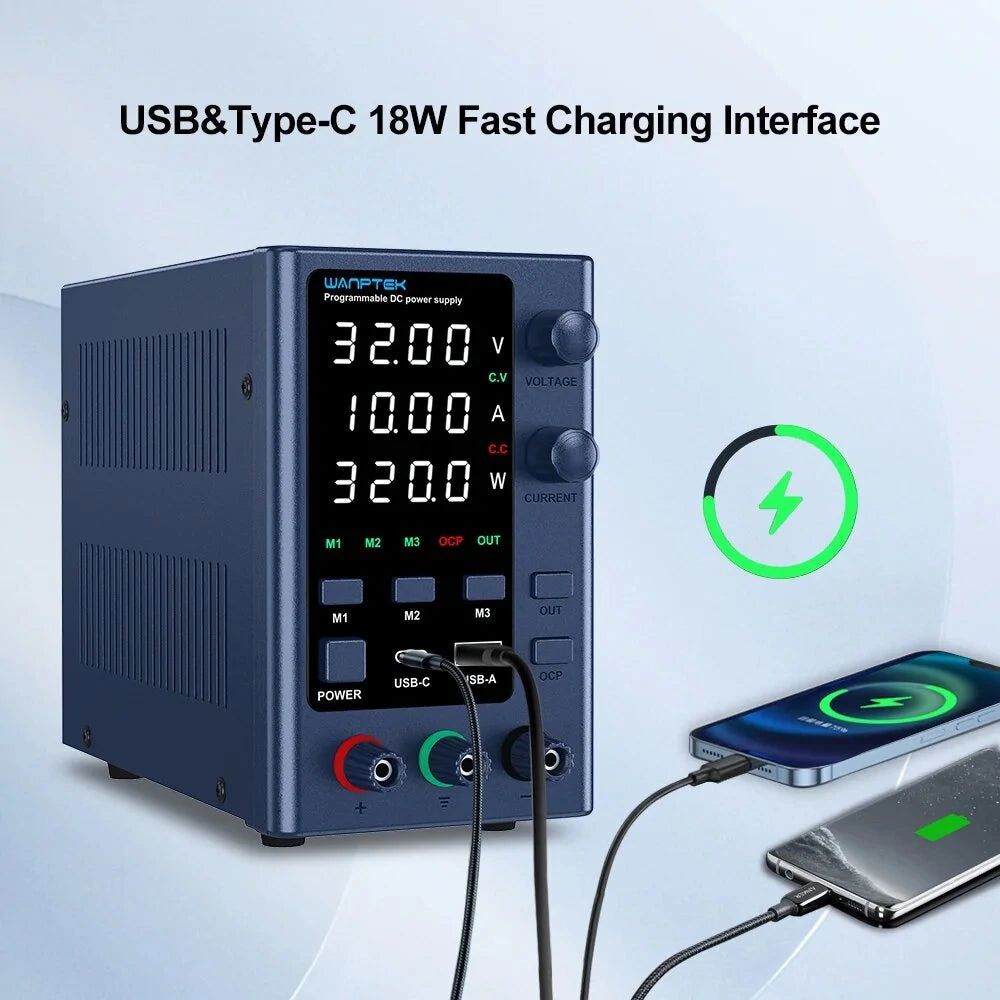

[Auxiliary Output Services] It possesses advanced technology like Output, OCP short circuit protection, data storage, and a USB-A/Type-C fast charging interface to keep your connected devices safe and protect data.mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>
mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>[Operates in Varying Conditions] Built to work with a temperature range of 0℃ ~ 40℃ and a relative humidity of less than 80%. It promises efficiency and functionality in diverse environments.mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>
mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>[Superior Stability] Stable performance is one of the main features of this power supply, thanks to its voltage stability of ≤ 0.1%+3mV and current stability of ≤ 0.1%+3mA.mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>

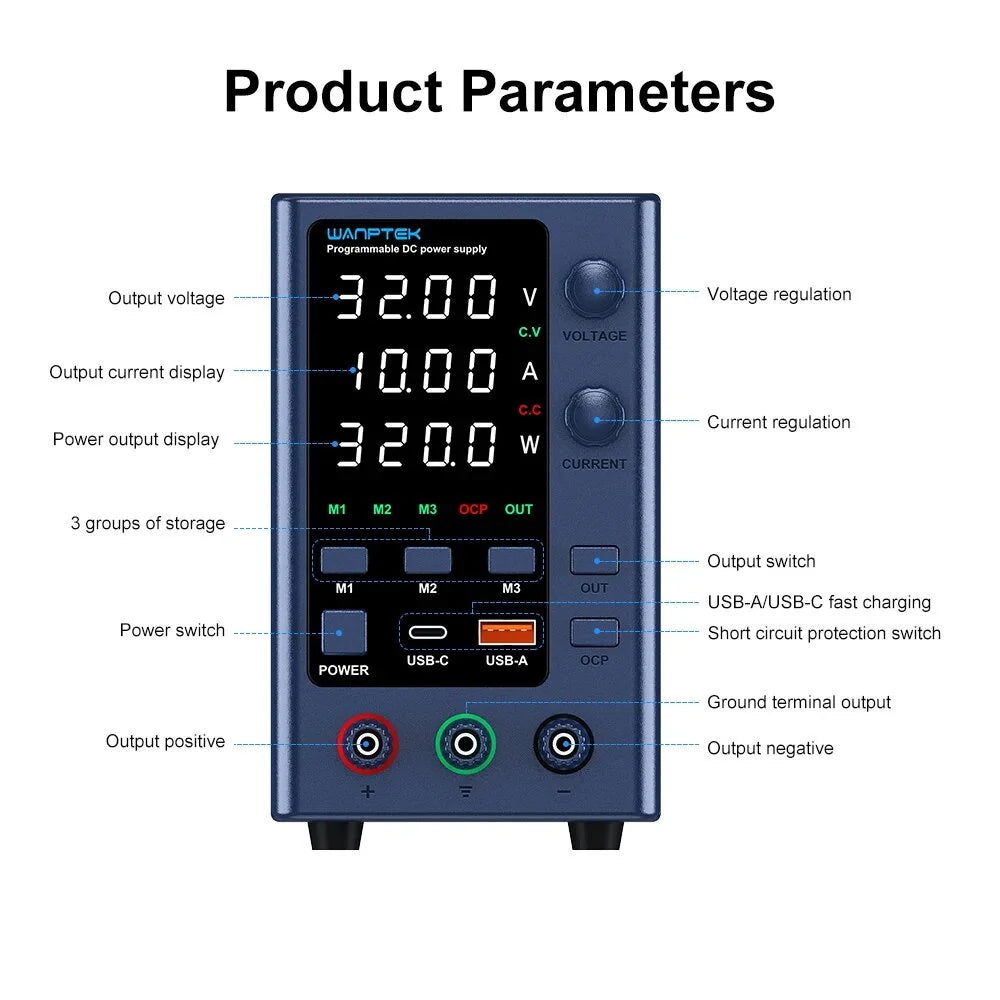

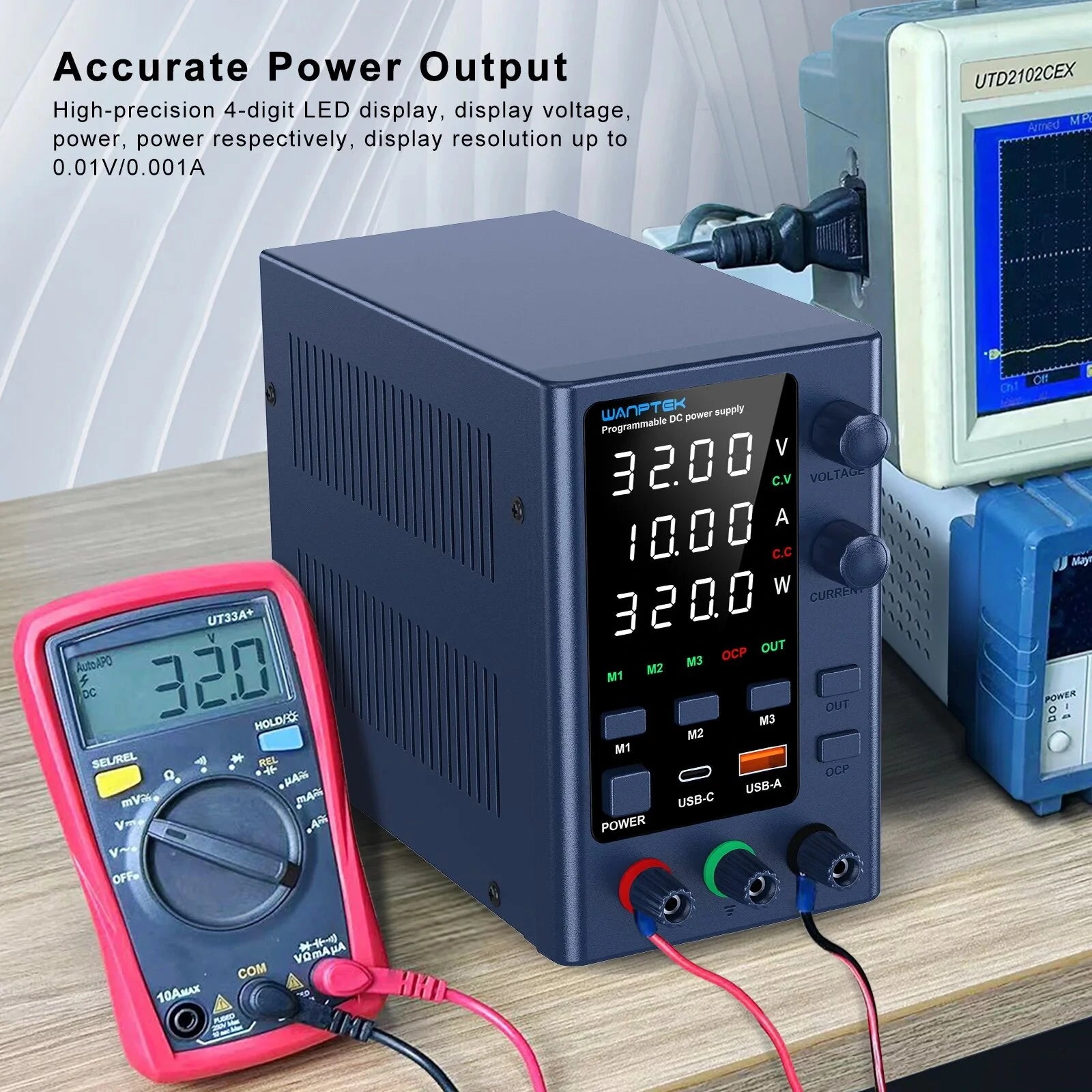

[Accurate Digital Display] The four-digit Nixie tube and three-window display give you an accurate reading of voltage and currents. Display accuracy is 0.5%+3 words.
mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>

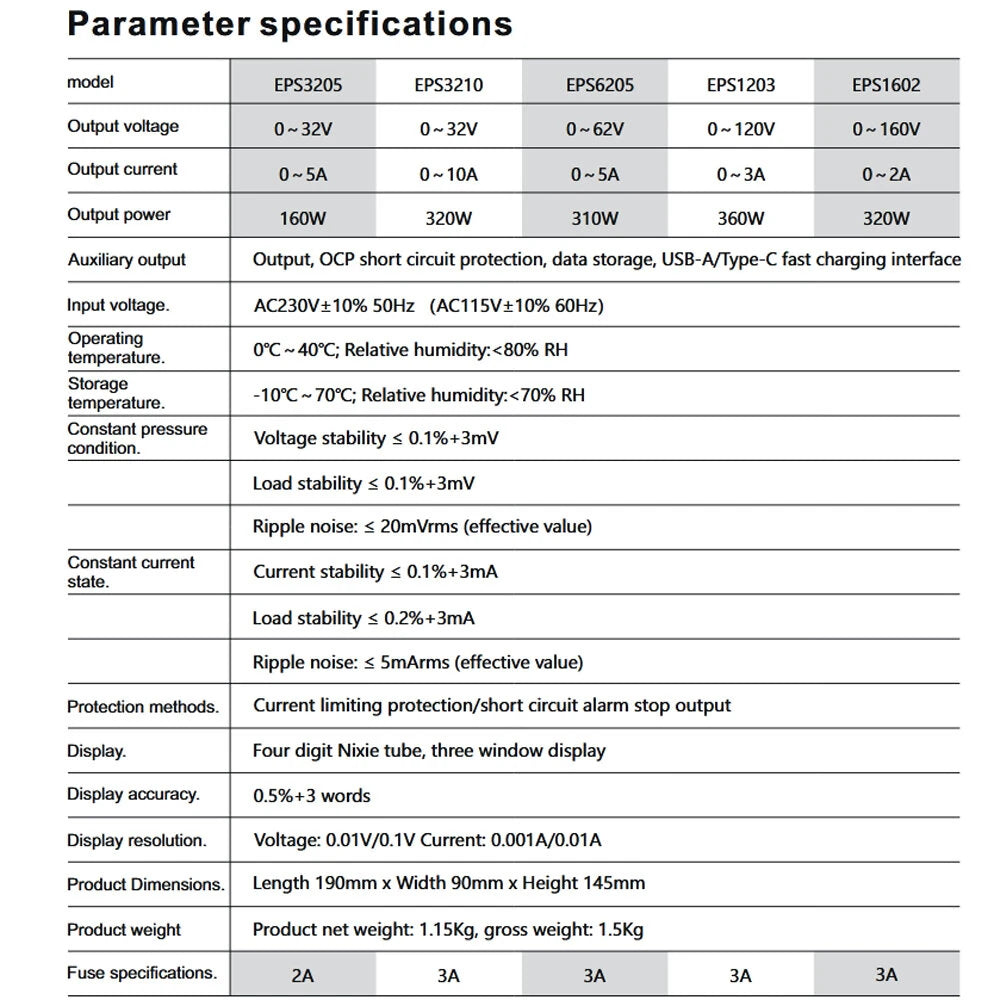

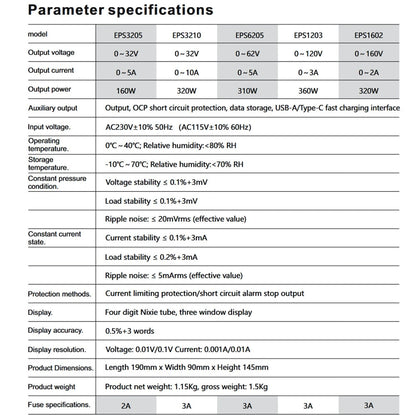

Specifications:mso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
mso-font-kerning:1.0000pt;'>
mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
Model |
EPS3205 |
EPS3210 |
EPS6205 |
EPS1203 |
EPS1602 |
Output voltage |
0 ~ 32V |
0~32V |
0~62V |
0~120V |
0~160V |
Output current |
0 ~ 5A |
0~10A |
0~5A |
0~3A |
0~2A |
Output power |
160W |
320W |
310W |
360W |
320W |
Auxiliary output |
Output, OCP short circuit protection, data storage, USB-A/Type-C fast charging interface |
||||
Input voltage |
AC230V±10% 50Hz (AC115V±10% 60Hz) |
||||
Operating temperature |
0℃ ~ 40℃ |
||||
Relative humidity |
<80% RH |
||||
Storage temperature |
-10℃ ~70℃ |
||||
Relative humidity |
<70% RH |
||||
