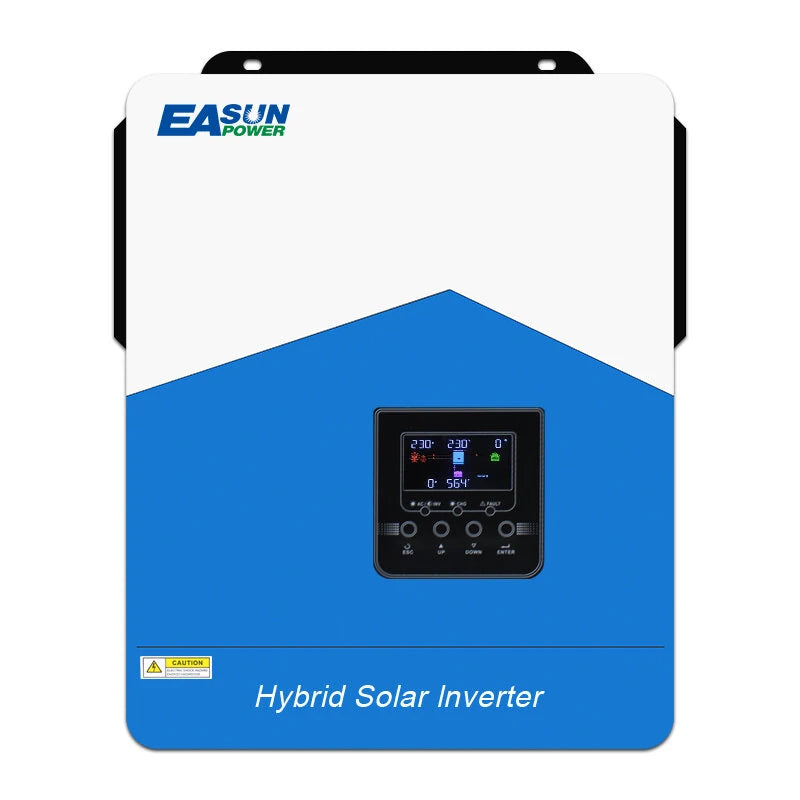

[EU Direct] EASUN POWER Solar Hybrid Inverter 4200W 220V MPPT 120A Solar Charger PV 6200W 450VDC Input Pure sine wave inverter Support With WIFI-GPRS Remote Monitoring LCD, For Lead-Acid, Lithium Battery and LifePo4, EASUNPOWER ISolar SMH III 4.2KW--WIFI

[EU Direct] EASUN POWER Solar Hybrid Inverter 4200W 220V MPPT 120A Solar Charger PV 6200W 450VDC Input Pure sine wave inverter Support With WIFI-GPRS Remote Monitoring LCD, For Lead-Acid, Lithium Battery and LifePo4, EASUNPOWER ISolar SMH III 4.2KW--WIFI

$319.89 USD
$319.89 USD $319.89 USD
Sale Sold out
Taxes included.

In stock
Specifications:
Brand Easun Power
MODEL ISolar-SMH-III-4.2KW
Phase 1-phase
Maximum PV lnput Power 6200W
Rated Output Power 4200W/4200VA
Maximum Solar Charging Current 120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/lnitial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195-253VAC
Nominal Output Current 18.2A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 4200W
Maximum Main Load 4200W
Maximum Second Load(battery mode) 1400W
Maximum Load Cut Off Voltage 26VDC
Maximum Load Return Voltage 27VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 59-61±1Hz
Maximum AC input Current 24.7A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Efficiency (DC to AC) 94%
BATTERY&CHARGER
Nominal DC Voltage 24VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A
Maximum Sotar+AC Charging Current 120A
MIXED OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/lnitial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60-450VDC
Maximum lnput Current 1/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195-253VAC
Nominal Output Current 18.2A
AC INPUT
AC Start-up VoltagelAuto Restart Voltage 120-140VAC/180VAC
Acceptable lnput Voltage Range 90-280VAC or 170-280VAC
MaximumAC Input Current 24.7A
Maximum Charging Current 100A
GENERAL
PHYSICAL
Dimension ,H*W*D(mm) 420*350*110
Cartoon Dimension ,H*W*D(mm) 500*415*180
Net Weight (kgs) 8
Gross Weight(kgs) 9
INTERACE

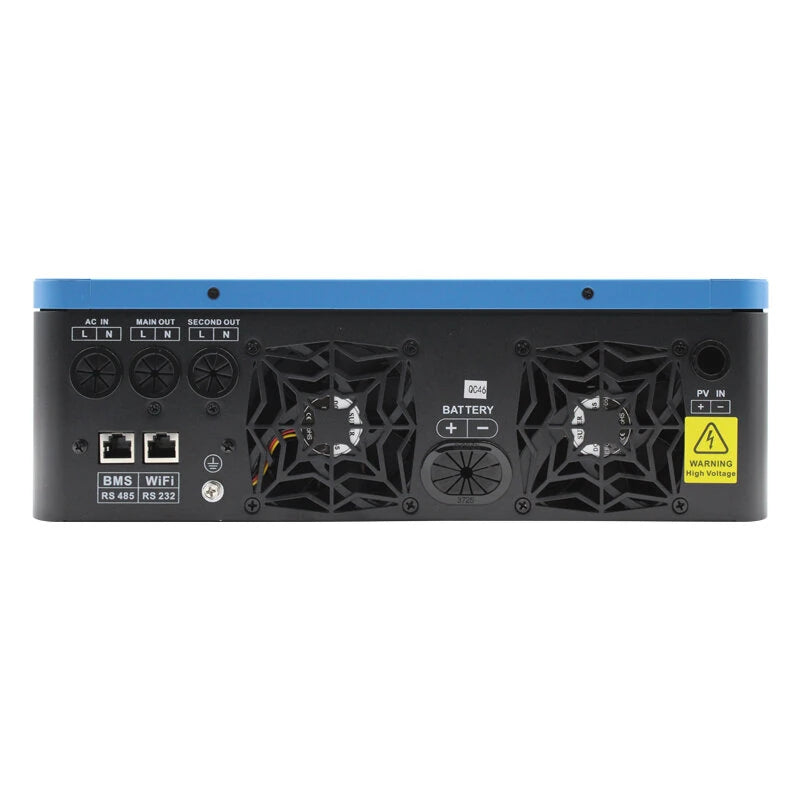

Communication Port RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non~condensing)
Operating Temperature -10℃～50℃
STANDARD
Compliance Safety CE

Features:

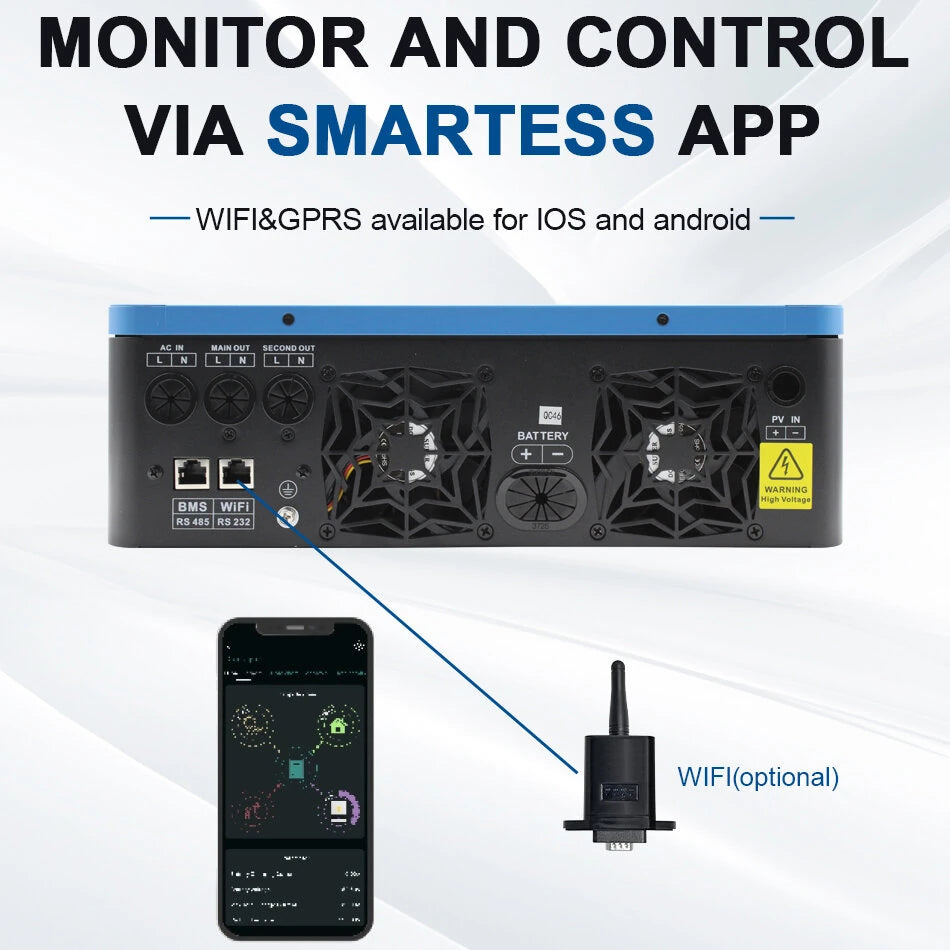

1.Pure sine wave solar inverter(on/off Grid)2.Output power factor 1.03.Inverter can run without battery4.Built-in Lithium battery automatic activation5.Dual communication ports for Battery communication and Wifi communication6.Builit-in 120A MPPT Solar charge:max 6200W7.High PV input voltage range(60~500VDC)8.Built-in anti-dust kit for harsh environment9.Smart battery charge design to optimize battery life10.WIFI&GPRS available for lOS and Android11.Dual output


Note：

Users who require grid connection functionality, please note: This device supports connection to the electrical grid but does not come with a grid-tie certificate.


Package includes:

1 x Inverter Units1 x User Manual1 x Wifi Plug
