• [EU Direct] EASUN POWER 6200W/4200W Solar Hybrid Inverter 220V 120A MPPT Solar Charger PV 450VDC Input Pure Sine Wave Support with WIFI-GPRS Remote Monitoring LCD For Lead-Acid, Lithium Battery and LifePo4, EASUNPOWER ISolar SMH III 4.2KW/6.2KW--WIFI
1 10

Shopinyon

[EU Direct] EASUN POWER 6200W/4200W Solar Hybrid Inverter 220V 120A MPPT Solar Charger PV 450VDC Input Pure Sine Wave Support with WIFI-GPRS Remote Monitoring LCD For Lead-Acid, Lithium Battery and LifePo4, EASUNPOWER ISolar SMH III 4.2KW/6.2KW--WIFI

[EU Direct] EASUN POWER 6200W/4200W Solar Hybrid Inverter 220V 120A MPPT Solar Charger PV 450VDC Input Pure Sine Wave Support with WIFI-GPRS Remote Monitoring LCD For Lead-Acid, Lithium Battery and LifePo4, EASUNPOWER ISolar SMH III 4.2KW/6.2KW--WIFI

$314.99 USD
$314.99 USD $314.99 USD
Sale Sold out
Taxes included.

In stock

Power

Specifications:

Brand Easun Power
MODEL ISolar-SMH-III-6.2KW ISolar-SMH-III-4.2KW
Phase 1-phase
Maximum PV lnput Power 6500W 6200W
Rated Output Power 6200W/6200VA 4200W/4200VA
Maximum Solar Charging Current 120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/lnitial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/22A 1/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195-253VAC
Nominal Output Current 27.0A 18.2A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 6200W 4200W
Maximum Main Load 6200W 4200W
Maximum Second Load(battery mode) 2067W 1400W
Maximum Load Cut Off Voltage 52VDC 26VDC
Maximum Load Return Voltage 54VDC 27VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable lInput Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ
Maximum AC input Current 36.4A 24.7A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/22A  1/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Efficiency (DC to AC) 94%
BATTERY&CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A
Maximum Sotar+AC Charging Current 120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/lnitial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60-450VDC
Maximum lnput Current 1/22A 1/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195-253VAC
Nominal Output Current 27A 18.2A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable lnput Voltage Range 90-280VAC or 170-280VAC
MaximumAC Input Current 36.4A 24.7A
Maximum Charging Current 100A
GENERAL
PHYSICAL
Dimension ,H*W*D(mm) 420*350*110
Cartoon Dimension ,H*W*D(mm) 500*415*180
Net Weight (kgs) 8.9 8
Gross Weight(kgs) 10 9
INTERACE

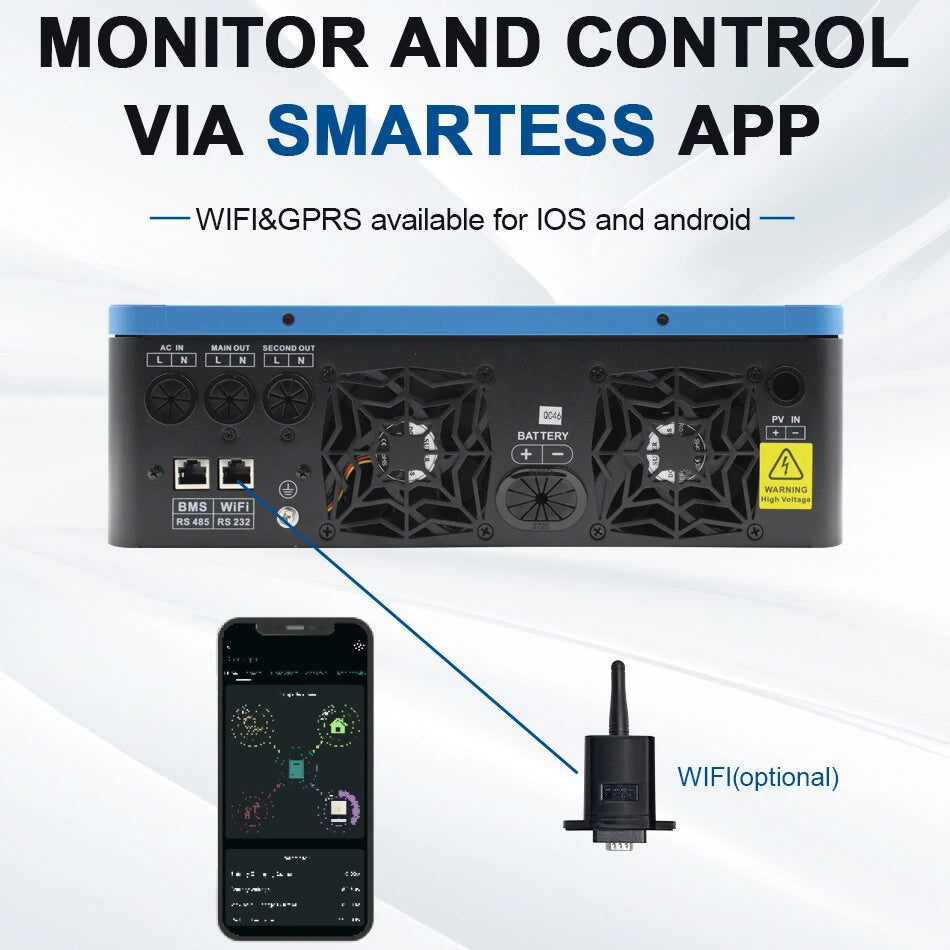

Communication Port RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non~condensing)
Operating Temperature -10℃～50℃
STANDARD
Compliance Safety CE

Features:

1.Pure sine wave solar inverter(on/off Grid)2.Output power factor 1.03.Inverter can run without battery4.Built-in Lithium battery automatic activation5.Dual communication ports for Battery communication and Wifi communication6.Builit-in 120A MPPT Solar charge:max 6500W(6.2KW)，max 6200W(4.2KW)7.High PV input voltage range(60~500VDC)8.Built-in anti-dust kit for harsh environment9.Smart battery charge design to optimize battery life10.WIFI&GPRS available for lOS and Android11.Dual output


Note:
1.The inverter contains WIFI module, which can be matched with the inverter and does not need to be purchased separately.2.Users who require grid connection functionality, please note: This device supports connection to the electrical grid but does not come with a grid-tie certificate.


Package includes:

1 x Inverter Units
1 x User Manual
1 x Wifi Plug
