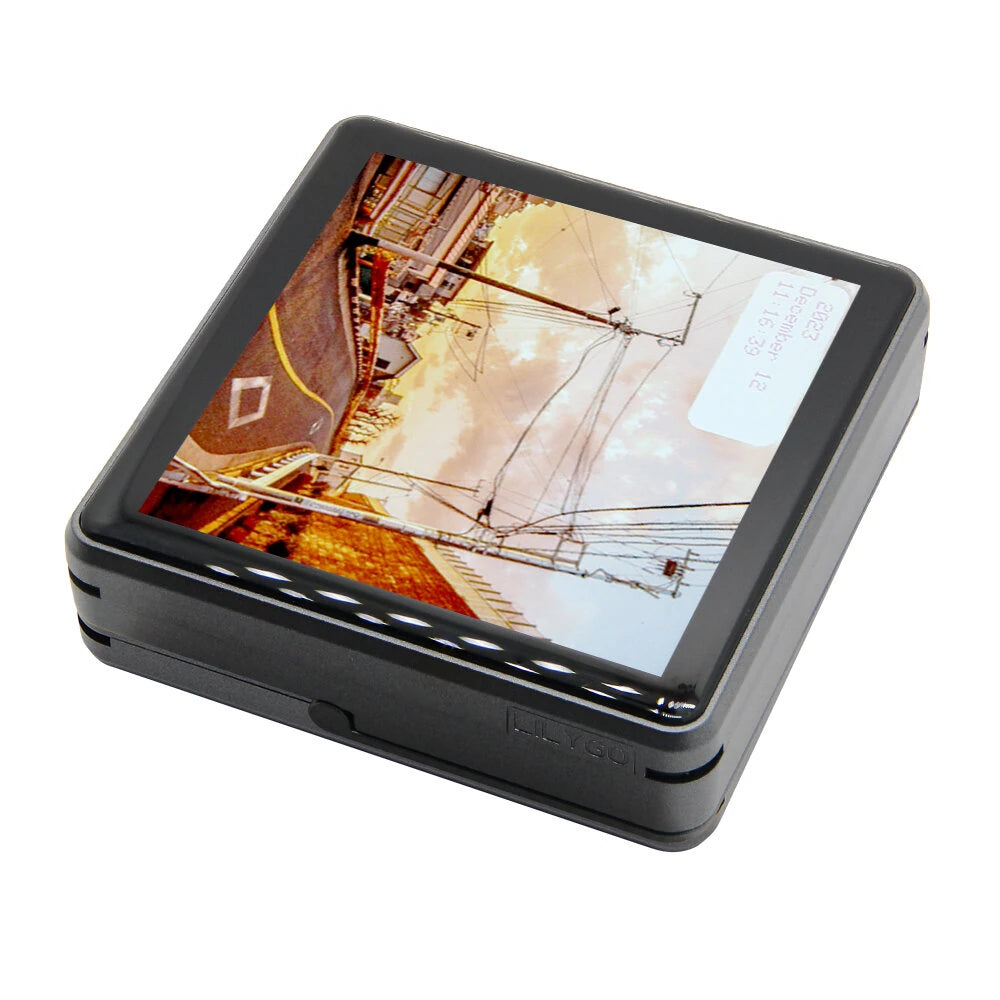

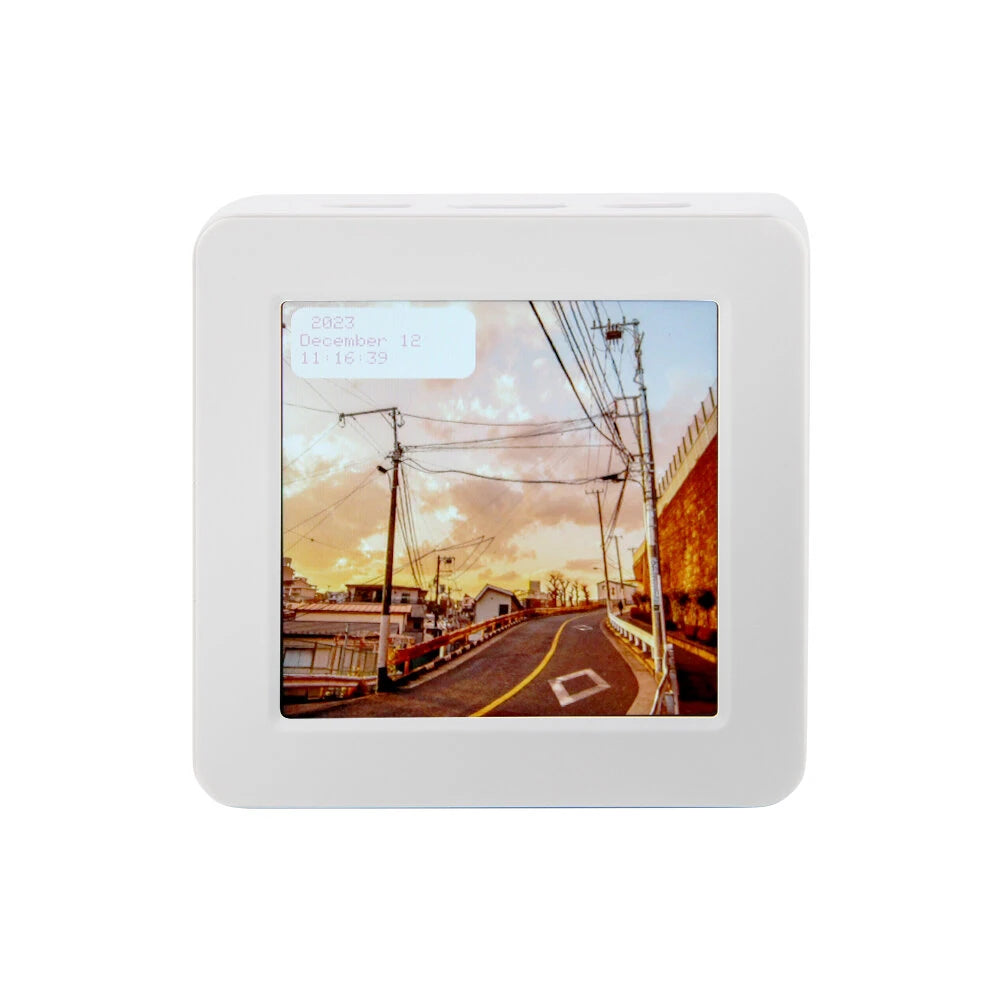

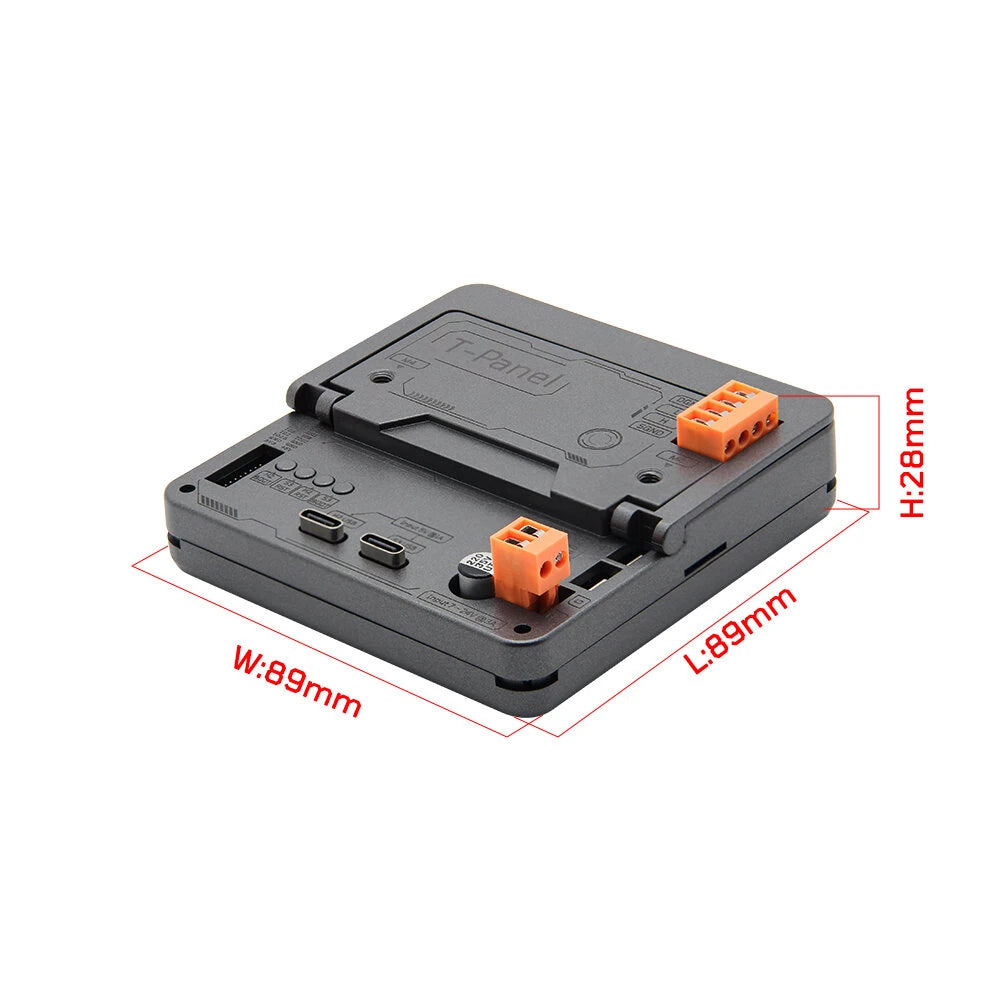

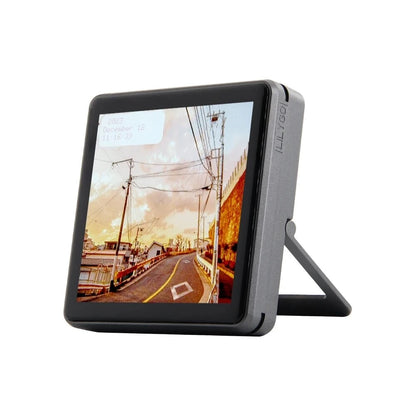

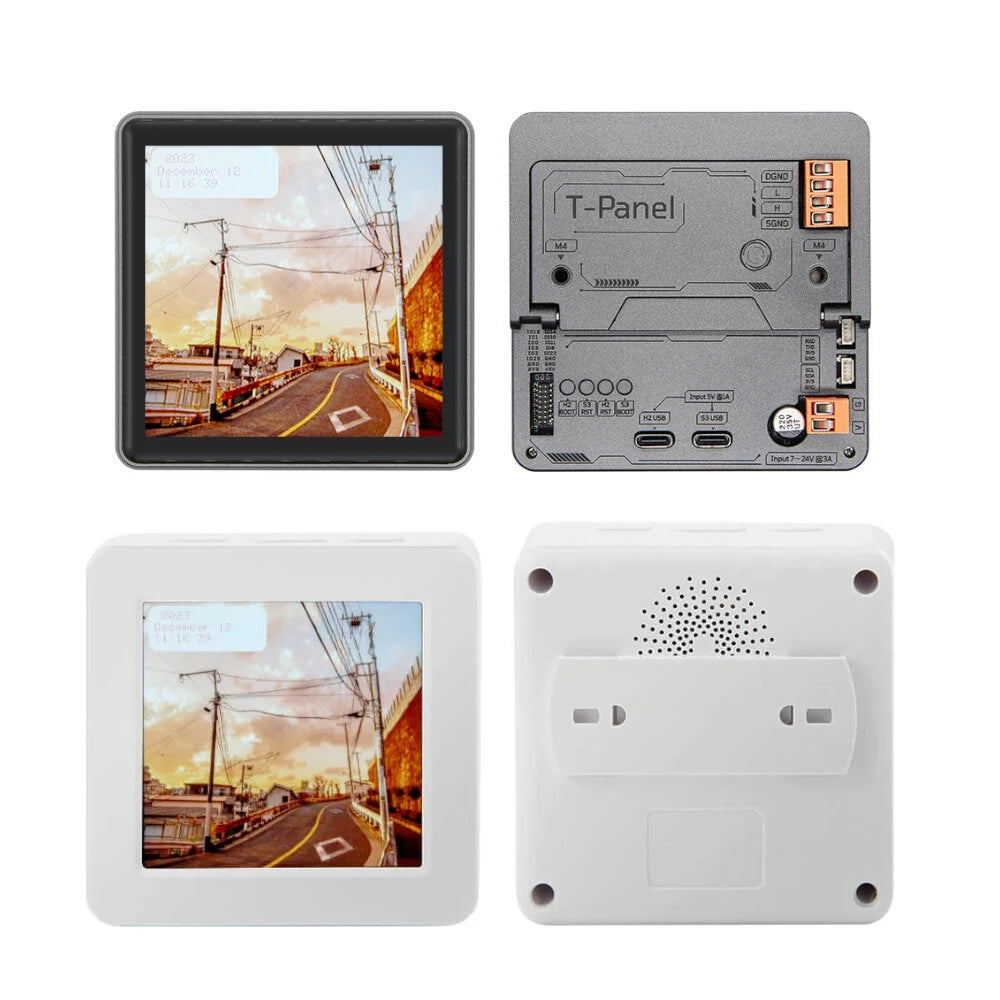

LILYGO T-Panel S3 ESP32-S3+ESP32-H2+RS485/CAN IPS ST7701S LCD Programmable Development Board
LILYGO T-Panel S3 ESP32-S3+ESP32-H2+RS485/CAN IPS ST7701S LCD Programmable Development Board
Regular price
$49.99 USD
Regular price
$73.99 USD
Sale price
$49.99 USD
Taxes included.
In stock
Quantity
Couldn't load pickup availability
>>>github: Click here to open<<<
Specification:
| MCU1 | ESP32-S3 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | 2.4 GHz Wi-Fi + Bluetooth 5 (LE) |
| MCU2 | ESP32-H2 |
| Flash | 4MB |
| Wireless Connectivity | IEEE 802.15.4 + Bluetooth 5 (LE) |
| Development | Arduin,PlatformIO-IDE, Micropython |
| 4.00' 480*480 IPS ST7701S LCD: | |
| Visible pixels | 480(W) 480(H) |
| Interface | SPI+RGB |
| Compatibility library | ArduinoGFX, LVGL |
| Onboard functions | QWiiCx2 + TF Card + Antenna |
| ESP32 4 X Button= S3(Boot + RST) + H2(Boot + RST) | |
| RS485 / CAN FD Transceiver Module(Optional) | |
| Using bus communication protocol | UART |
| XL9535 Input/Output (GPIO) Expansion Chip 16-bit I2C-bus and SMBus I/O port Expander | |

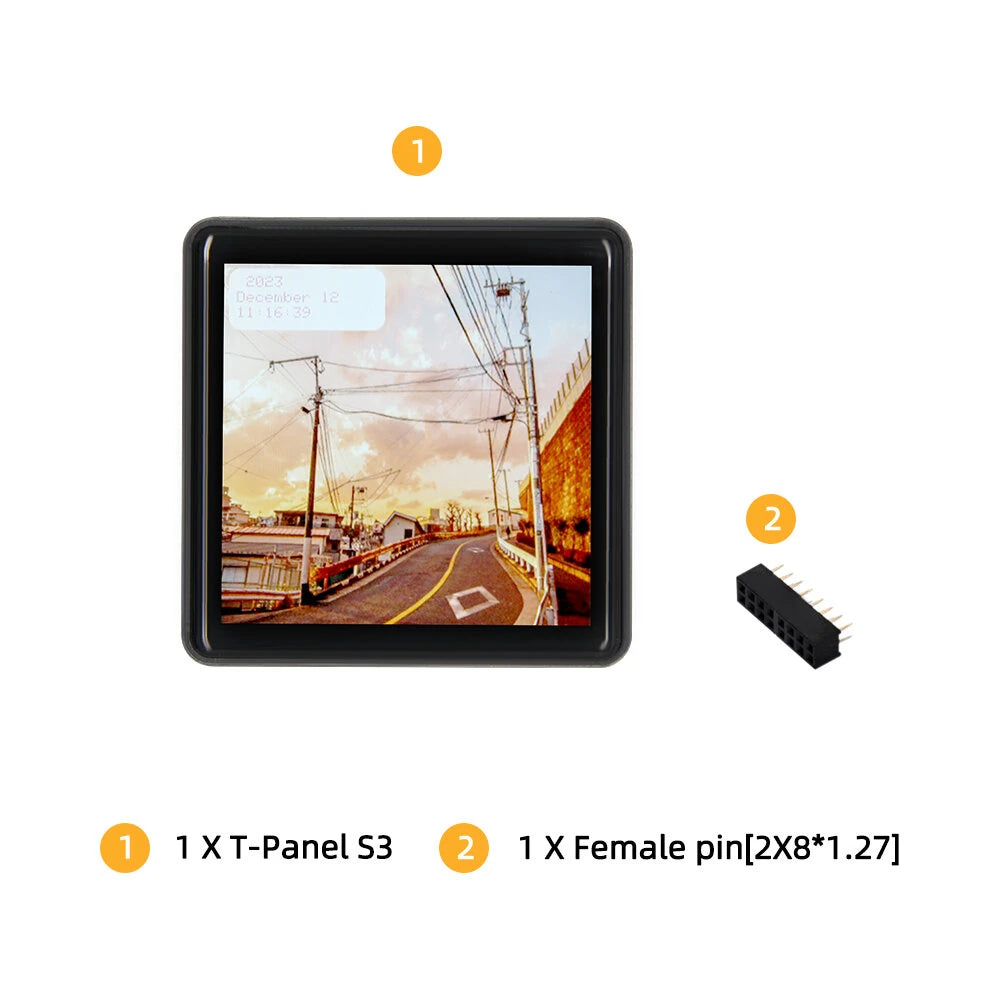

Package includes:
1 x Host
1 x 1.27 2x8 female header
