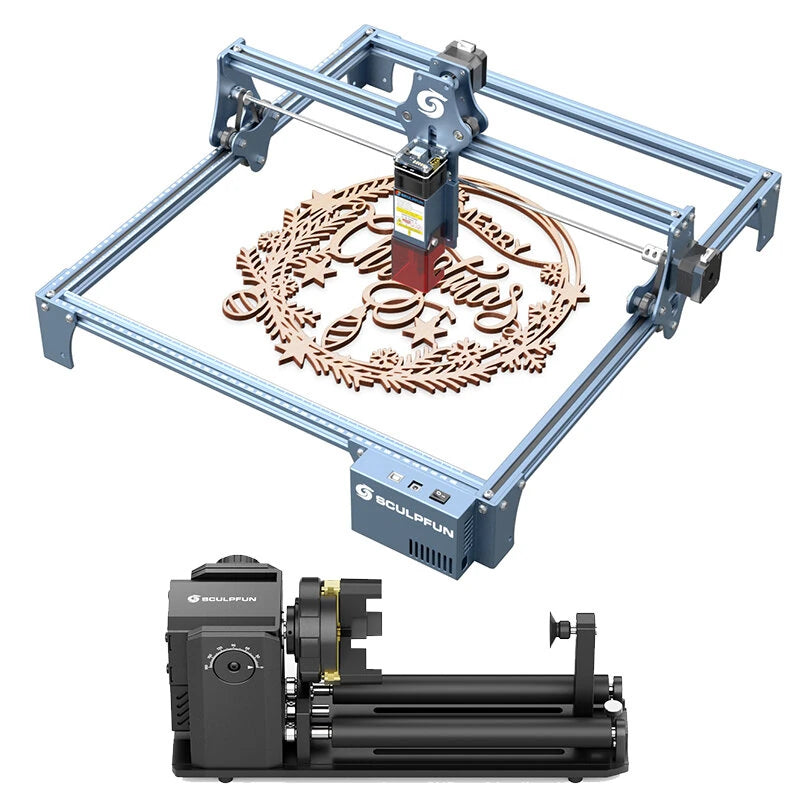

[EU Direct]SCULPFUN S9 Pro 10W Laser Engraving Machine Optional Bundle with TS1 3.5-inch Laser Engraver Touchscreen or RA Pro Max 4 in 1 Rotary Chuck Laser Engraver Y-axis Multi-Function Engraving Module for DIY Engraving Cutting

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

Specificaitons:

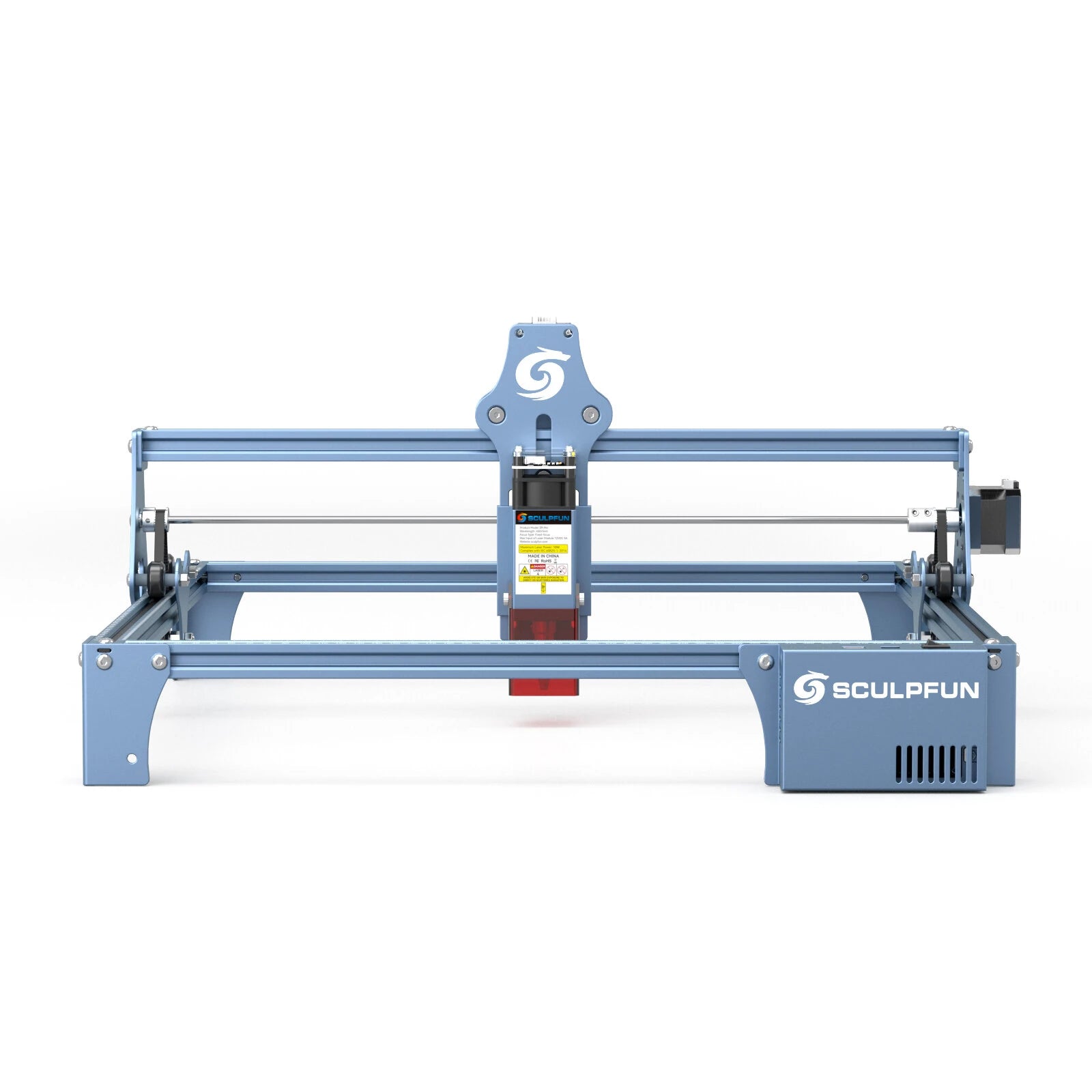

[S9 Pro 10W Laser Engraving Machine]:

Brand: SCULPFUN
Model: S9 Pro

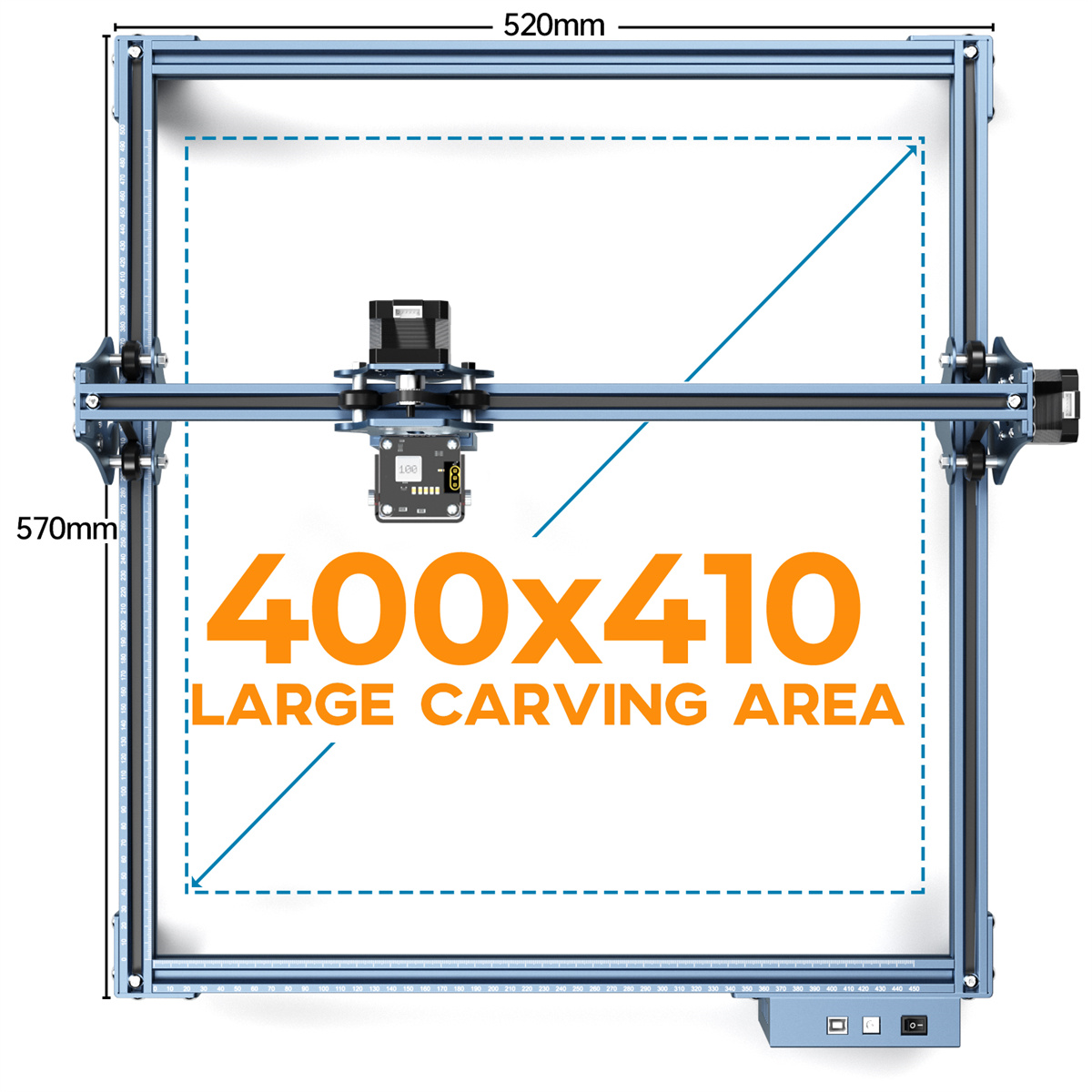

Engraving size: 400*410mm
Engraving/cutting material：
Engraving materials: wood, paper, cardboard, PCB board, aluminum oxide, 304 Stainless steel, ceramic，dark stone
Cutting materials: wood, black acrylic, cardboard, fabric, bamboo
Diode laser power: 10W
Laser wave length: 450±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser + sliding device

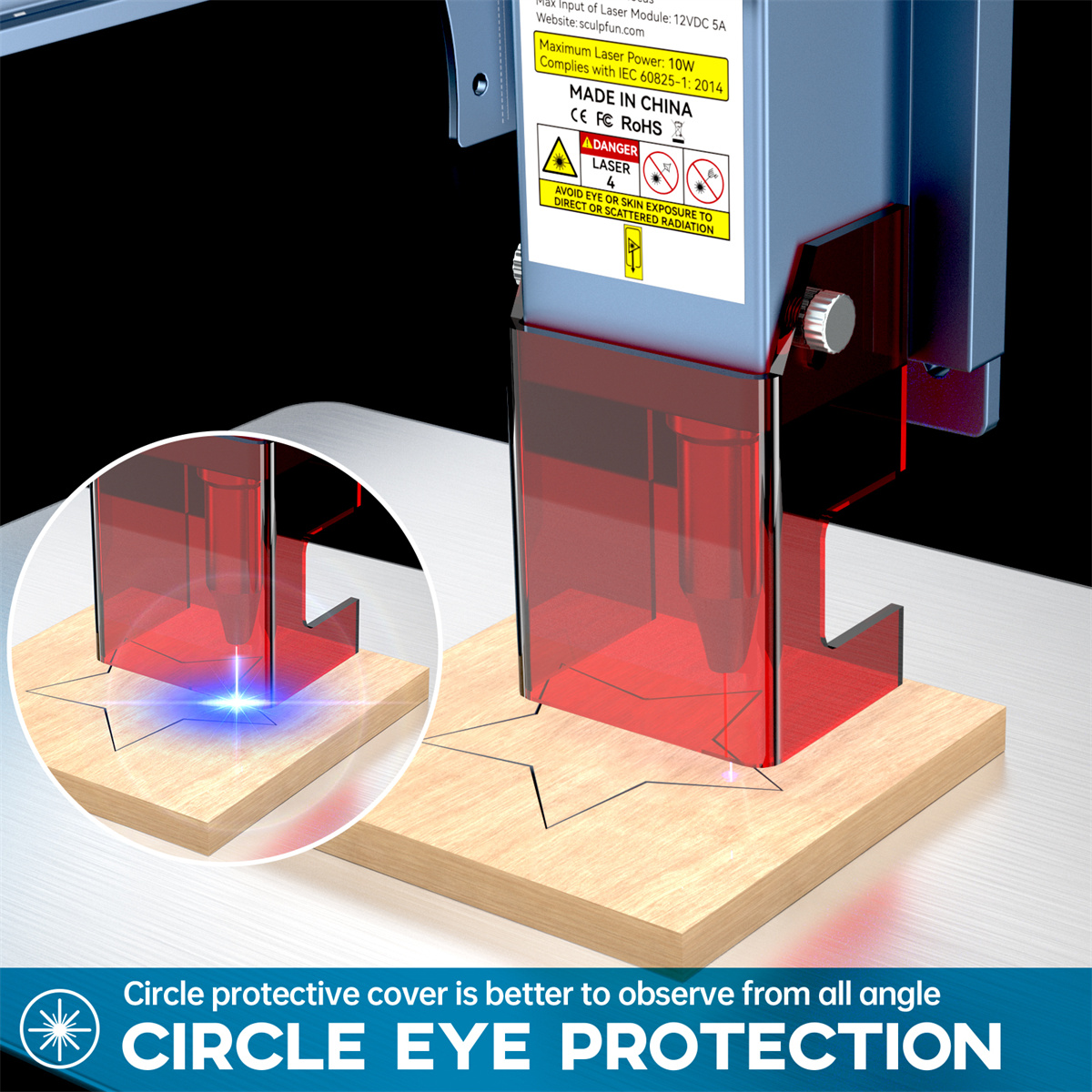

Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating software: LaserGRBL, LightBurn, Benbox, GrblController, LiteFires, support Windows system, support for MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection
Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Equipment net weight: 3.0kg
Package weight: 4.4kg
Packing size: 615*345*130mm

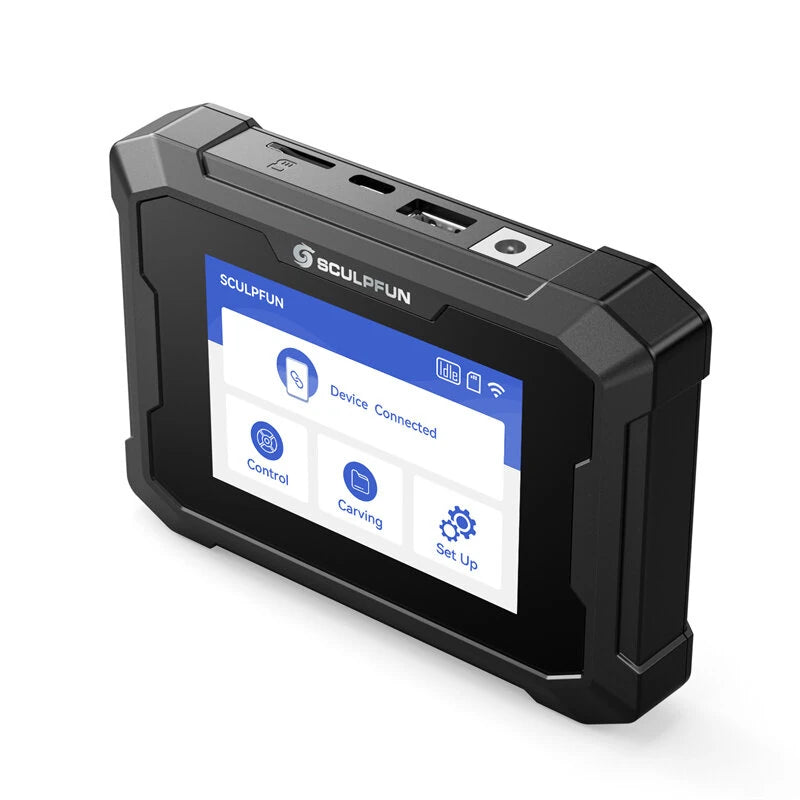

[TS1 3.5-inch Laser Engraver Touchscreen]:

Product Model: TS1
Product Material: ABS + PC
Screen Size: 3.5 inches
Screen Material: Capacitive Touch Screen
Screen Resolution: 480*320
Product Size: 126 x 89 x 25 mm
Product Weight: 130g

[RA Pro Max Roller]:

Product Model: RA Pro Max

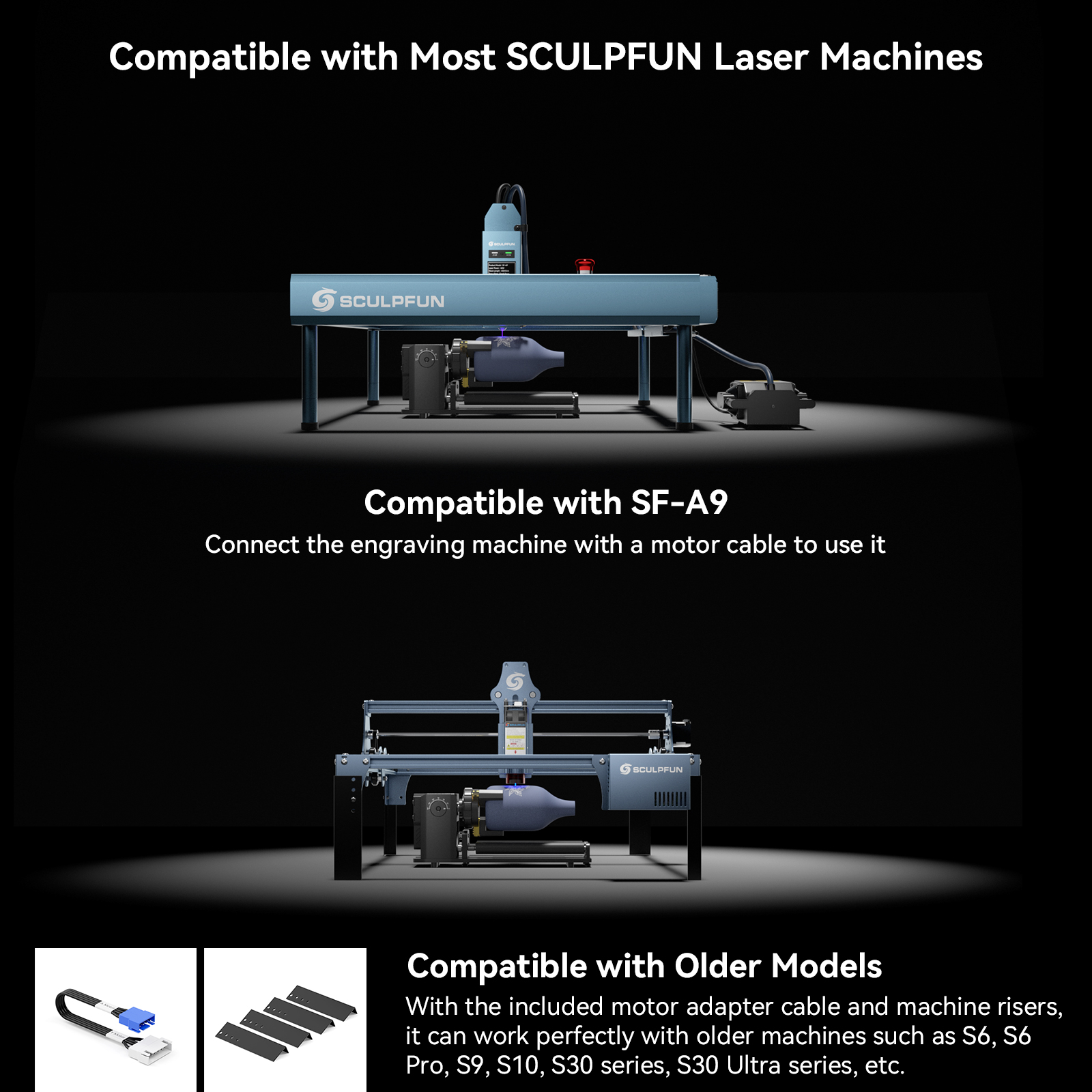

Compatible Machines: S6/S6 Pro/S9/S10/S30 Series/S30 Ultra Series/SF-A9
Note: For other models, please check with us
Software: LightBurn/LaserGRBL (LightBurn is recommended)
Diameter Range of Engraving:
Ring: 10-102mm
Sphere: 4-130mm
Roller: 5-198mm
Maximum Engraving Speed: 6000mm/min
Engraving Precision: 0.1mm
Rotation Angle: 0-180°

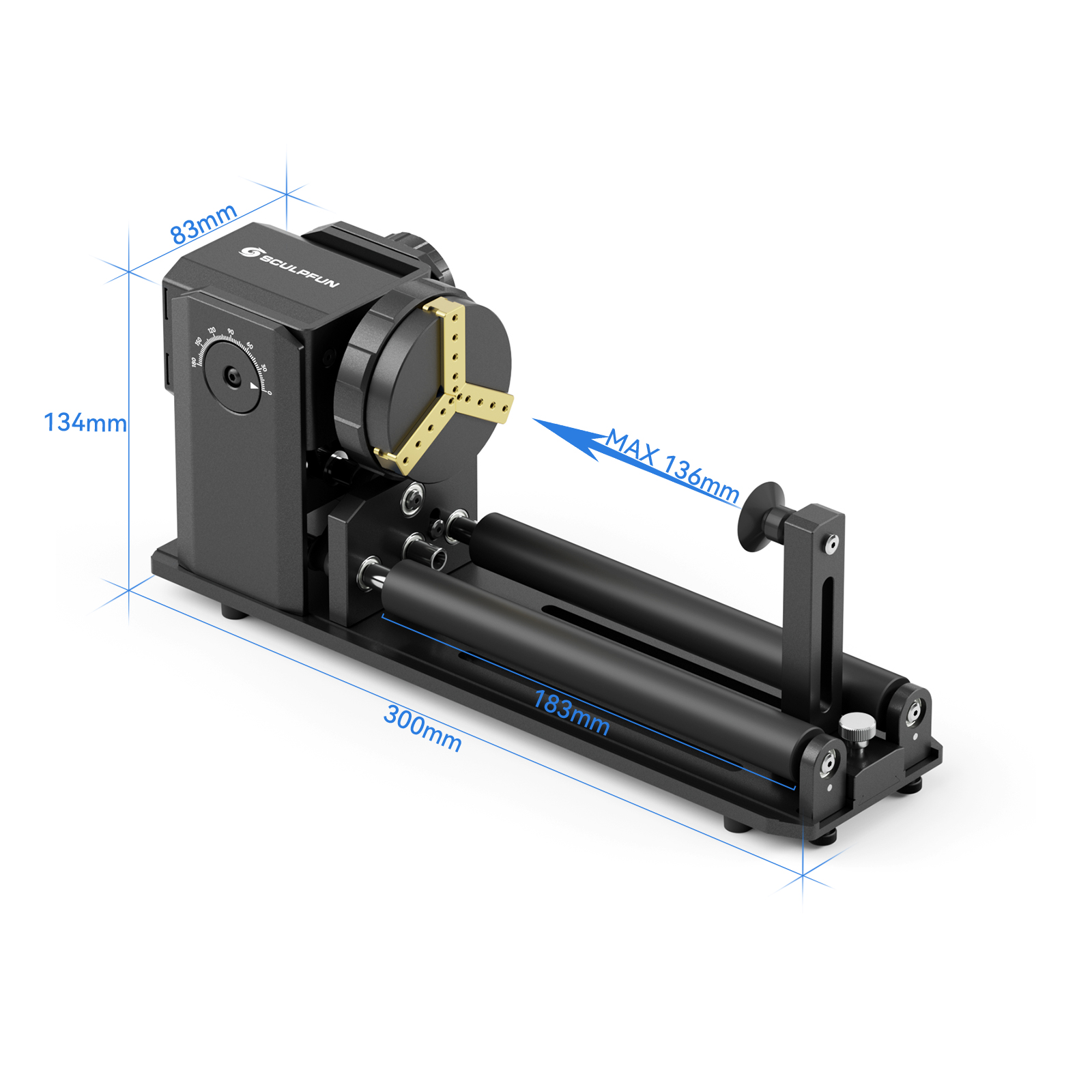

Product Size: 300*100*140mm
Product Weight: 1.78KG
Package Size: 350*180*160mm
Package Weight: 2.6KG

Features:

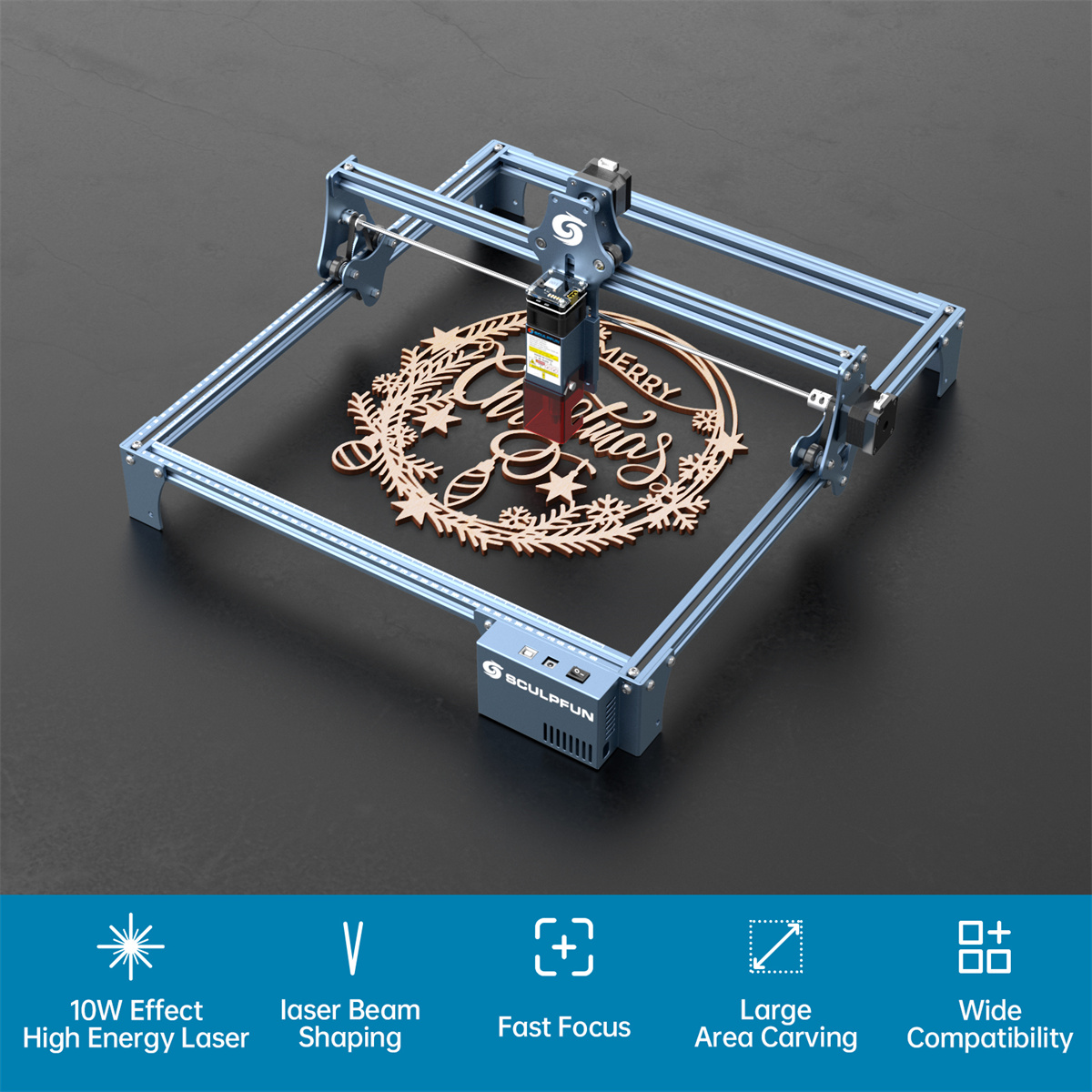

for S9 Pro Laser Engraving Machine:

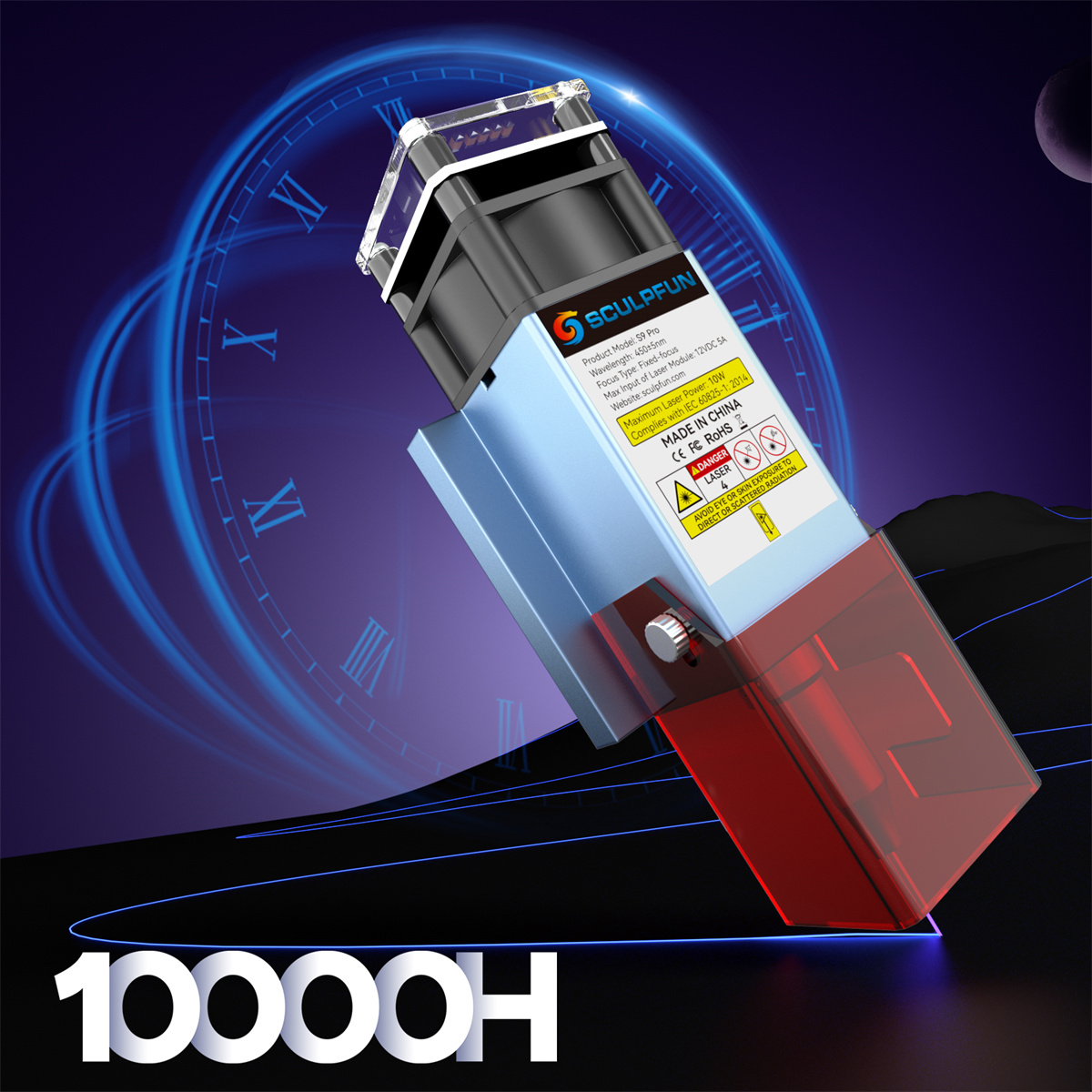

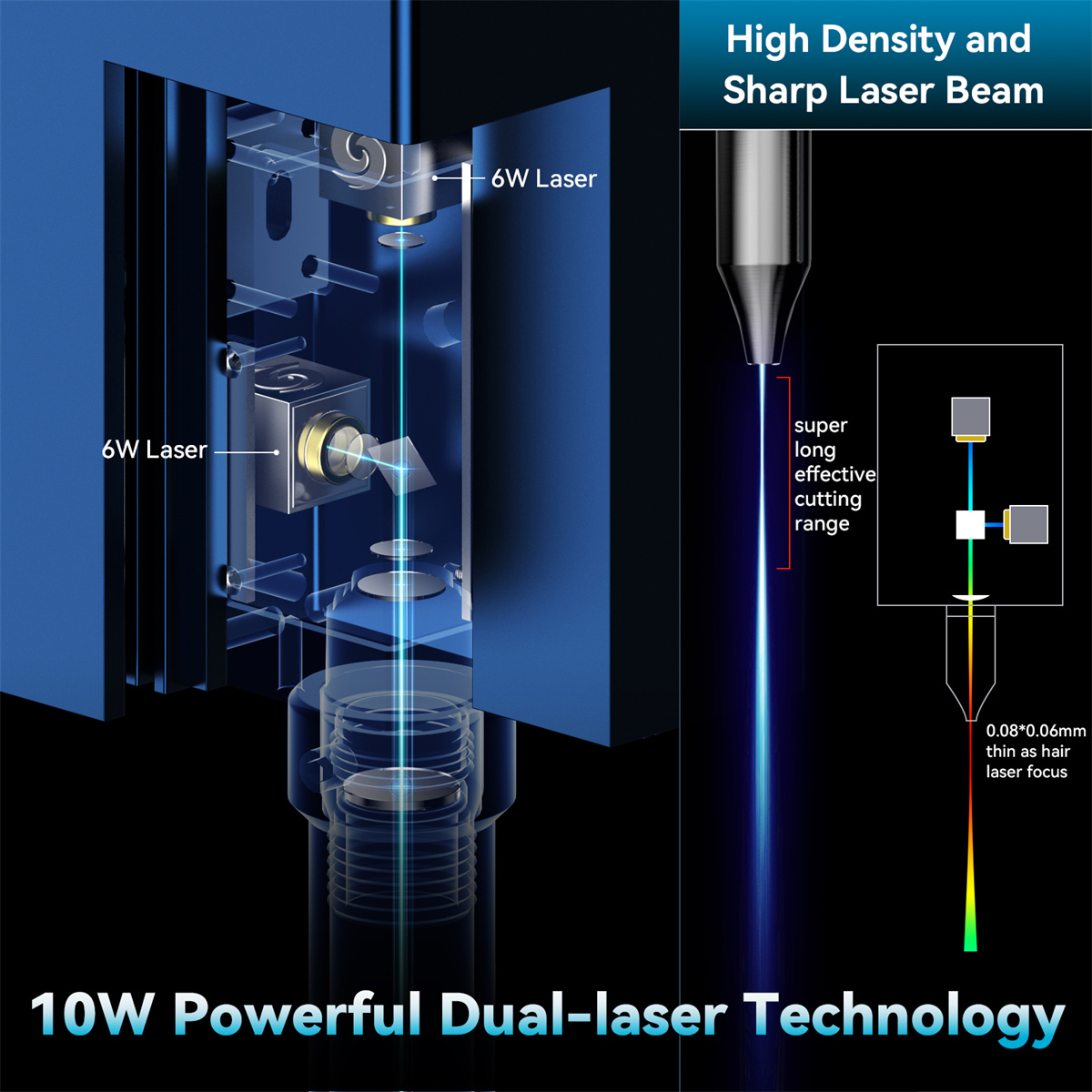

1. 10W Laser Beam Shaping Technology: Adopting the latest 10W laser beam shaping technology diode laser, the S9 Pro has an ultra-fine 0.06mm laser focus. With super cutting penetration and precision, it can cut up to 15mm thick wood, 10mm acrylic, and directly engrave ceramics and 304 stainless steel.

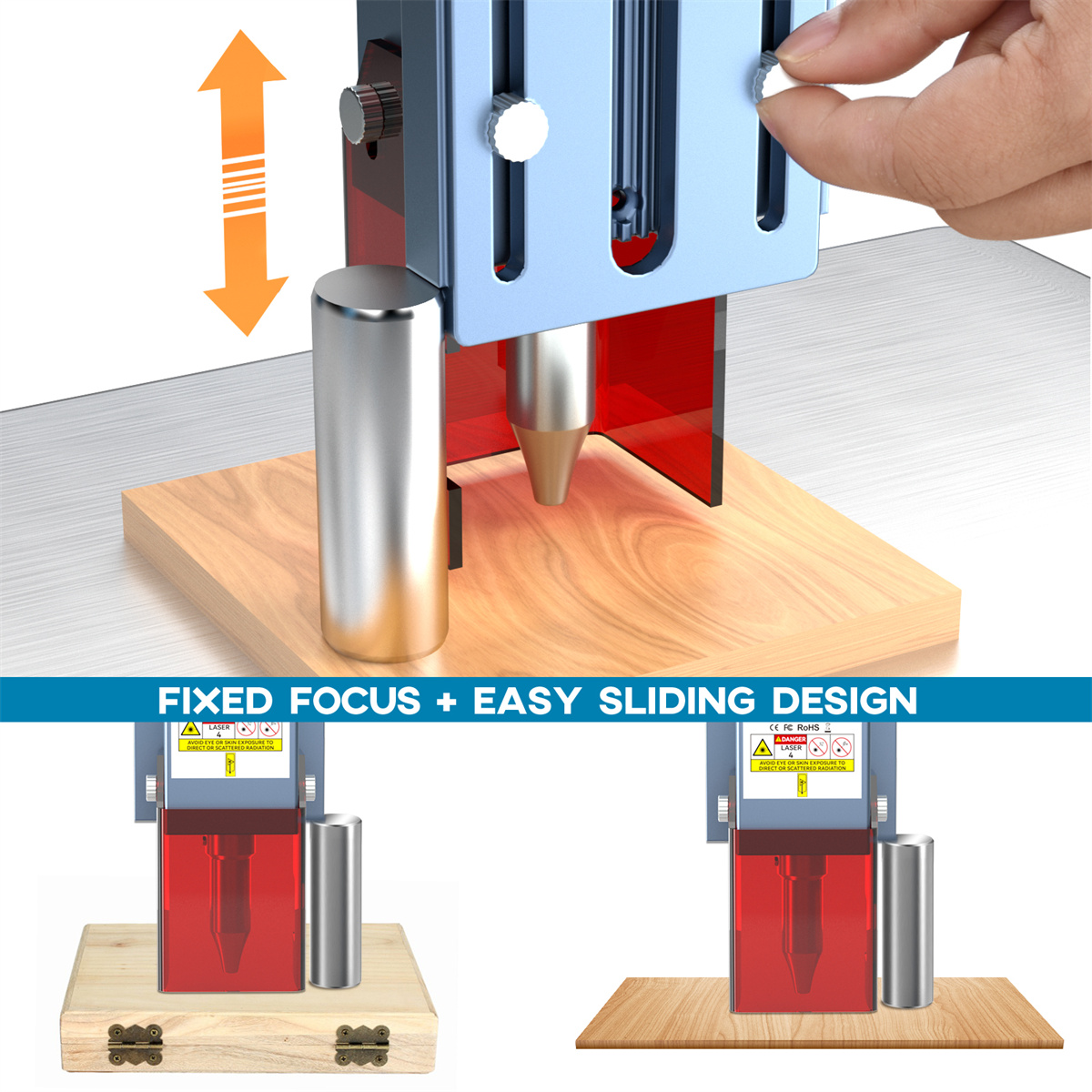

2. Fast Focusing Design: The S9 Pro laser has the fastest focus design. It combines a fixed focus lens and a sliding design, allowing you to slide the laser and tighten the screws to easily complete the focus. This makes it very easy to use the laser.

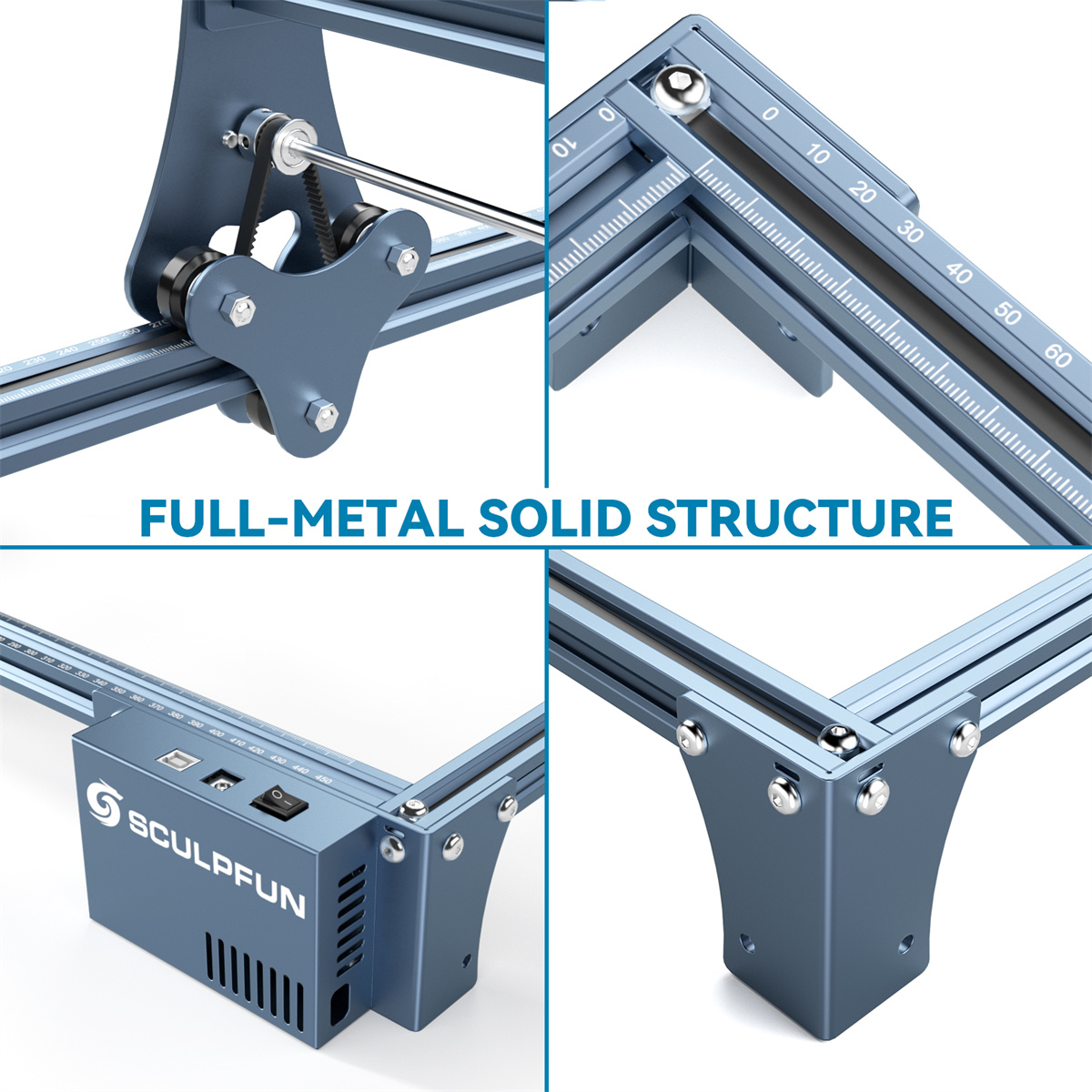

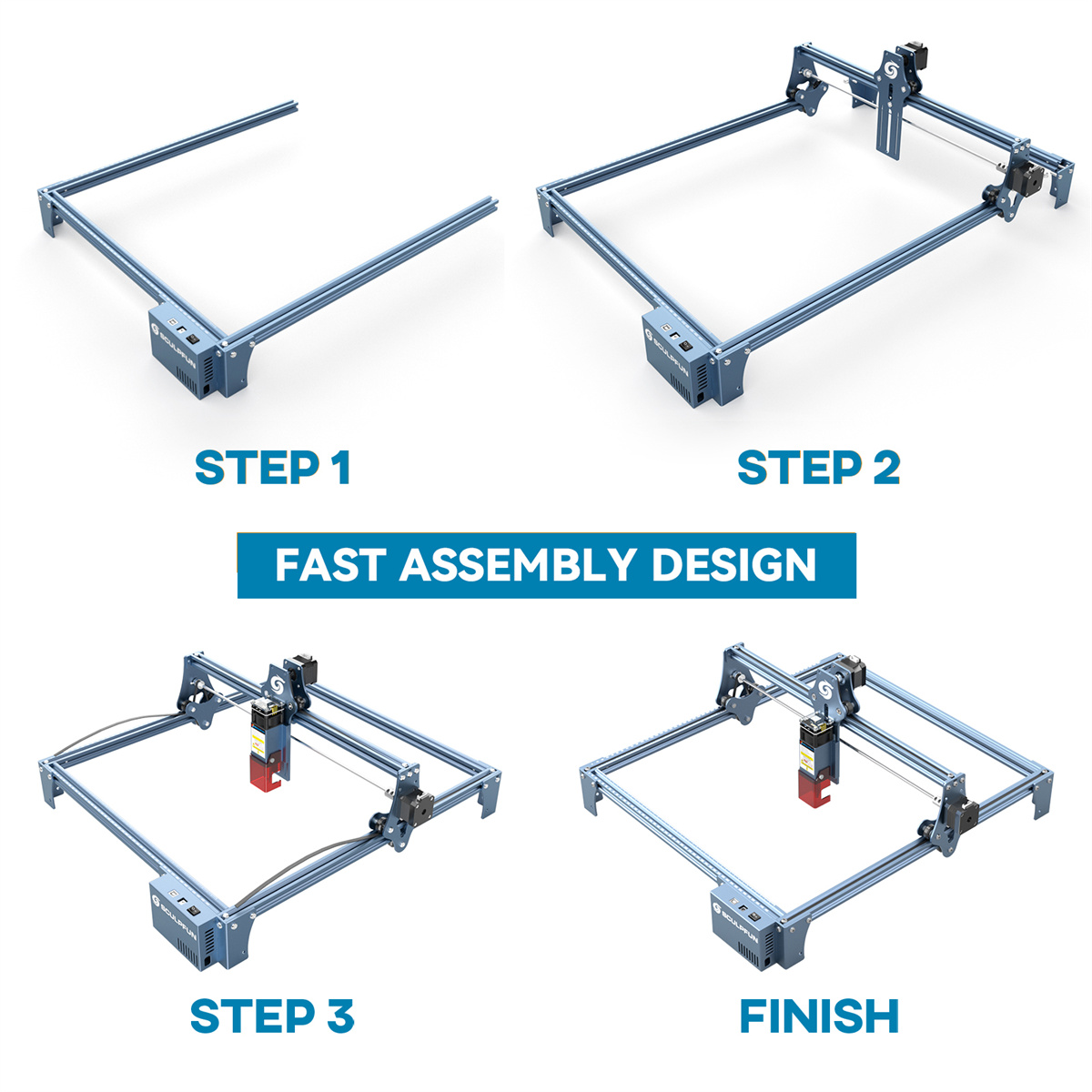

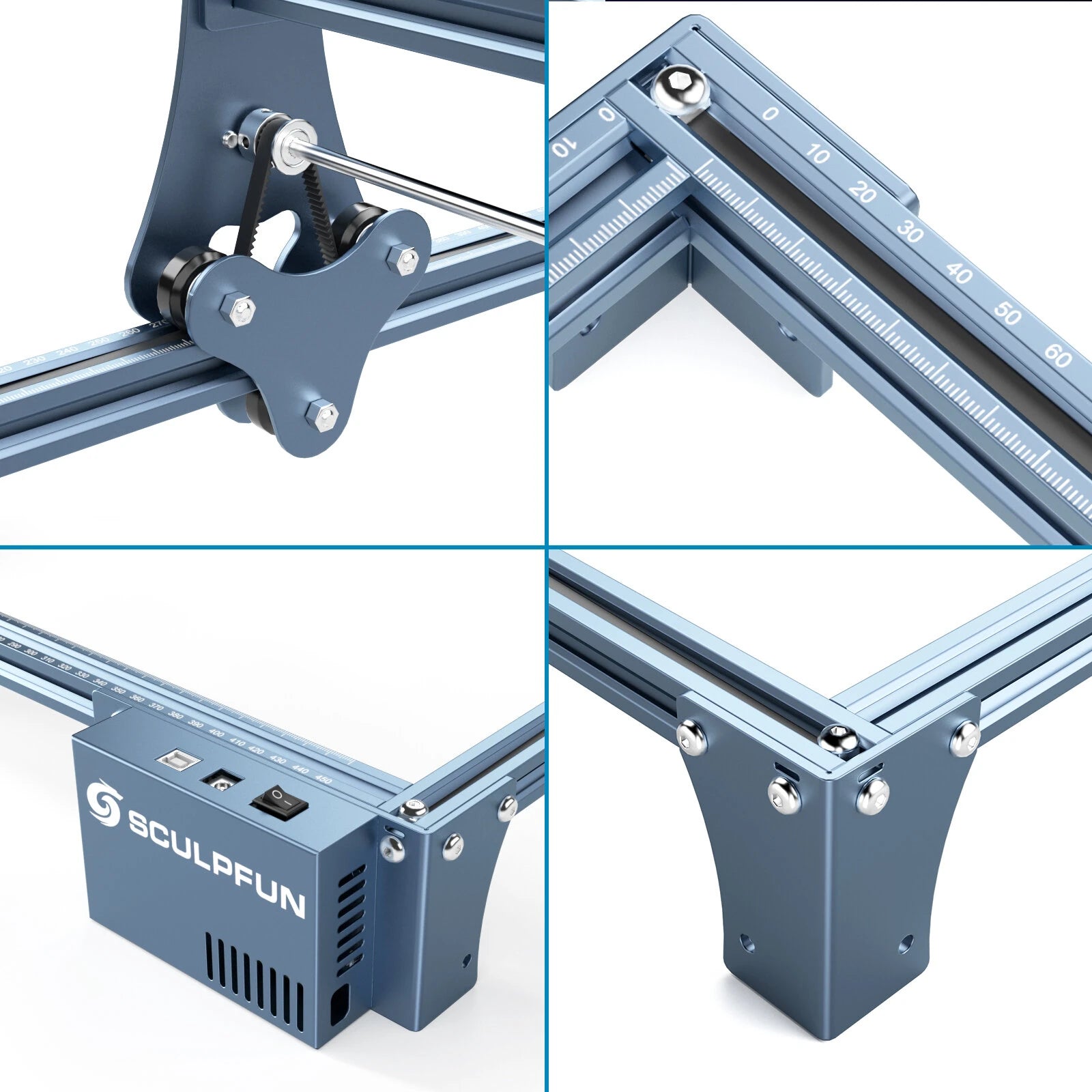

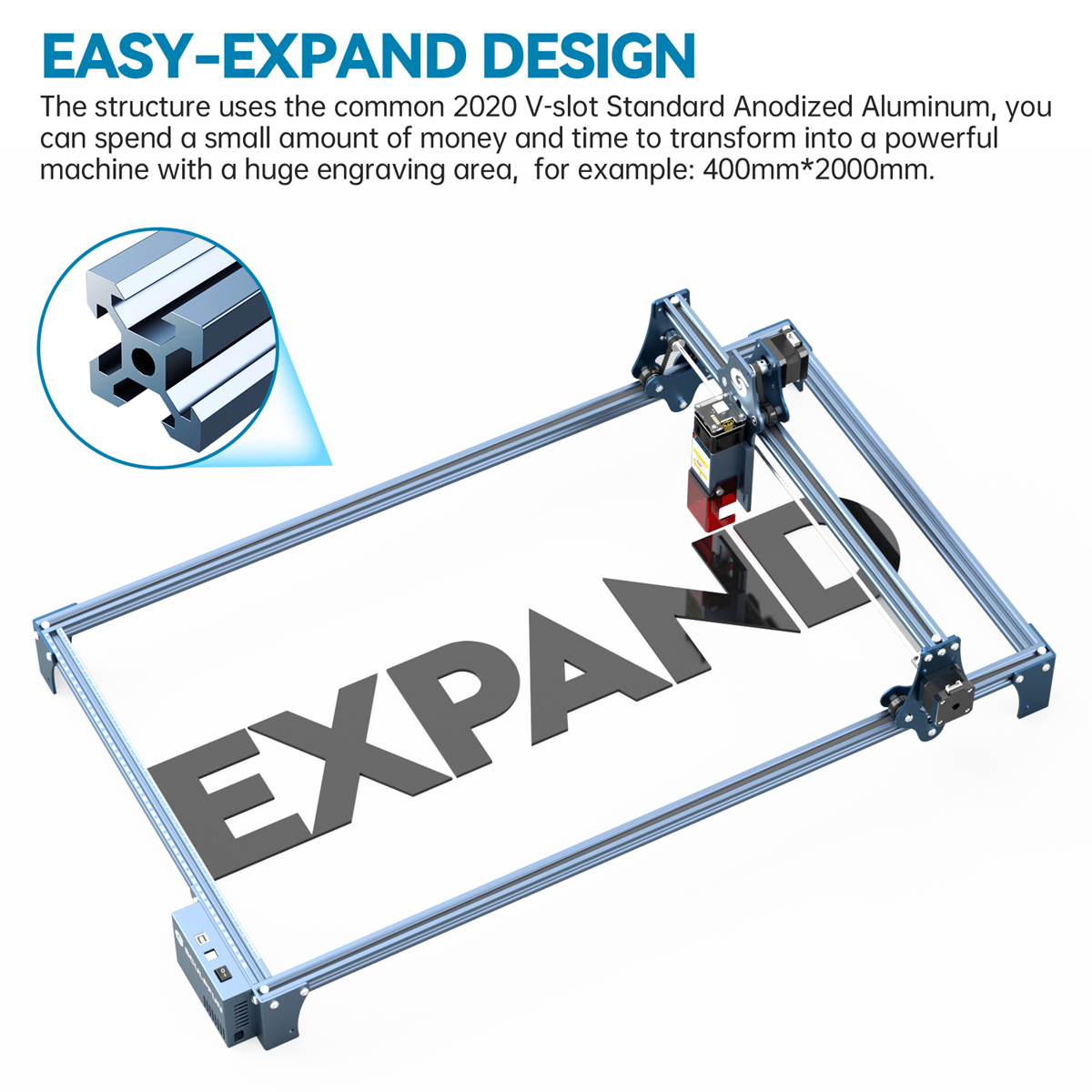

3. Solid and Easy-assembly Structure Design: Full-metal structure design enhances the solidity of the machine, significantly improving the accuracy of engraving. The whole structure is designed for easy-assembly, which can be completed in 10-20 minutes. The structural frame is very long-lasting and remains open to upgrade. During use, you can keep the frame and replace it with other new lasers, or replace longer metal beams to expand the engraving area.

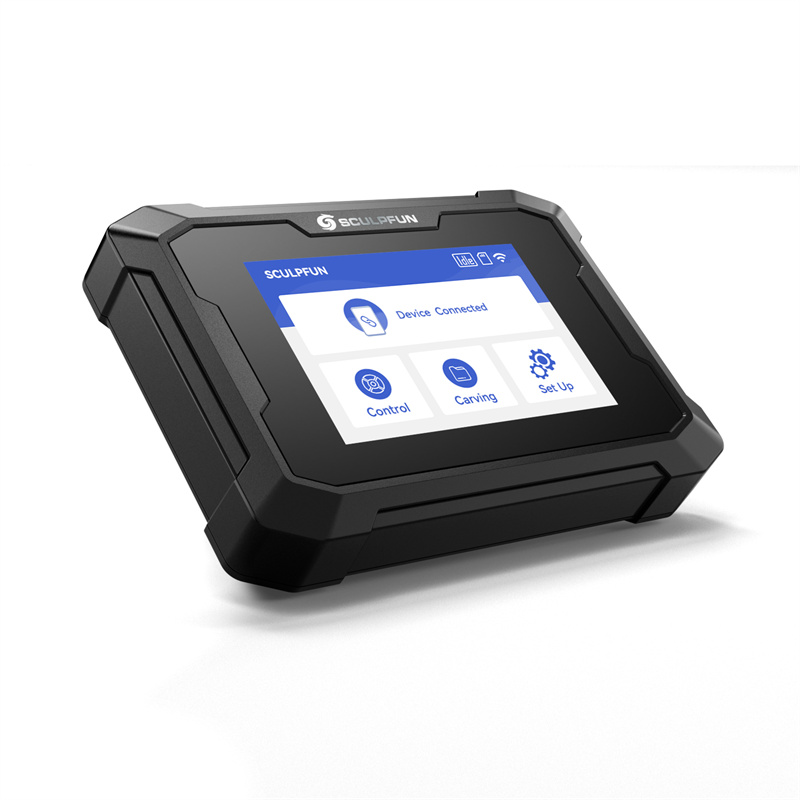

for TS1 Laser Engraving Touchscreen:
1.Offline Engraving Capability: The SCULPFUN TS1 allows users to copy engraving or cutting files directly to the SD card and complete the tasks offline using the 3.5-inch touchscreen. This feature enhances both convenience and practicality by eliminating the need for a constant computer connection.
2.WiFi Connectivity: Upgrading any compatible laser engraver with WiFi functionality, the TS1 facilitates real-time slicing when paired with the SCULPFUN mobile app. This wireless connection makes the engraving process easy and quick without the need for direct computer use.

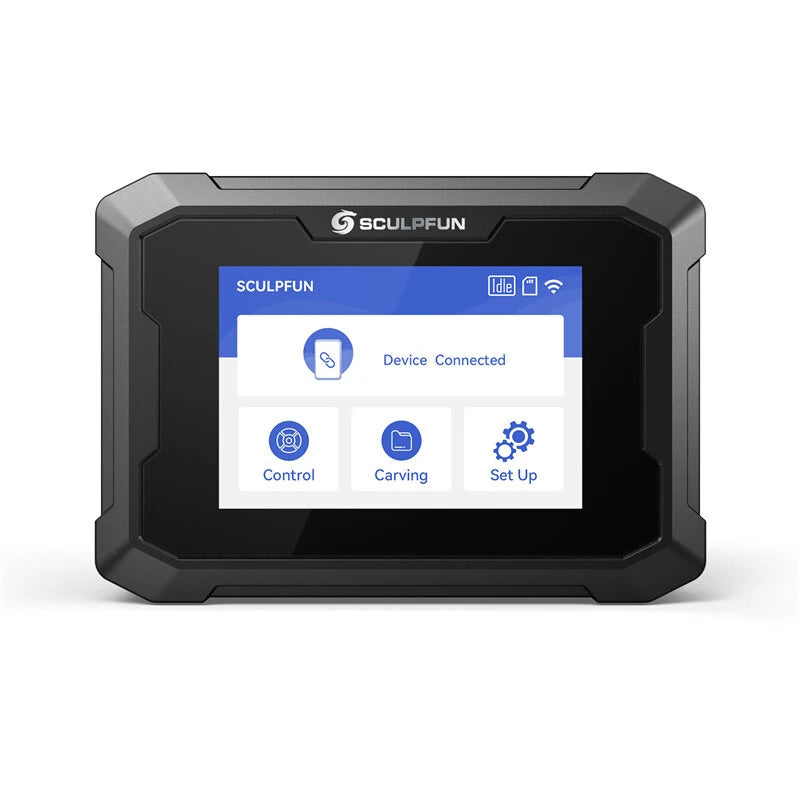

3.High-Quality Touchscreen Display: Featuring a 3.5-inch capacitive touch screen, the TS1 ensures clear readability and a smooth operating experience. The intuitive visual interface provides a seamless interaction, outperforming resistive touchscreens with its responsive touch capabilities.

for RA Pro Max Roller

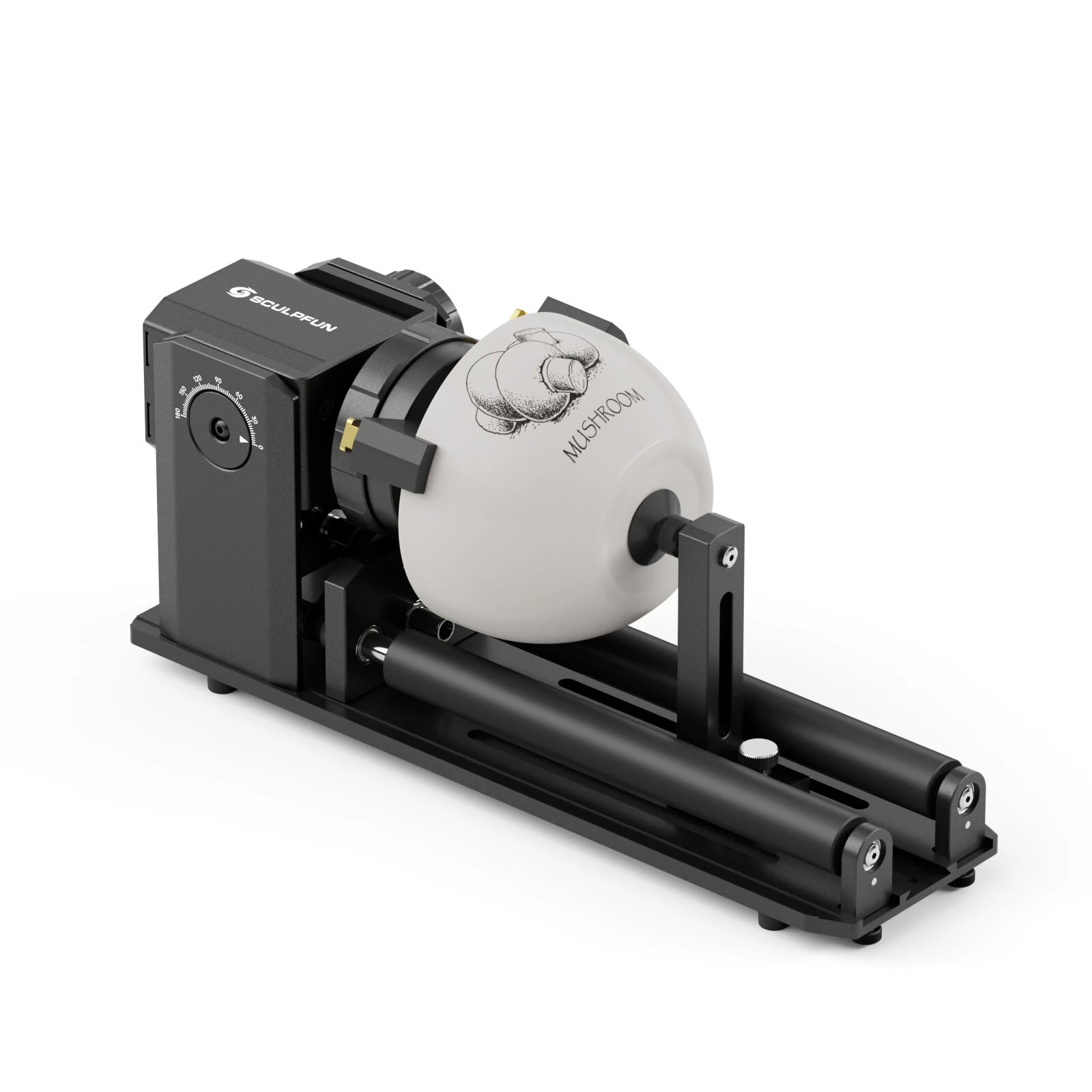

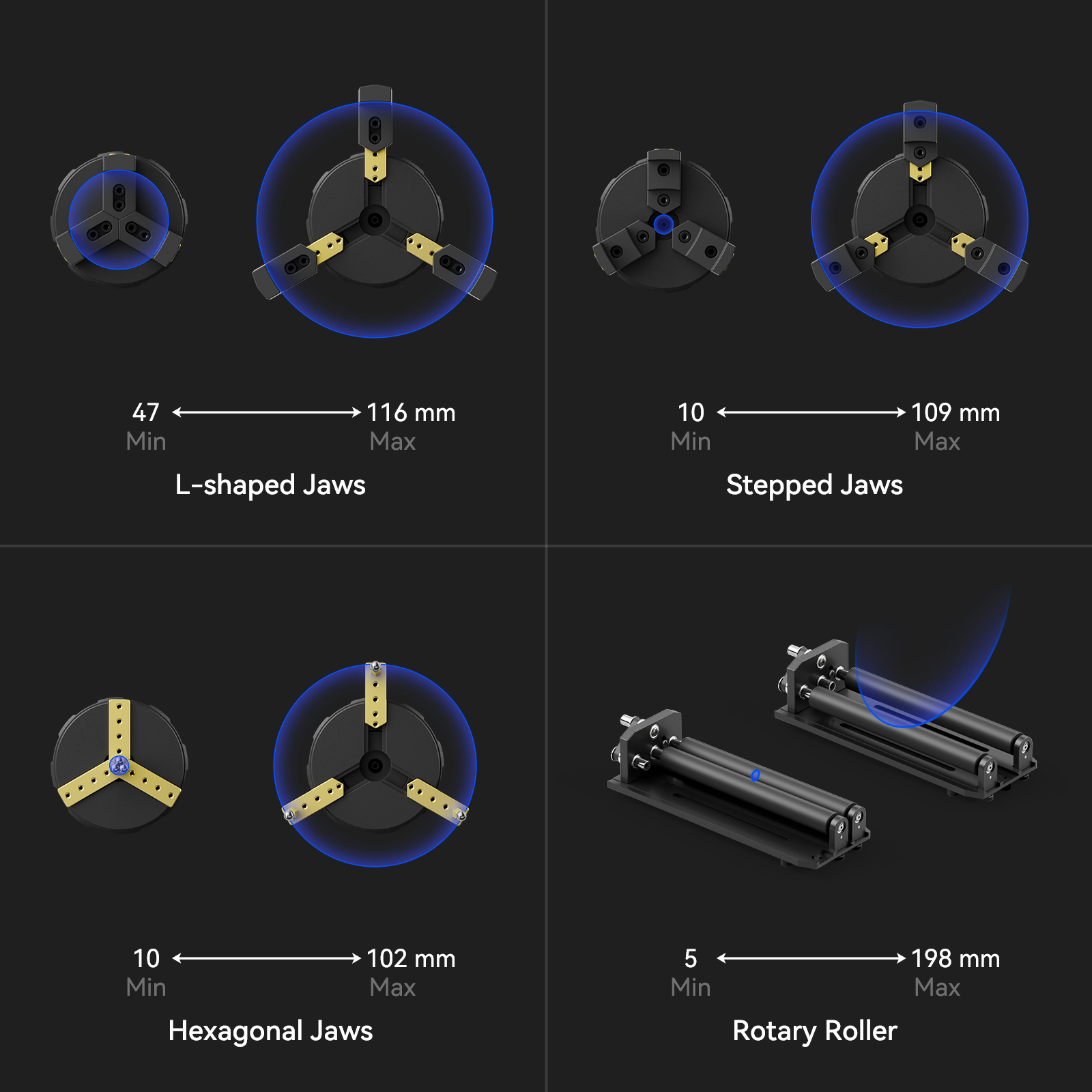

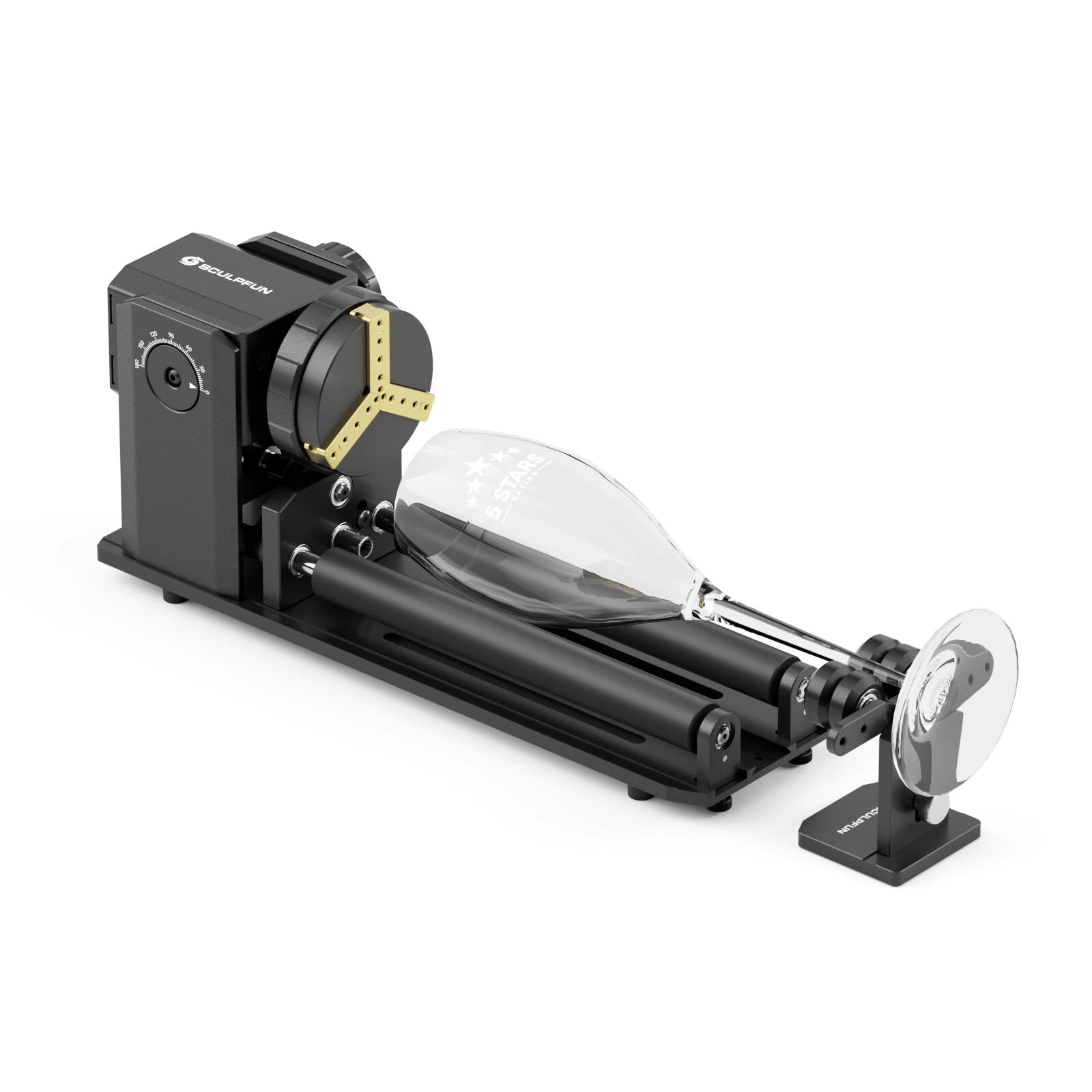

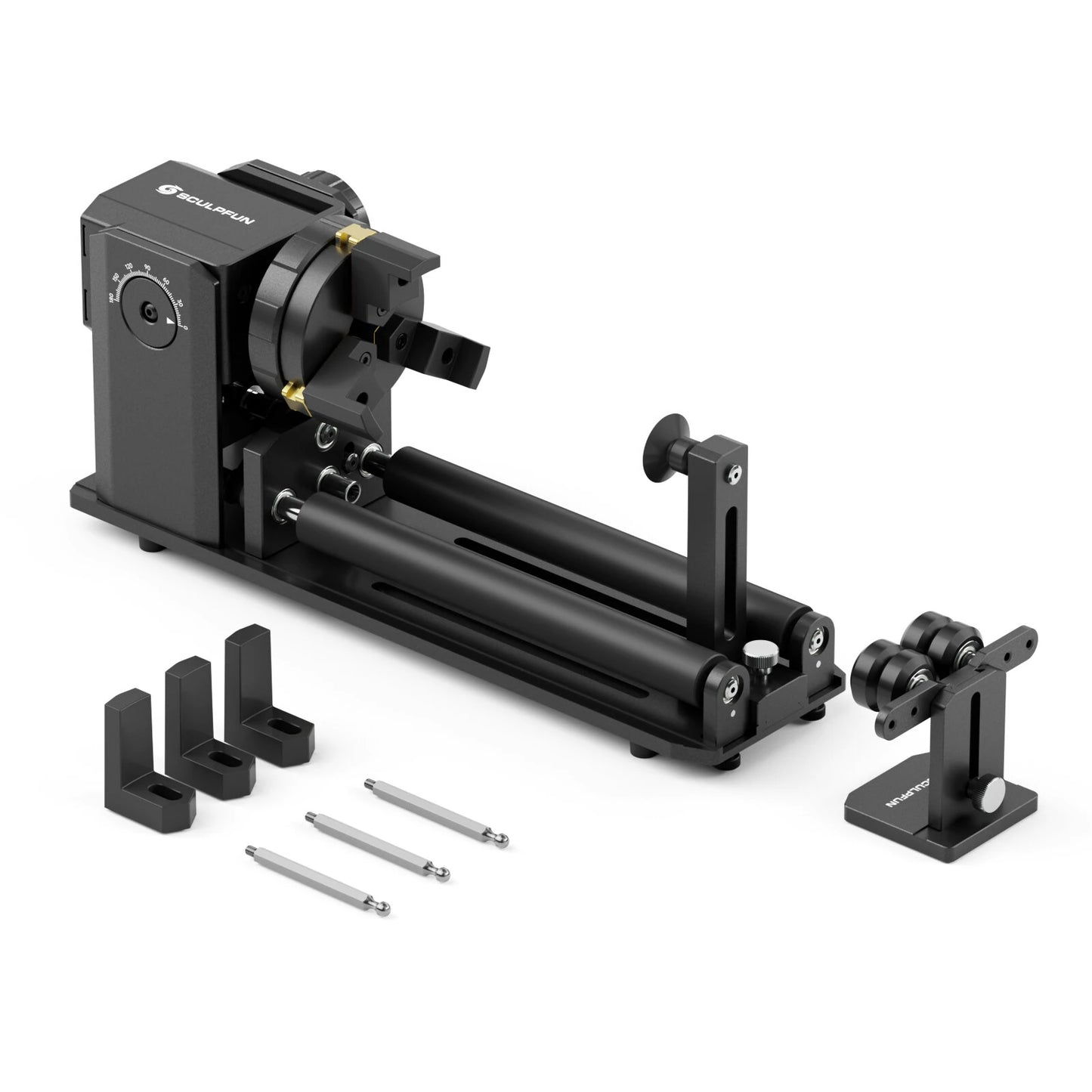

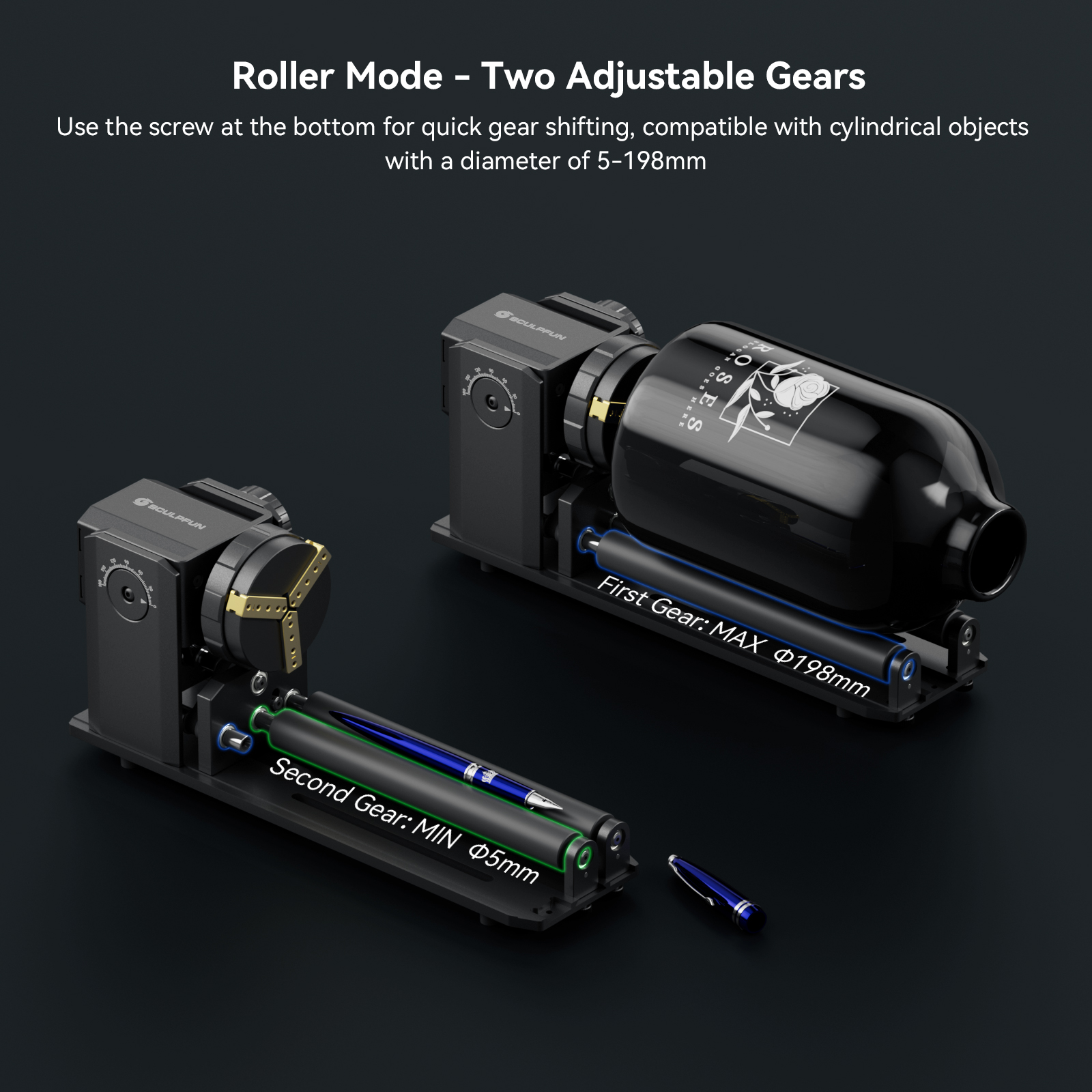

1. Versatile Four-in-One Rotary Roller: SCULPFUN RA Pro Max is equipped with a roller that offers two width adjustment options, making it suitable for engraving the regular cylindrical objects in various sizes. Additionally, it comes with 3 sets of jaw attachments: stepped jaws, L-shaped jaws and hexagonal jaws. By simply replacing the attachments, it enables the engraving of more objects with irregular shapes such as wine glasses, baseballs, baseball bats, glass cups, and handled mugs. This significantly expands your creative possibilities and meets the needs of a wider range of engraving projects.

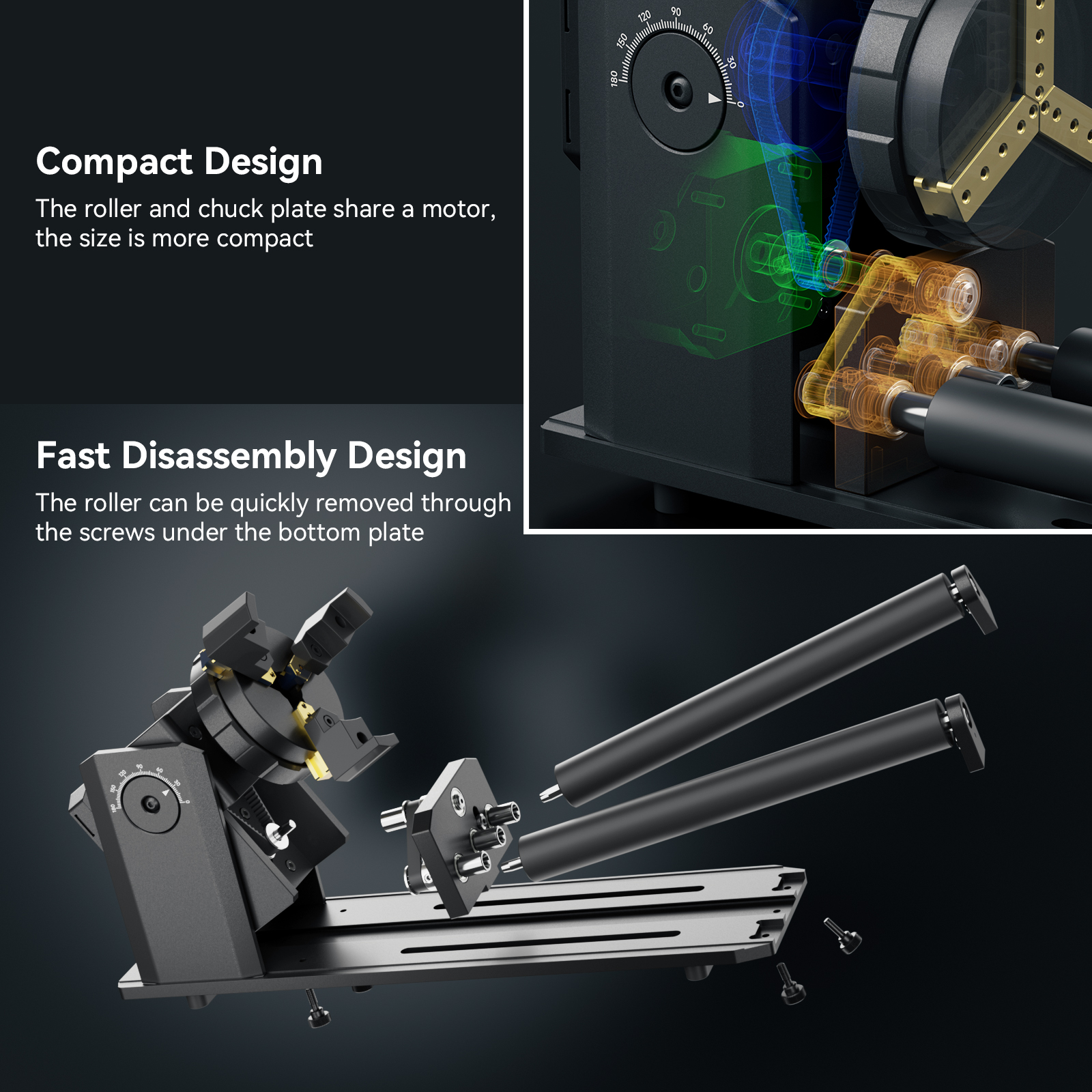

2. All-in-one Framework Structure: The roller and the chuck share a motor, which makes the overall size more compact. Also, this roller is designed with a quick disassembly feature that allows for quick removal through the screw under the bottom plate. Its compact size makes it easy to store and organize when not in use.

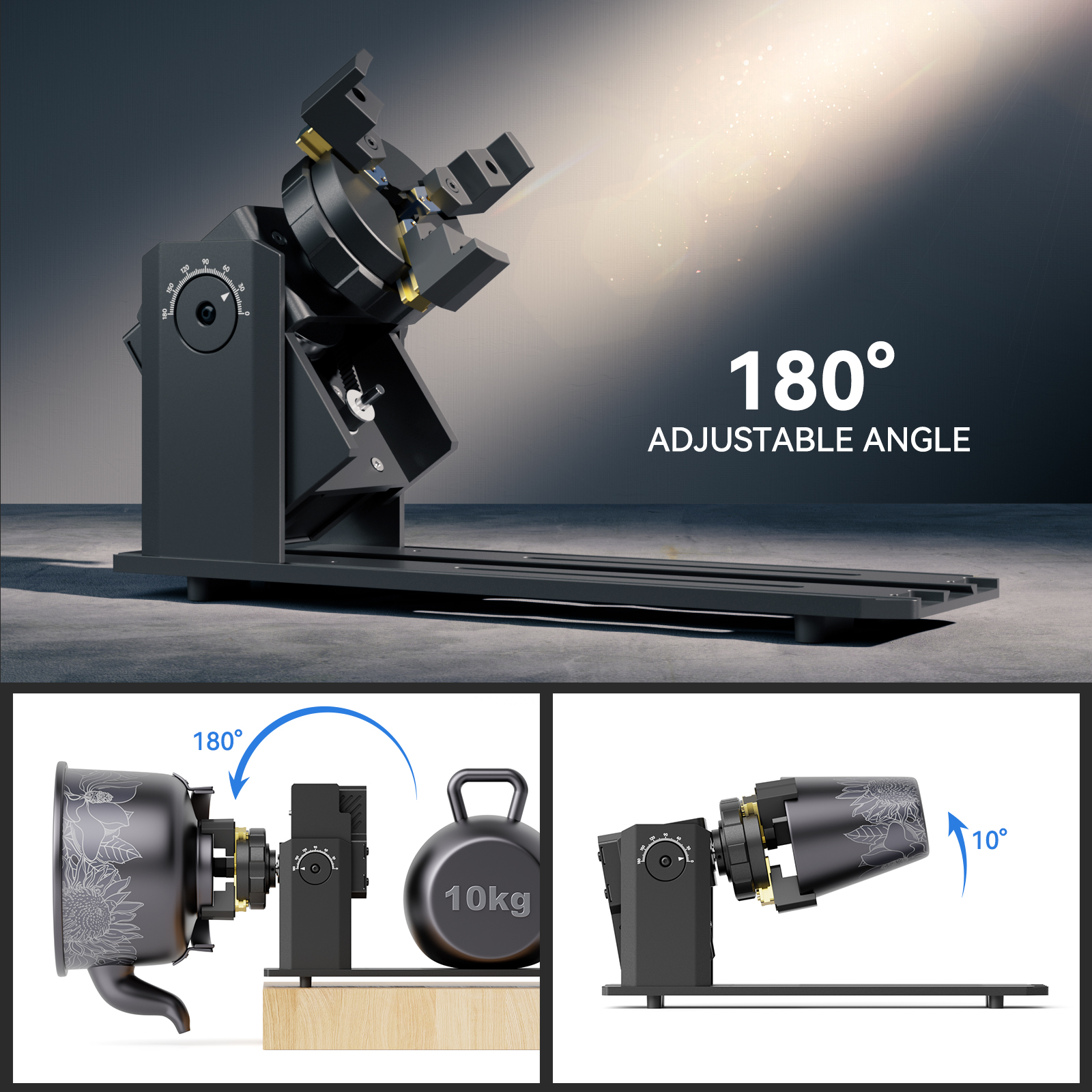

3. 180° Adjustable Angle: This rotary roller has an adjustable angle of 180 degrees, within which it can be freely adjusted for more space to process large objects. And the side is designed with the angle line for easy viewing, which allows for flexible positioning and facilitates the application in various processing scenarios, enhancing the engraving experience.

Package Include:

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

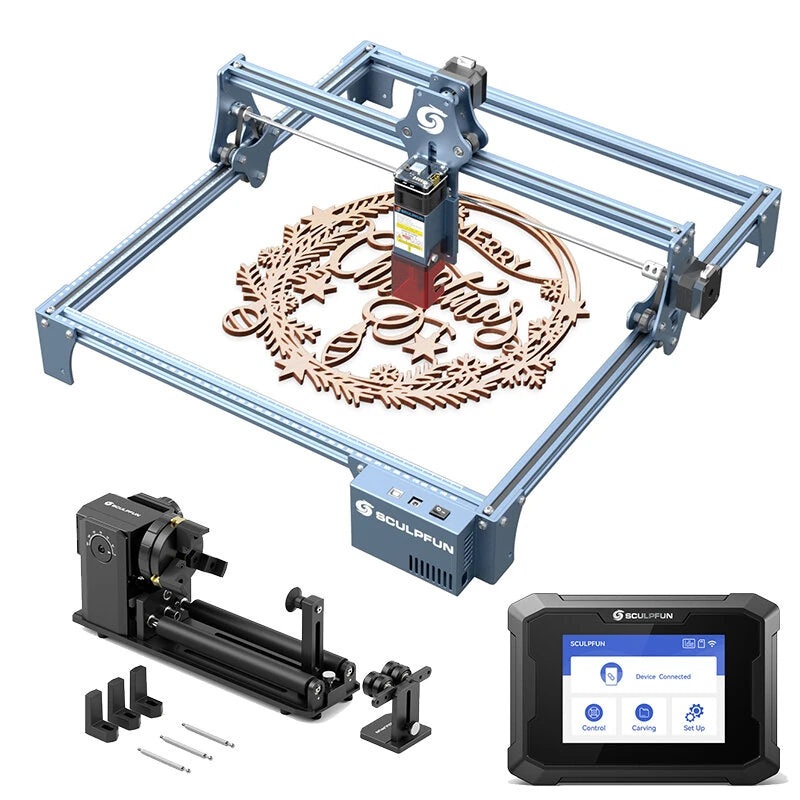

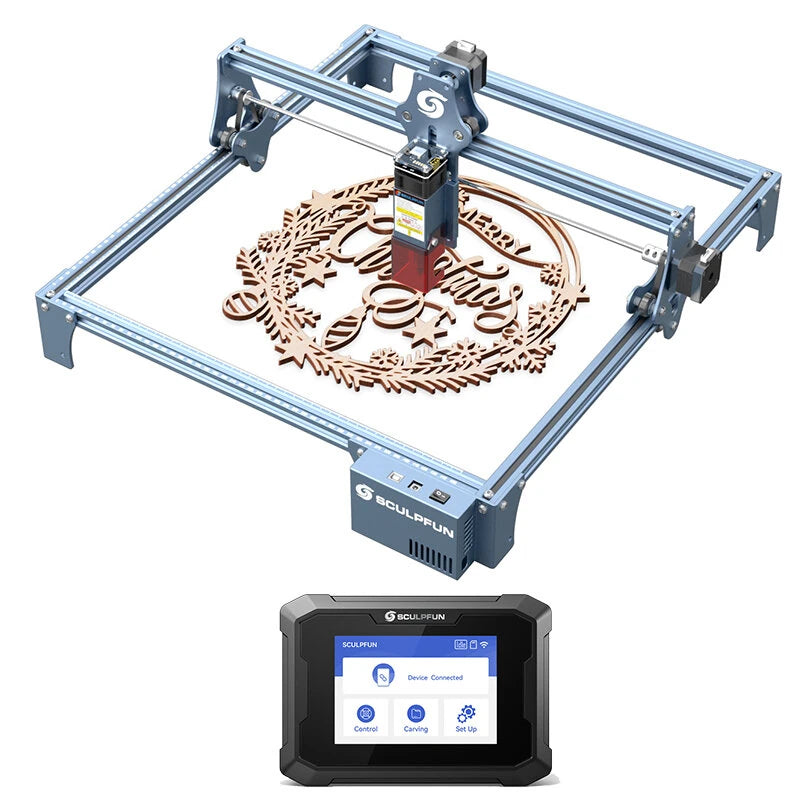

Set 1:S9 Pro 10W+TS1 Touchscreen

Set 2:S9 Pro 10W+RA Pro Max Roller

Set 3:S9 Pro 10W+RA Pro Max Roller+TS1 Touchscreen

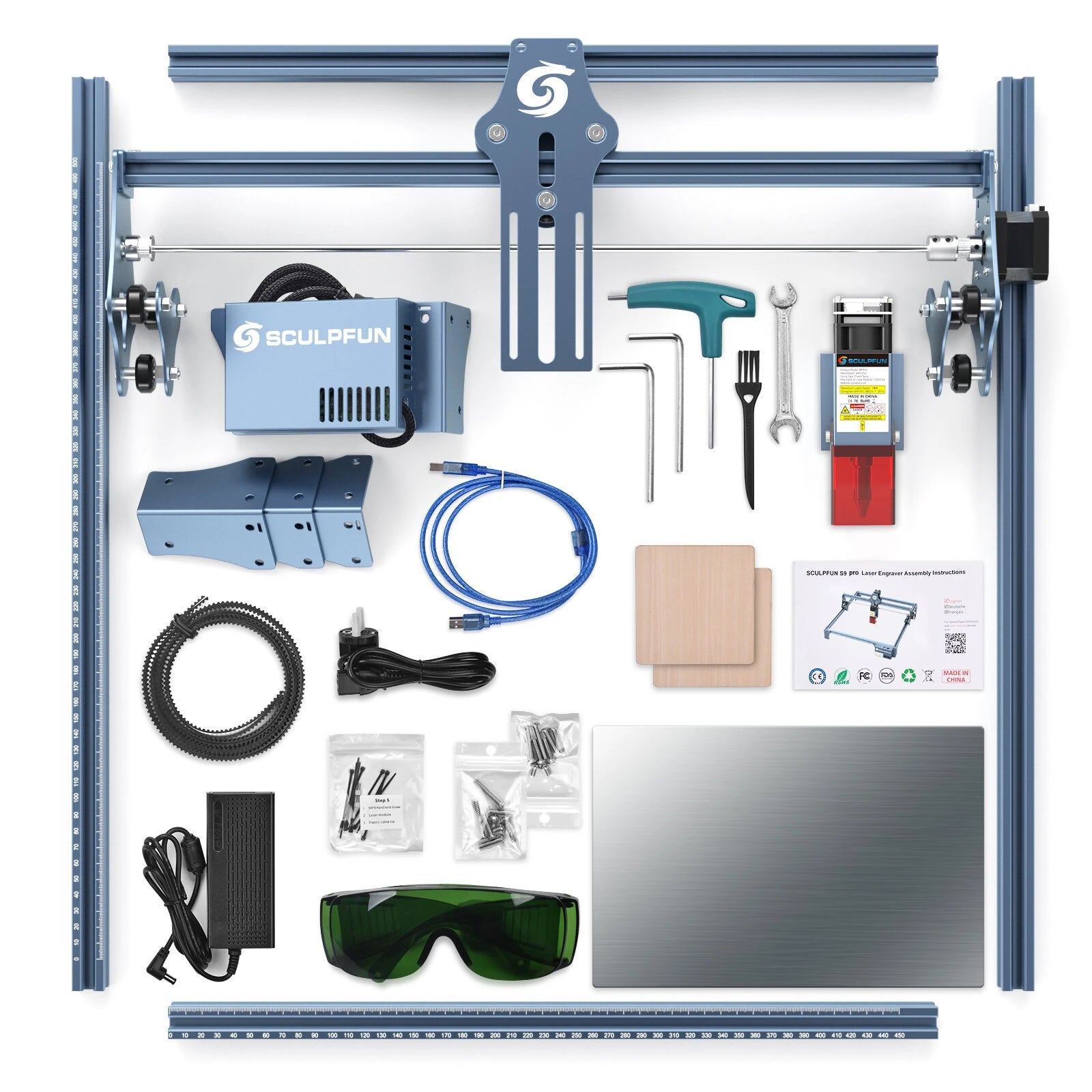

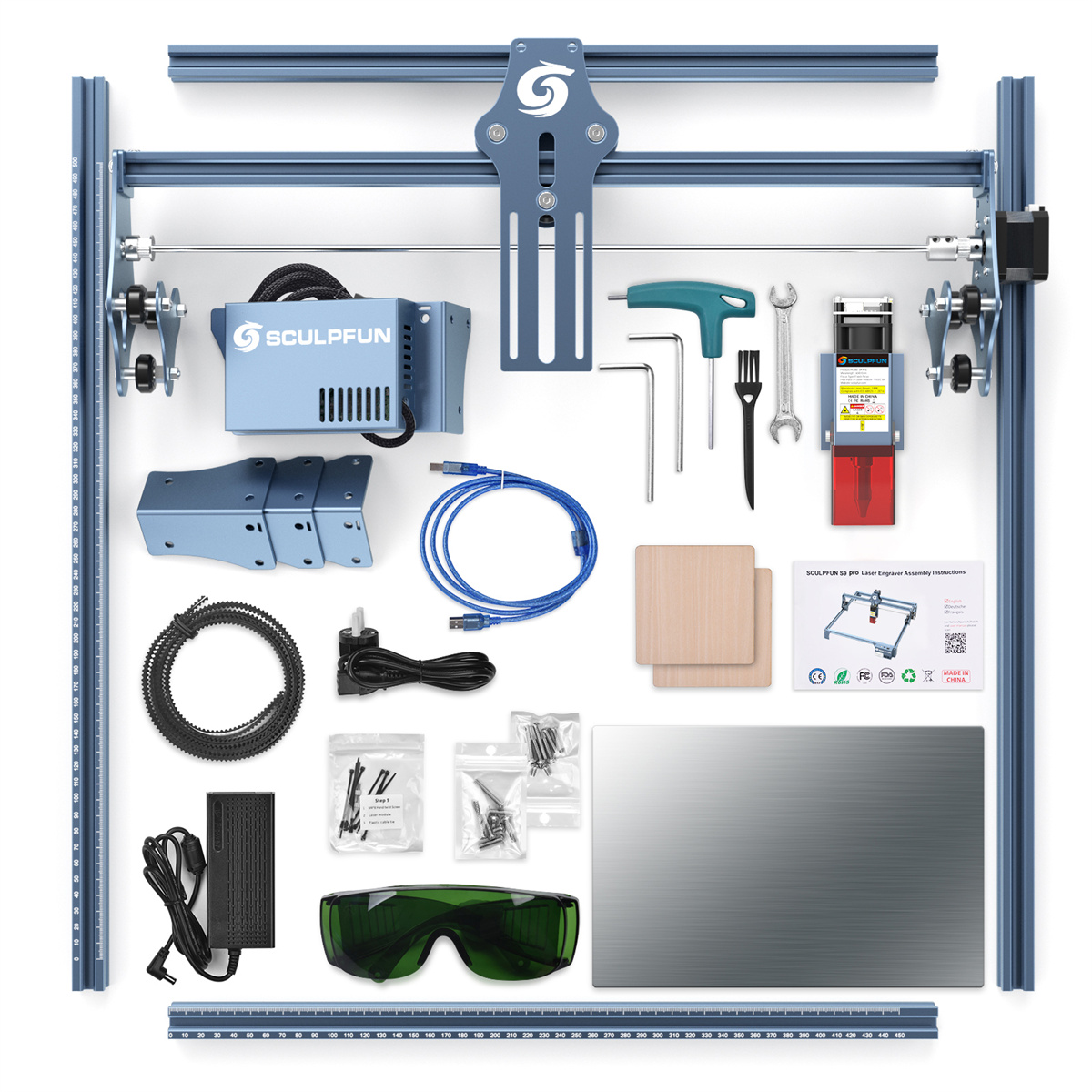

[S9 Pro 10W Laser Engraving Machine]:

1× X axis assembly
2× X shaft
2× Y shaft
1× Control box module set
3× Support feet
1× Laser module set
1× 12V 5A power adapter
1× Power cord
1× USB cable
Step 1~5 Screw installation package
2× Belt
1× T-shaped M5 screwdriver
1× L-shaped M4 screwdriver
1× L-shaped M3 screwdriver
10× Tie
1× 8-10mm nut wrench
1× Brush
1× Laser goggles
1× 3mm thickness 10x10cm wood board
1× 10mm thickness 10x10cm wood board

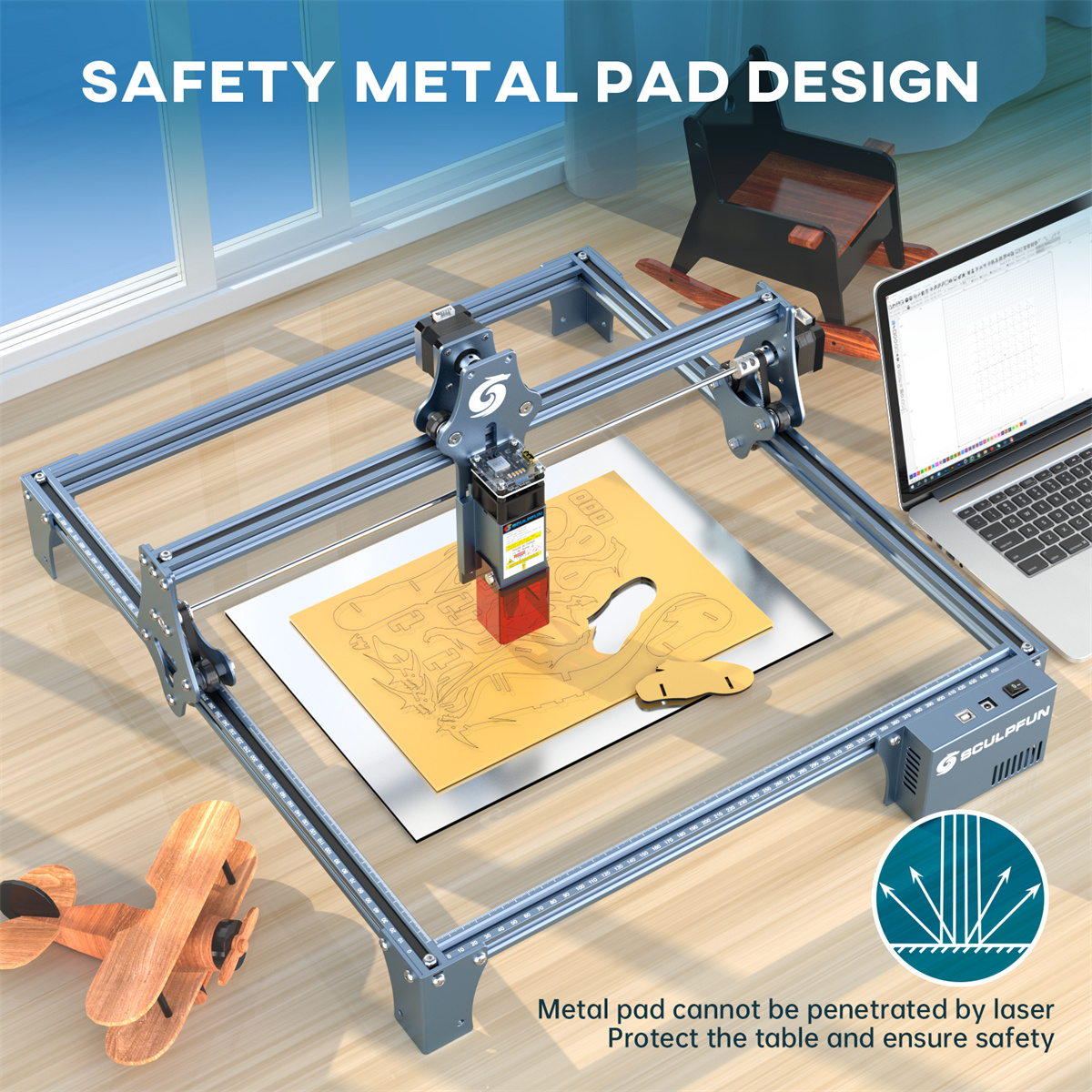

1× A4 size steel desktop protection pad

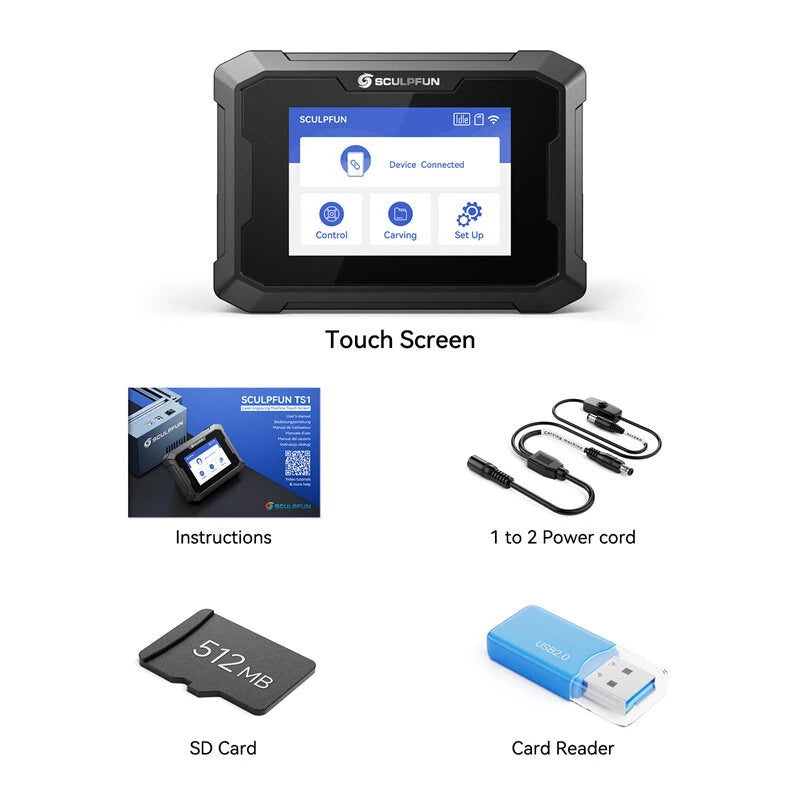

[TS1 3.5-inch Laser Engraver Touchscreen]:

1 x Touch Screen
1 x Power Cable
1 x SD Card
1 x Card Reader
1 x User Manual

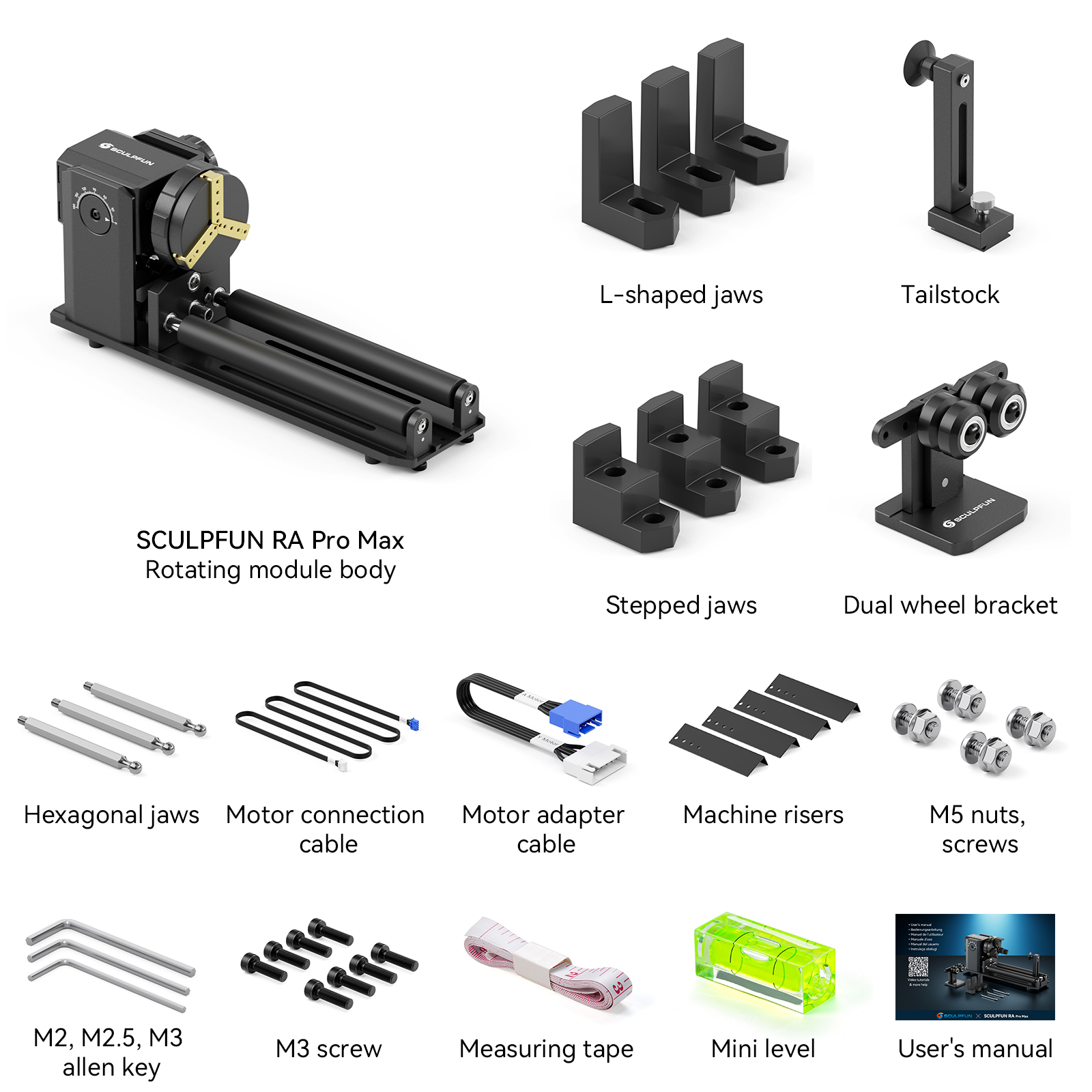

[RA Pro Max Roller]:

1 x RA Pro Max Rotary Chuck (Including roller)
3 Sets of Jaws
1* stepped jaws
1* L-shaped jaws
1* hexagonal jaws
1 x Cable + Measuring Tape Kit
1 x Screw Kit
1 x Mini Level
1 x Tailstock

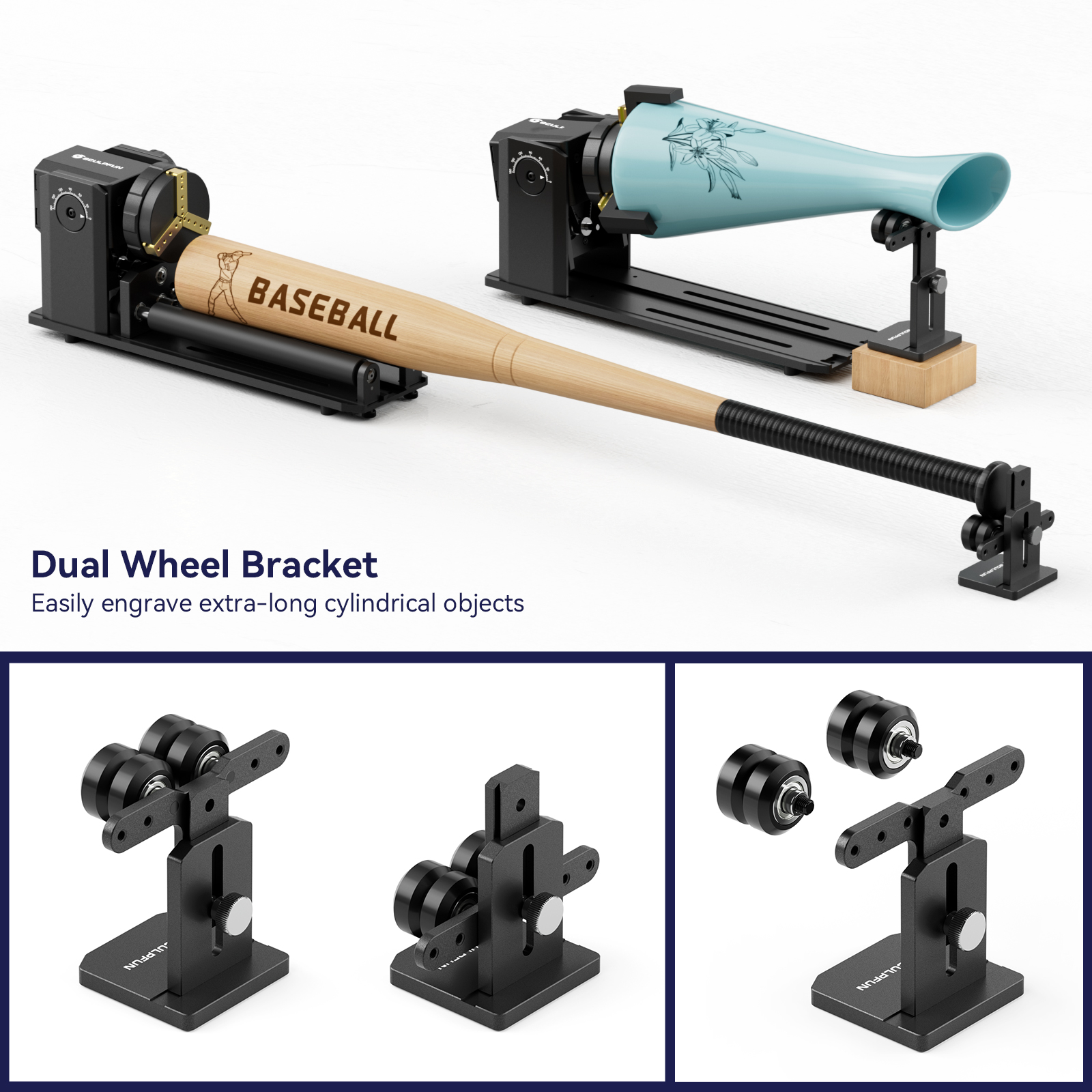

1 x Dual Wheel Bracket
4 x Machine Risers
1 x User Manual
