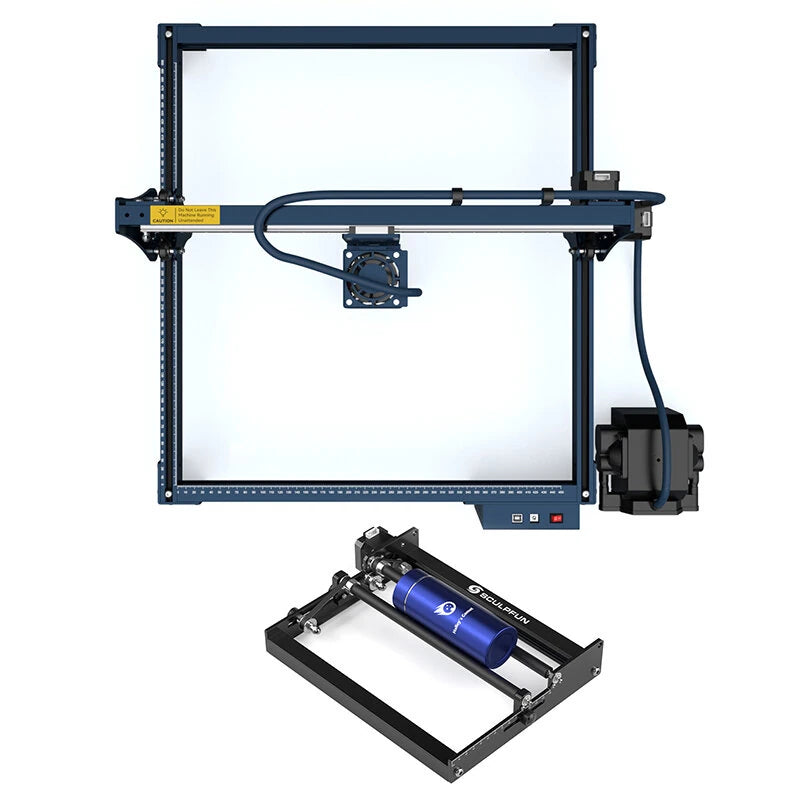

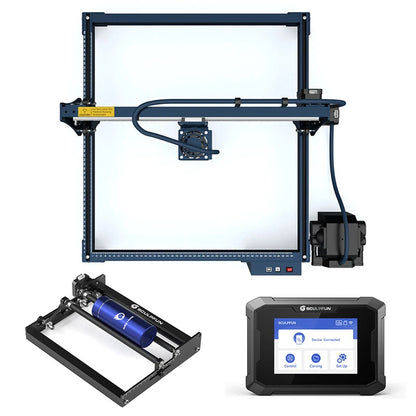

[EU Direct]SCULPFUN S30 Pro Max 20W Laser Engraver Cutter Optional Bundle with TS1 3.5 inch Control Terminal Touscreen or Laser Rotary Roller for DIY Engraving Cutting

$699.99 USD

~~$799.99 USD~~ $699.99 USD

Sale Sold out

Taxes included.

In stock

Type Engraver+Touchscreen Engraver+Rotary Roller Engraver+Touchscreen+Rotary Roller

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

Specifications:

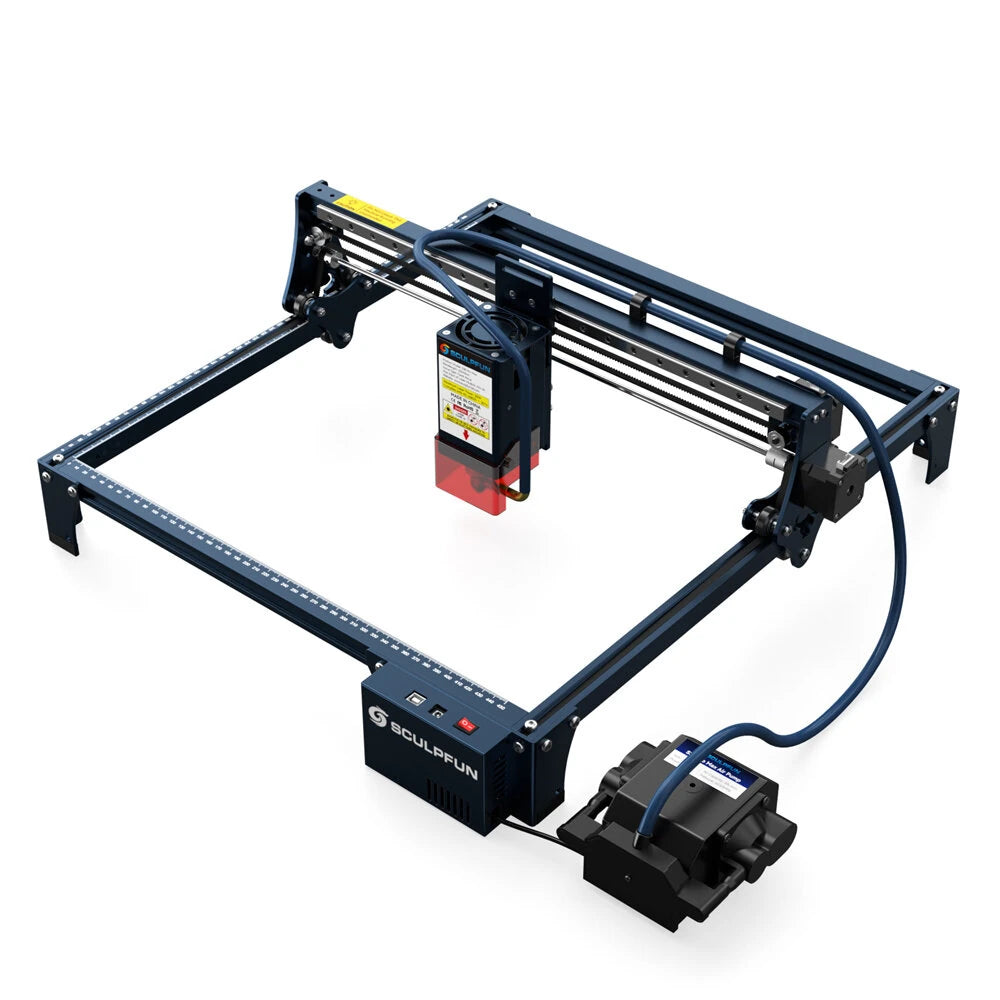

[SCULPFUN S30 Pro Max Engraver]:
Laser Information:
Diode laser output power: 20W (note that this is light energy not electrical energy)
Laser focus: 0.08x0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Engraving accuracy: 0.005mm

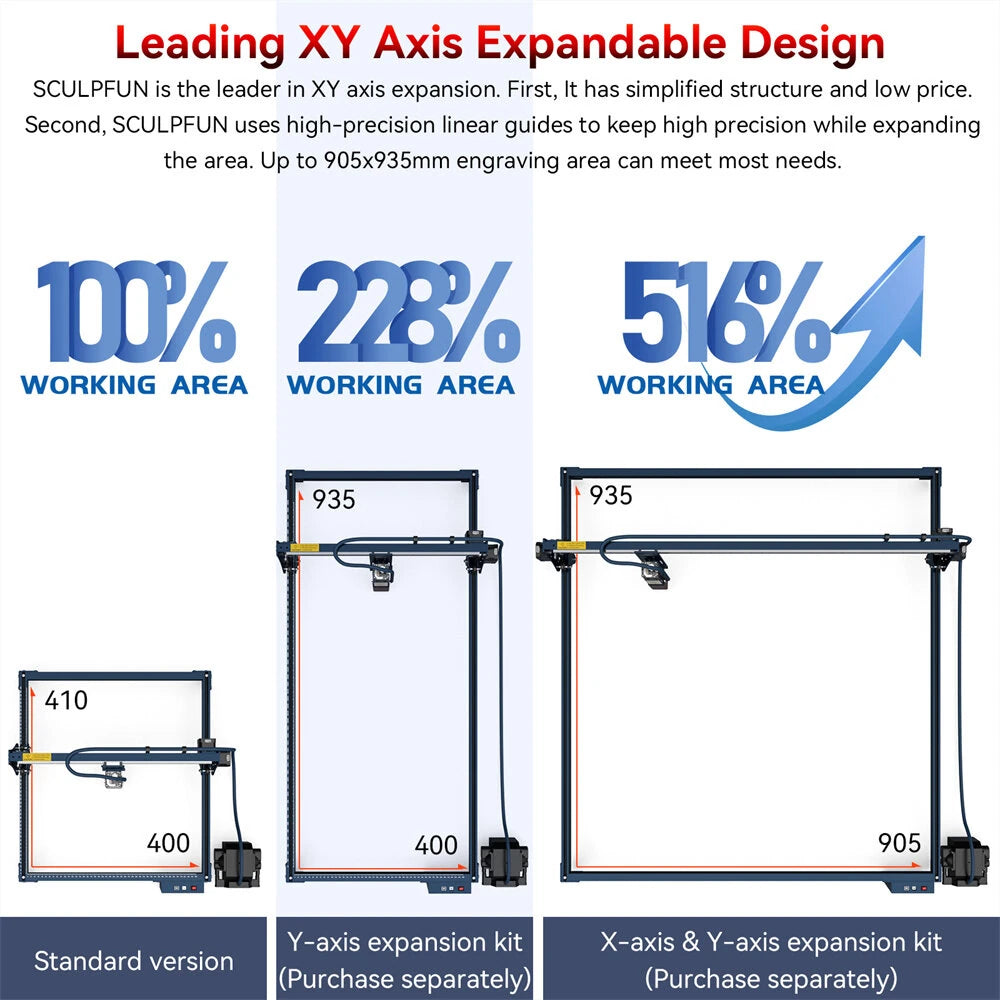

Engraving area size: the standard version is 370mm*363mm, which can be expanded to 935x400mm or 935x905mm
Machine power: about 120W
Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Motherboard: 32-bit air-assisted motherboard, reserve bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
Engraving material: all kinds of wood (including walnut, cherry and other highDensity wood), MDF, z1gzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, L1teFire, support Windows system,
Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or bluetooth wireless connection
Power supply:
Power Input: 100-240V AC, 50/60HZ Output: 24V 5A
Packing weight: 7.53kg
Packing size: 62.3*24*22.5cm
Certification: CE FCC RoHS FDA ICE certification

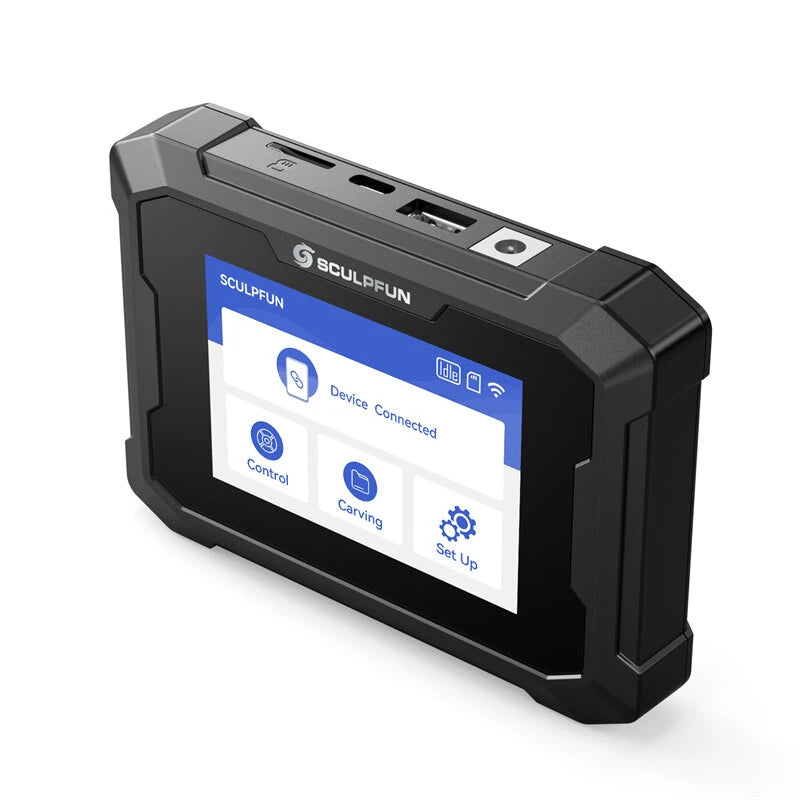

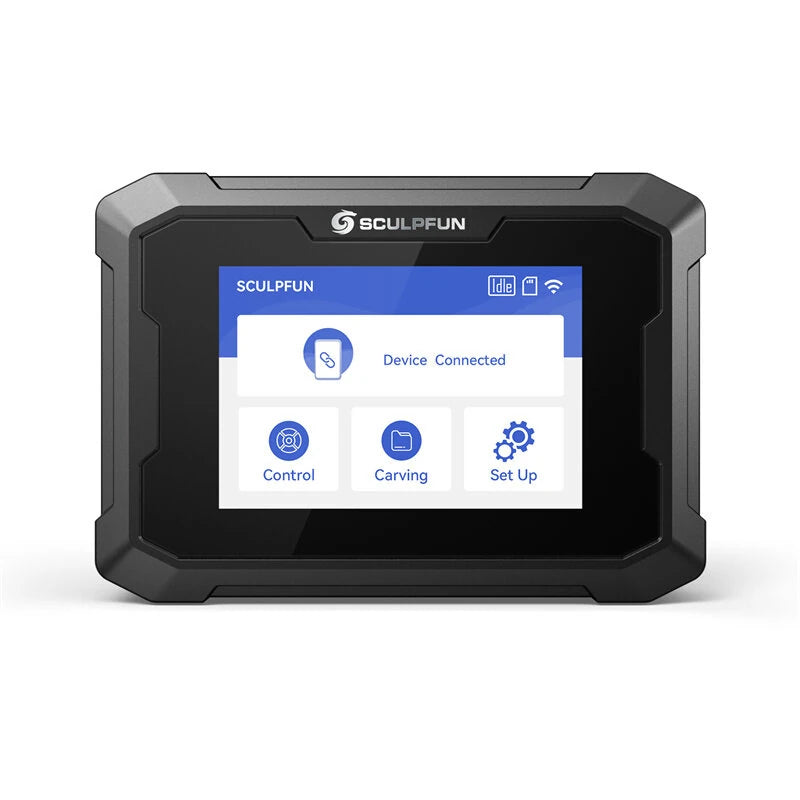

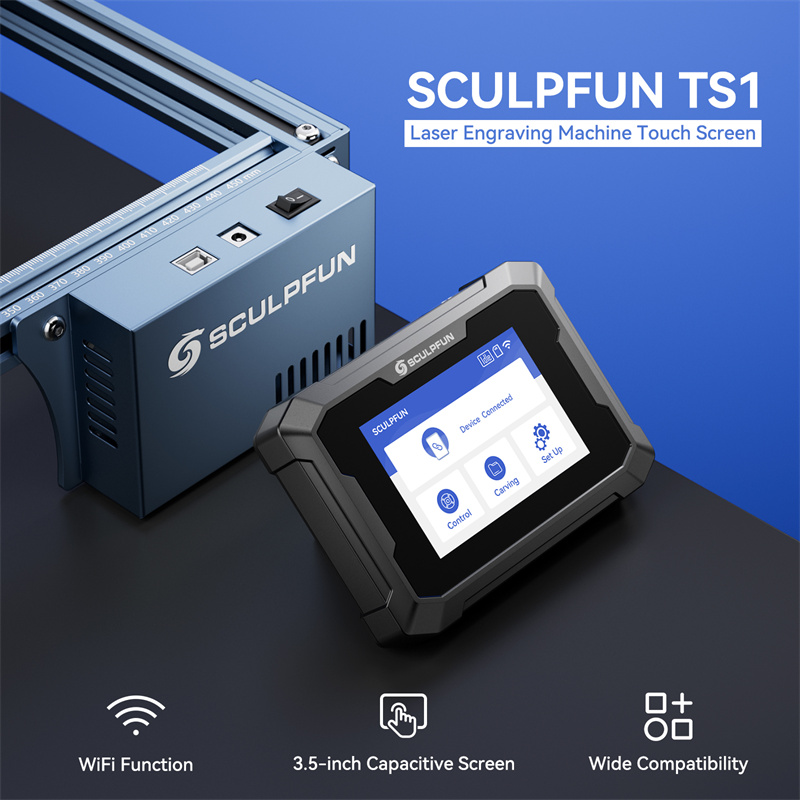

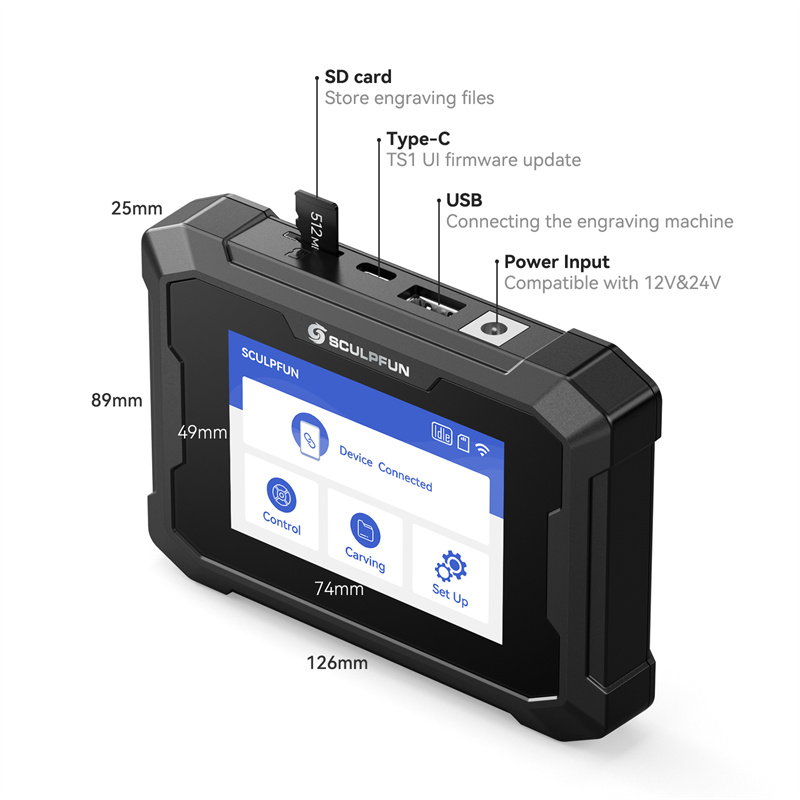

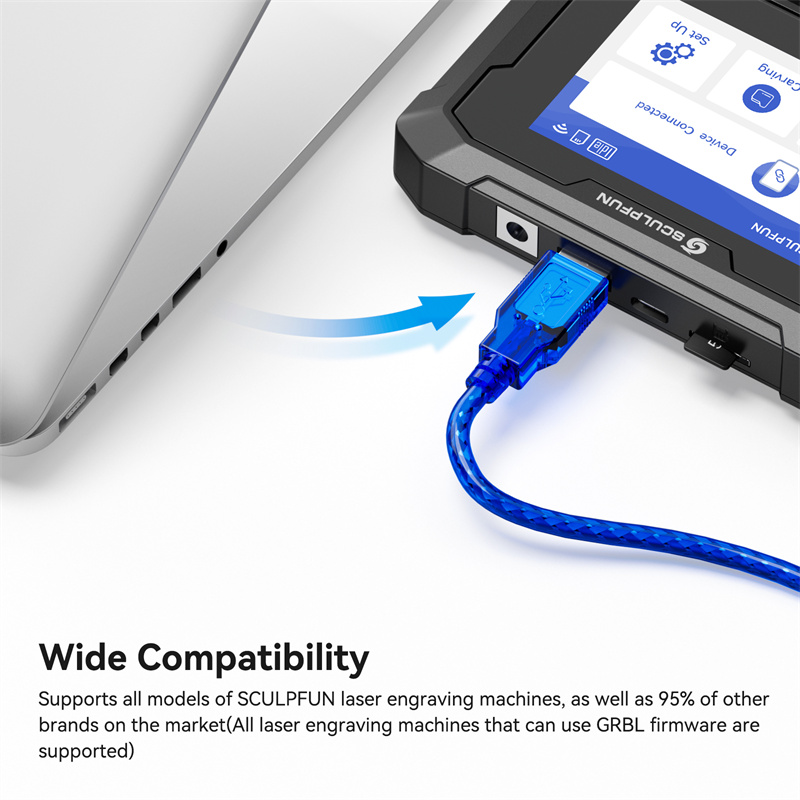

[TS1 Touchscreen]:
Product Model: TS1
Product Material: ABS + PC
Screen Size: 3.5 inches
Screen Material: Capacitive Touch Screen
Screen Resolution: 480*320
Product Size: 126 x 89 x 25 mm
Product Weight: 130g

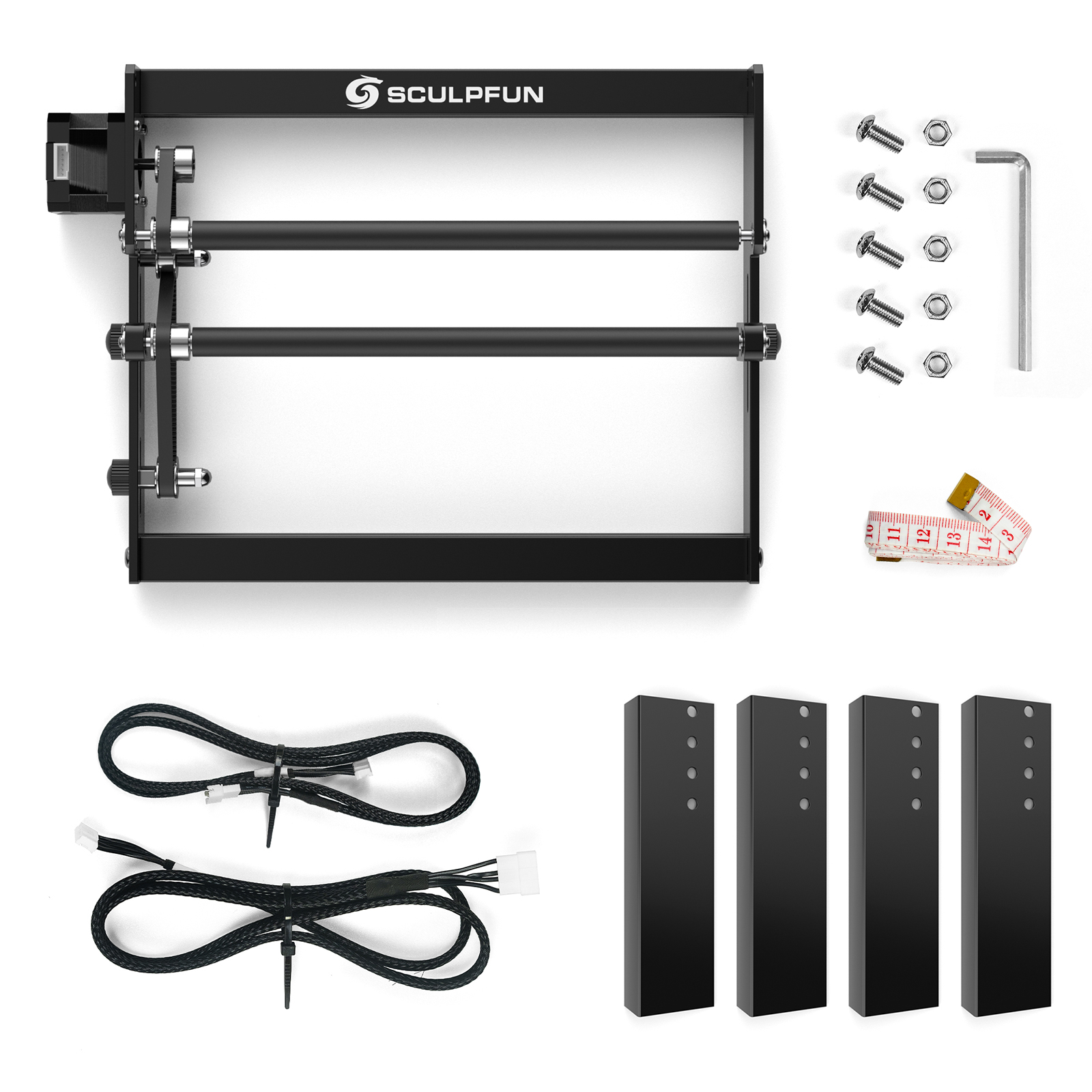

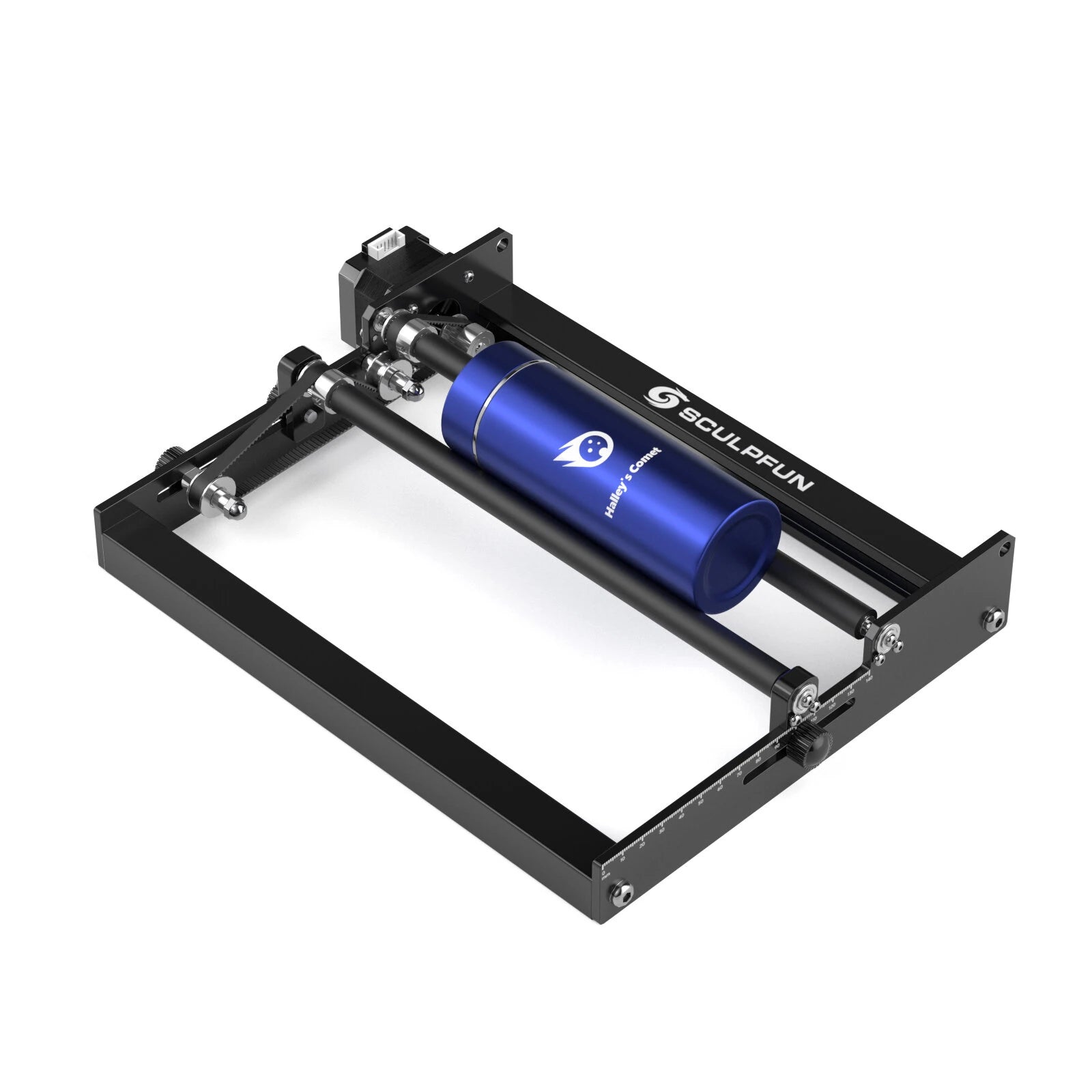

[Laser Rotary Roller]:
How to use: Take out the original Y-axis motor cable of the laser engraving machine, plug into SCULPFUN Rotary Roller , and you can start using it. There is no need to set parameter in software, because the surface linear speed of the roller is the same as the original Y-axis speed.
Available engraving space: cylinder diameter 6-150mm, cylinder length 0-230mm

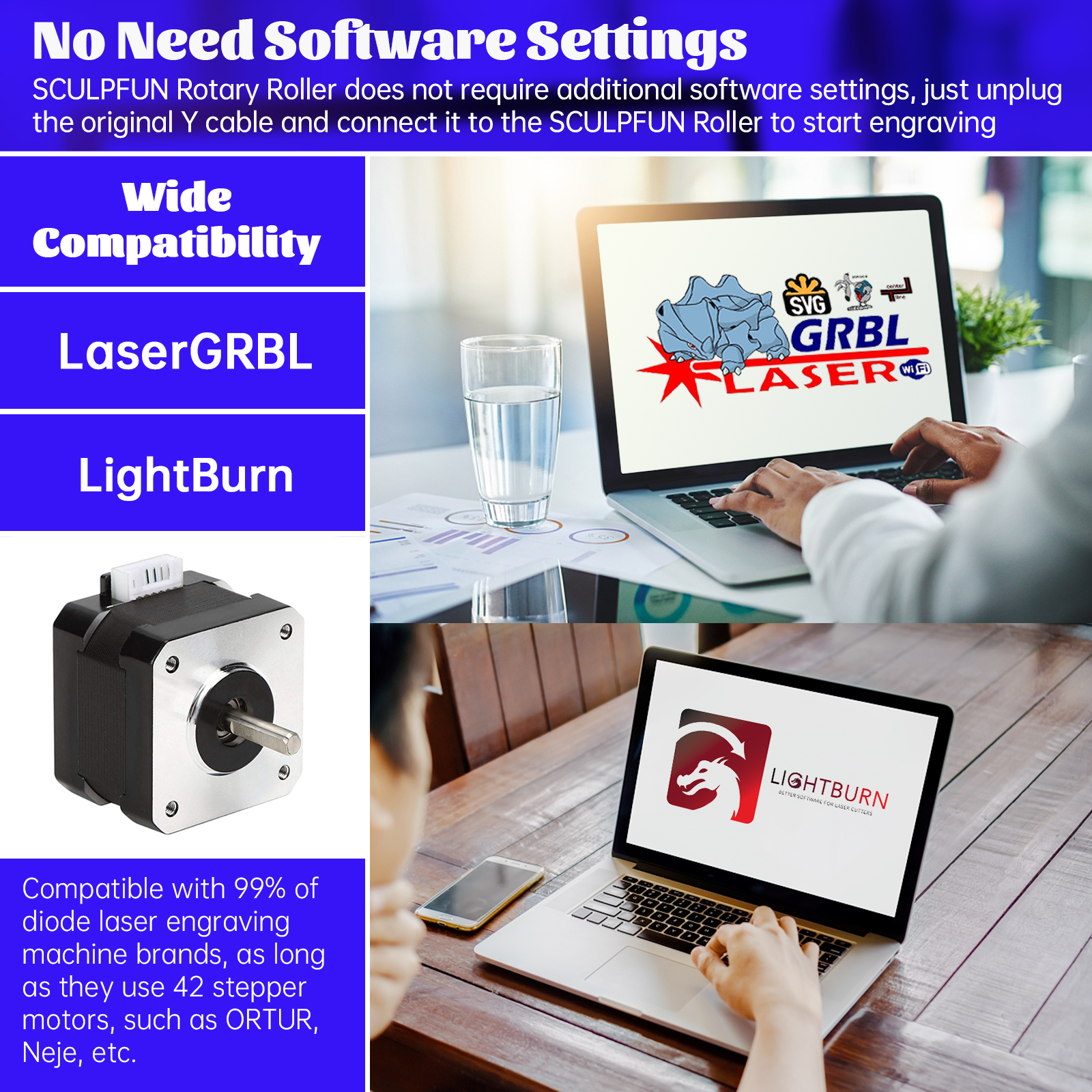

Compatible software: Lightburn, LaserGRBL, Benbox, GrblController, L1teFire, etc. There is no need to set up software because the surface linear ve1ocity of the roller is the same as the original Y-axis ve1ocity.
Compatible machines: suitable for all GRBL motherboard types of engraving machines, including SCULPFUN, Ortur, NEJE, ATOMSTACK and other engraving machines.
Adjustment of shaft spacing: The shaft spacing can be adjusted steplessly by sliding, and it can be fixed by hand-tightening screws.

Features:

[SCULPFUN S30 Pro Max Engraver]:

1. Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
2. Built-in high pressure air assist nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.

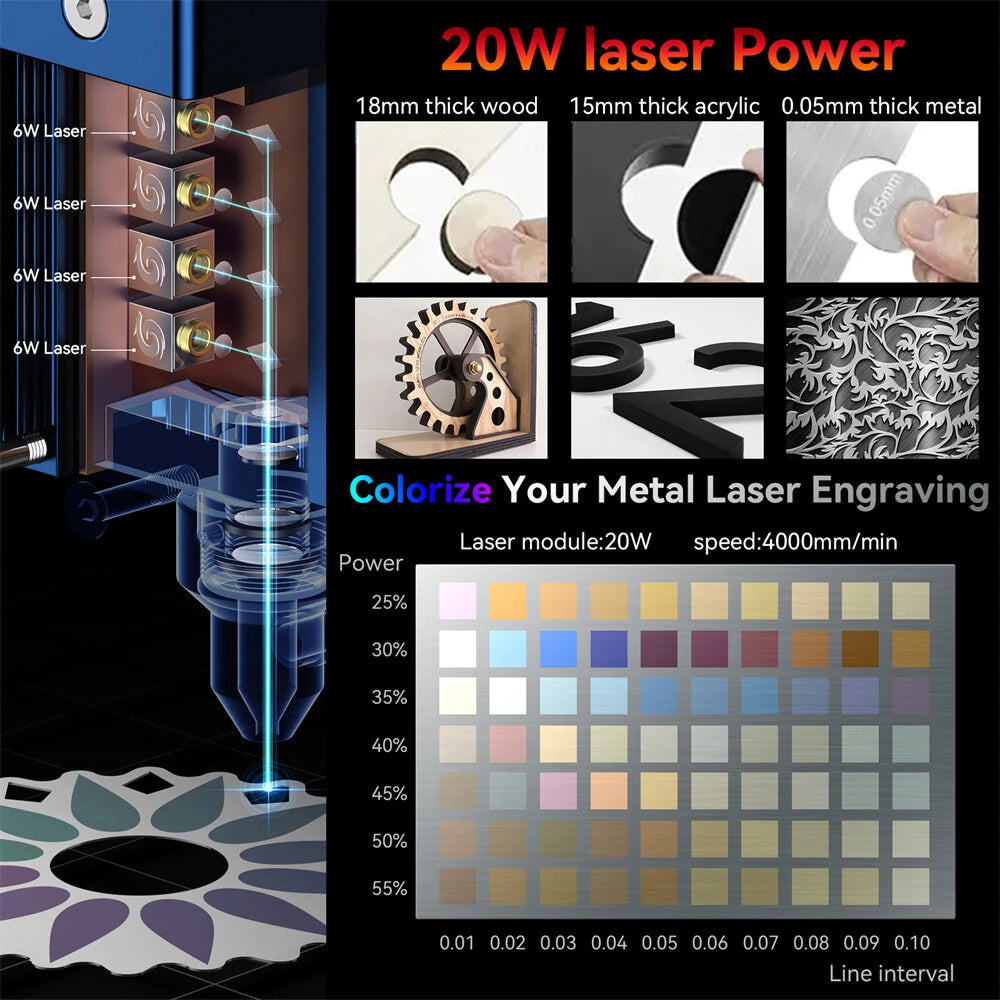

3. Ultra-th1n 5W, 10W, 20W three laser options: S30 series adopts u1tra-thin laser shaping technology, the laser focus is as thin as hair, very powerful for engraving or cutting. S30 5W laser is high cost-effective and can meet 90% of hobby needs; S30 Pro 10W laser is suitable for frequent cutting, do everything faster; S30 Pro Max 20W pursues the ultimate cutting speed, suitable for professionals, shops or factoriy.

[TS1 Touchscreen]:

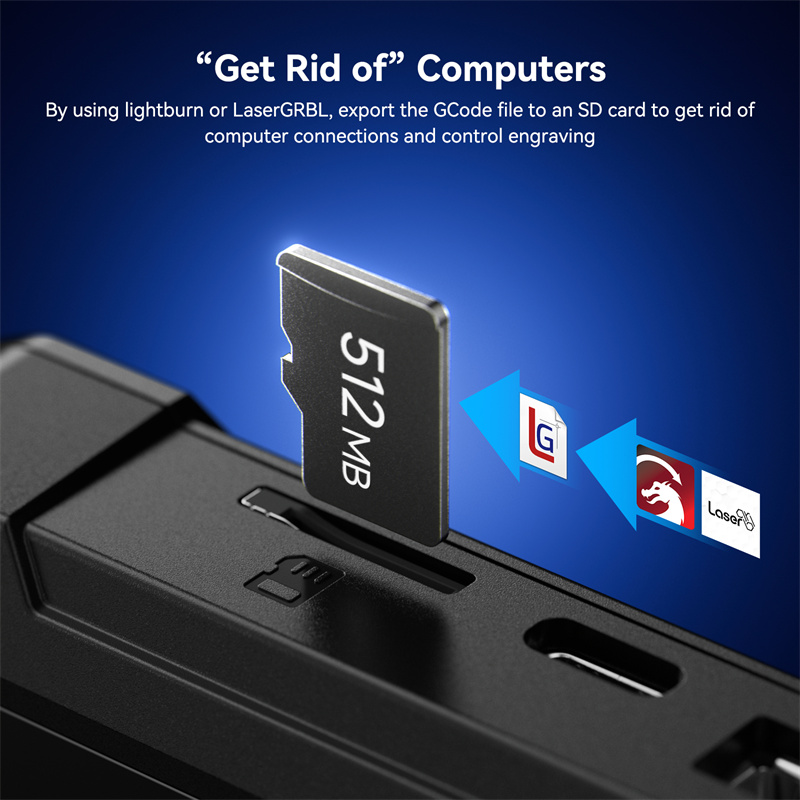

1.Offline Engraving Capability: The SCULPFUN TS1 allows users to copy engraving or cutting files directly to the SD card and complete the tasks offline using the 3.5-inch touchscreen. This feature enhances both convenience and practicality by eliminating the need for a constant computer connection.

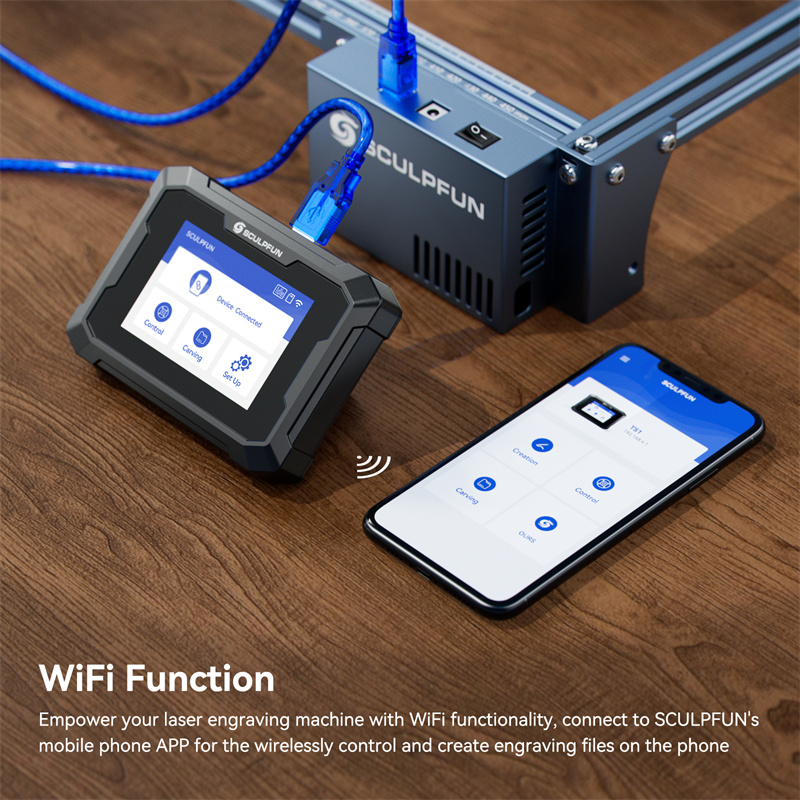

2.WiFi Connectivity: Upgrading any compatible laser engraver with WiFi functionality, the TS1 facilitates real-time slicing when paired with the SCULPFUN mobile app. This wireless connection makes the engraving process easy and quick without the need for direct computer use.

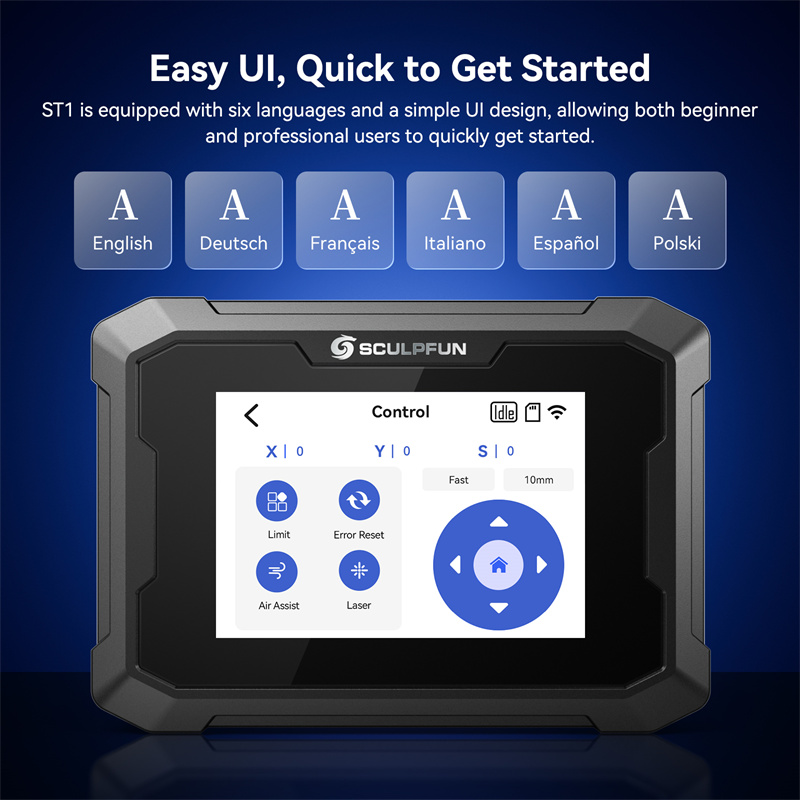

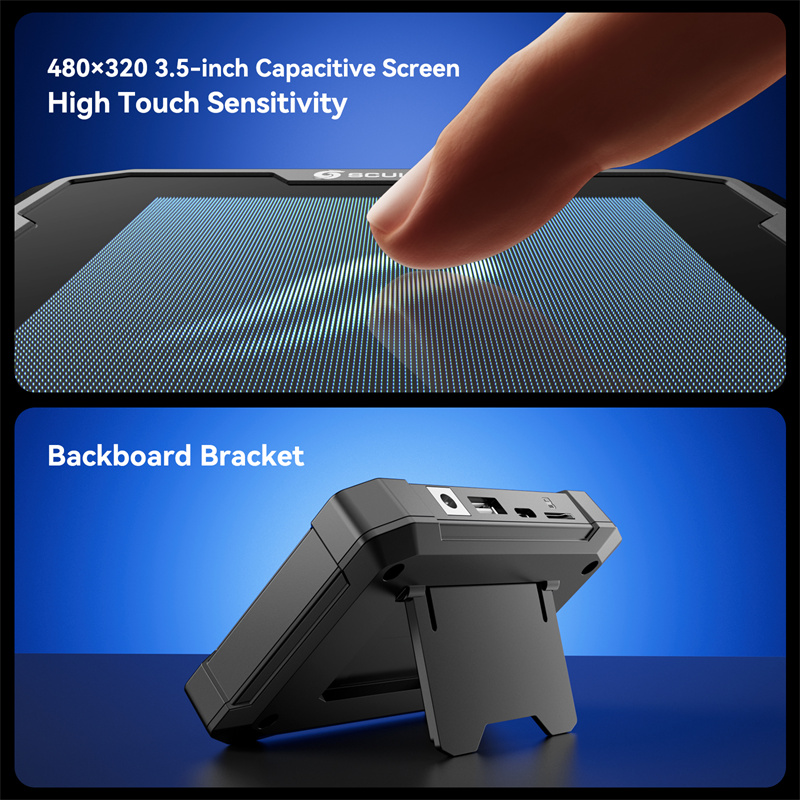

3.High-Quality Touchscreen Display: Featuring a 3.5-inch capacitive touch screen, the TS1 ensures clear readability and a smooth operating experience. The intuitive visual interface provides a seamless interaction, outperforming resistive touchscreens with its responsive touch capabilities.

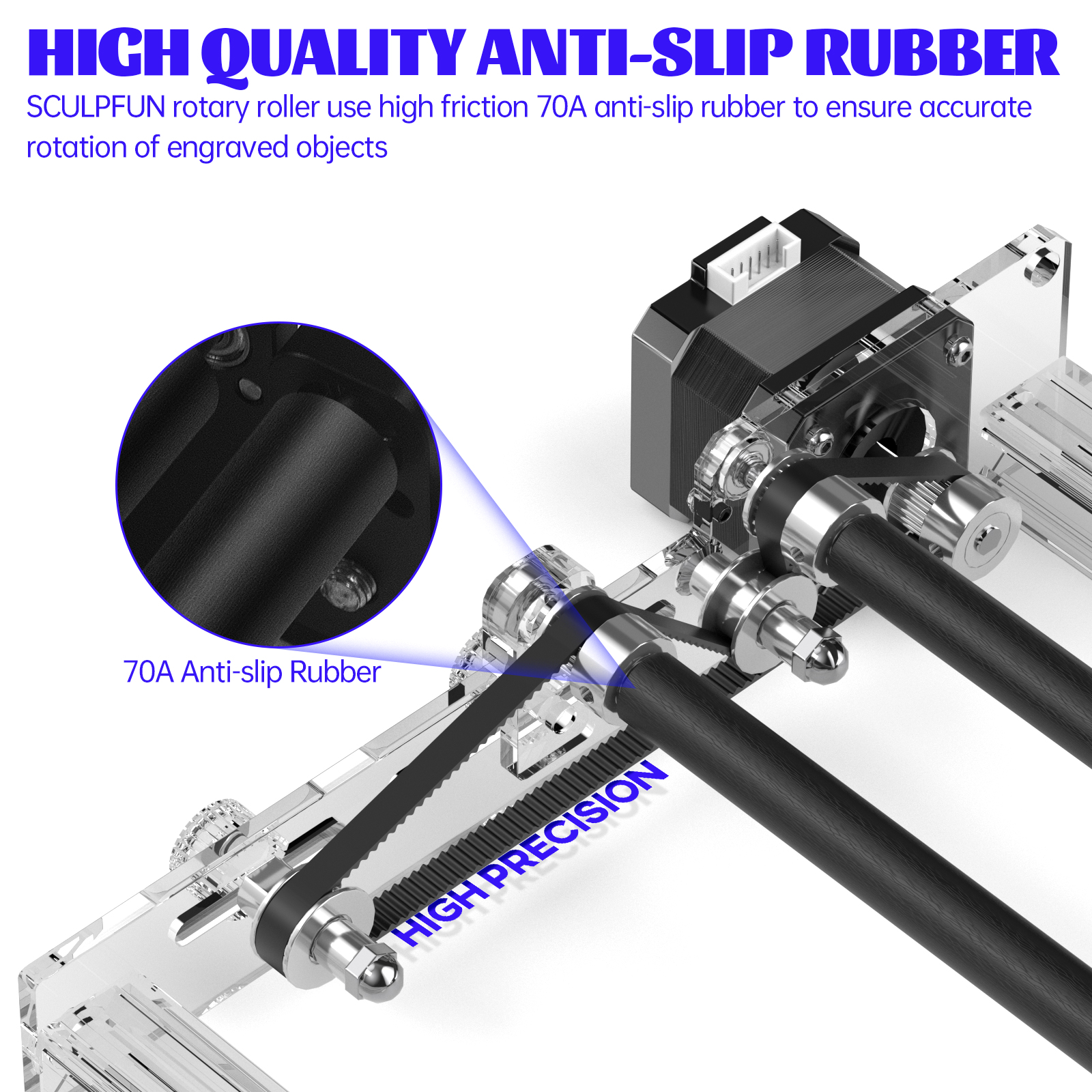

[Laser Rotary Roller]:

1. 100% pre-assembled, plug and play: the machine is 100% installed in the package, equipped with an adapter cable, and only needs to be connected to the Y-axis wiring of the laser engraving machine to engrave Cylindrical objects, such as pens, water bottle, etc.

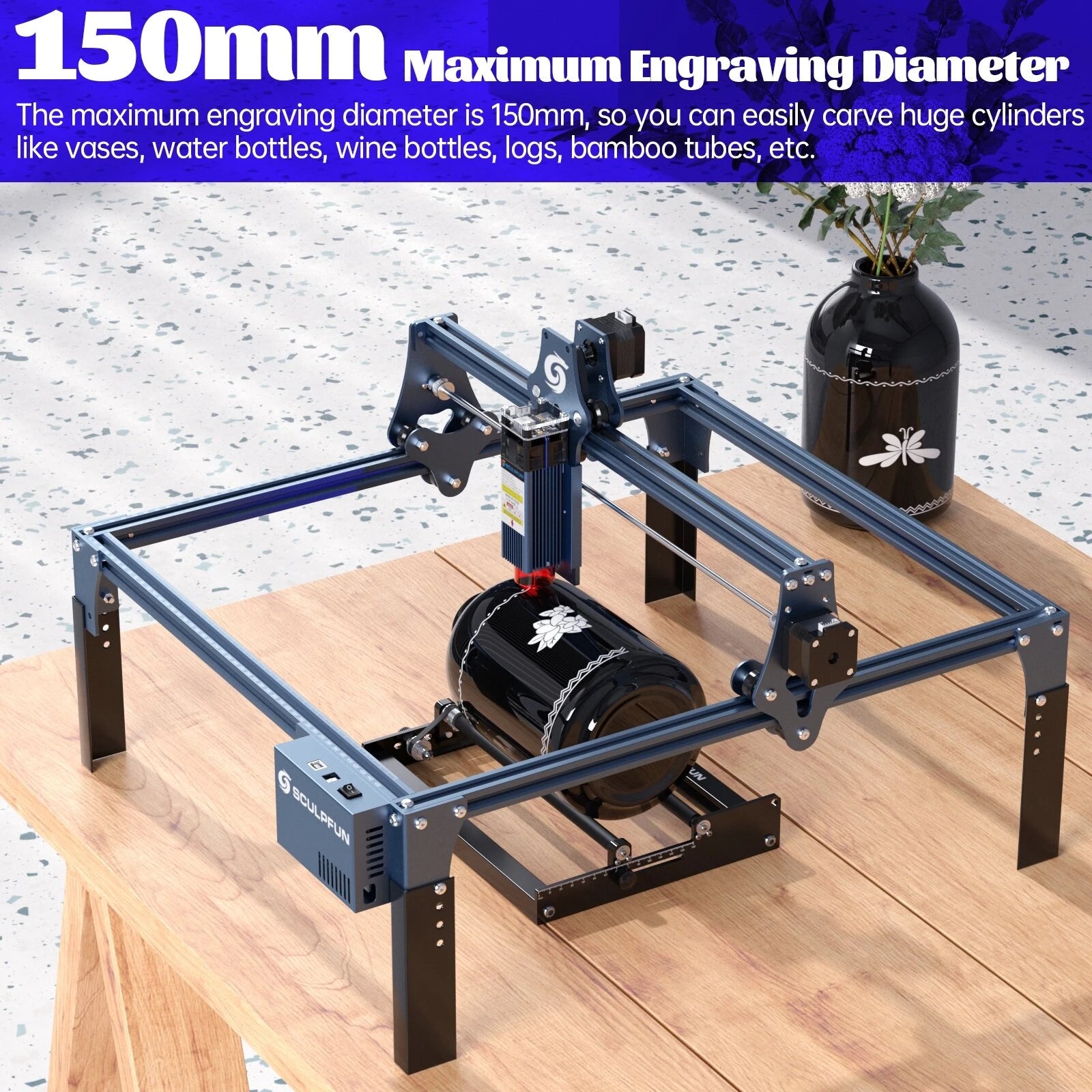

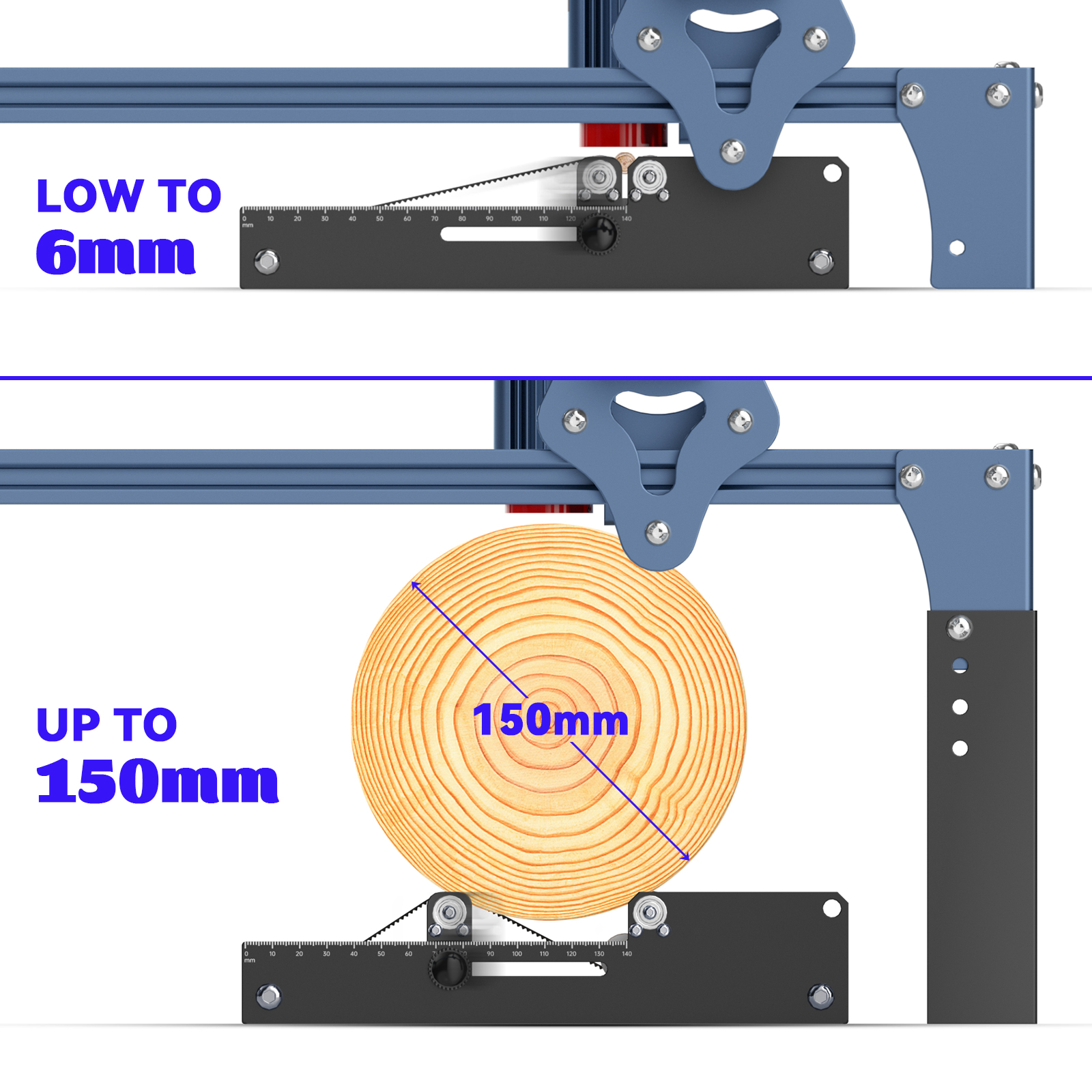

2. Huge engraving space and 4 raising feet: SCULPFUN roller base design is lower and stable, and equipped with 4 sturdy metal raising feet, so that it has a larger engraving diameter of 6-150mm, which can meet more engravings. need. Metal feet are more solid than plastic feet, and the machine is more stable when engraving.

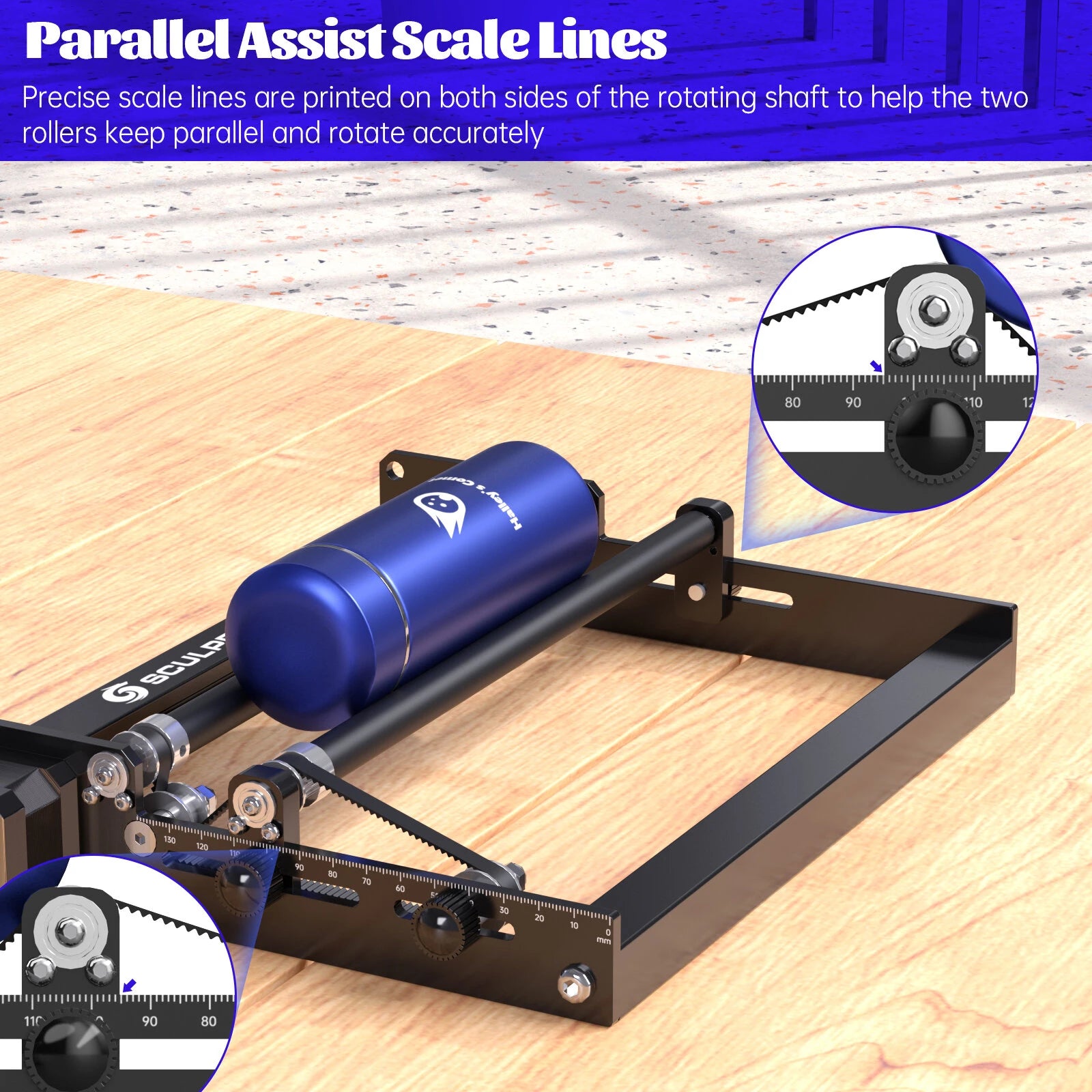

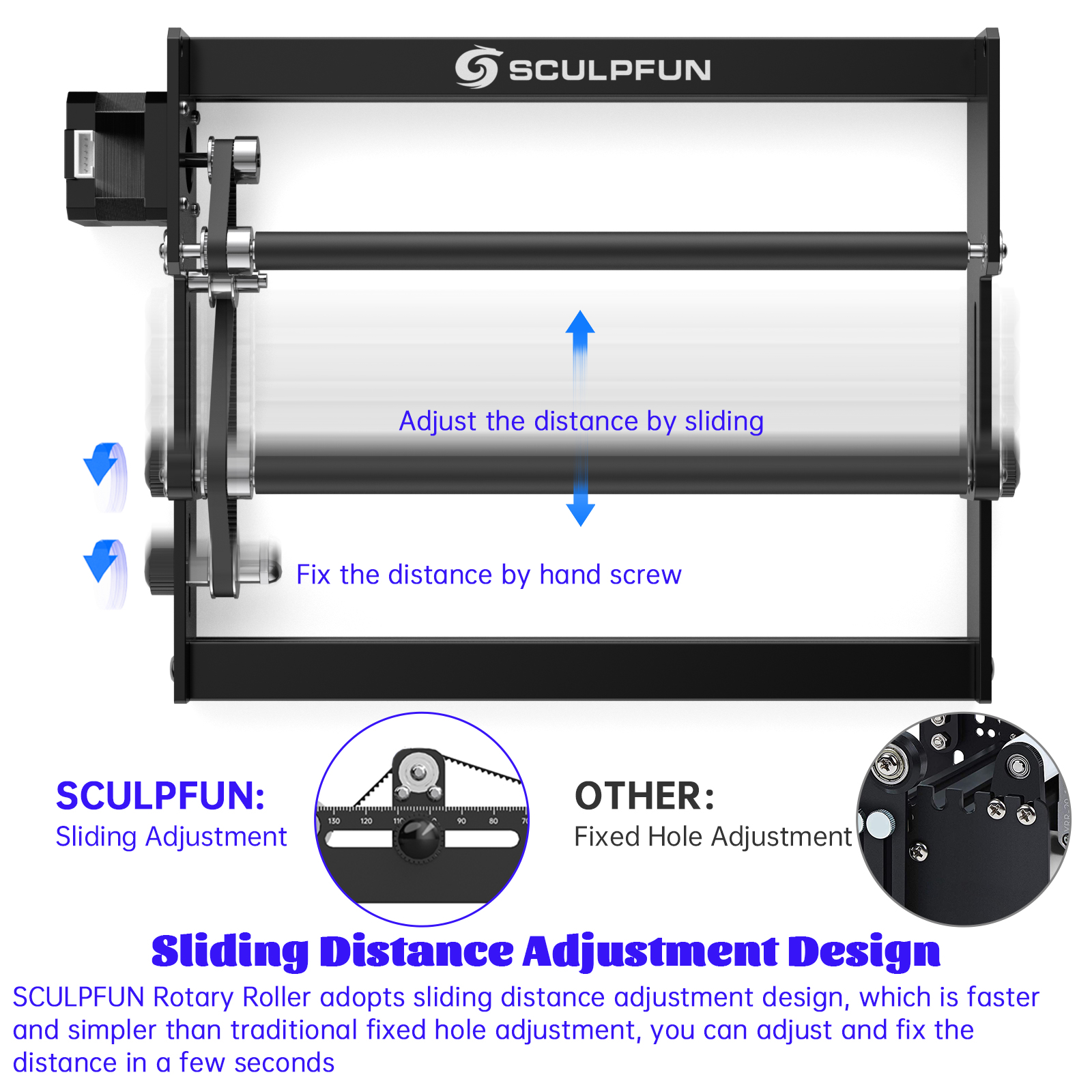

3. Sliding space adjustment: SCULPFUN roller adjusts the size of the space between the two rubber rollers by sliding, and fixes the roller by handscrew, which is simpler and faster than the traditional multi-stage fixing hole adjustment.

Package Include:

Please note the set you select, as different set contain different products. Please be aware of this when purchasing.

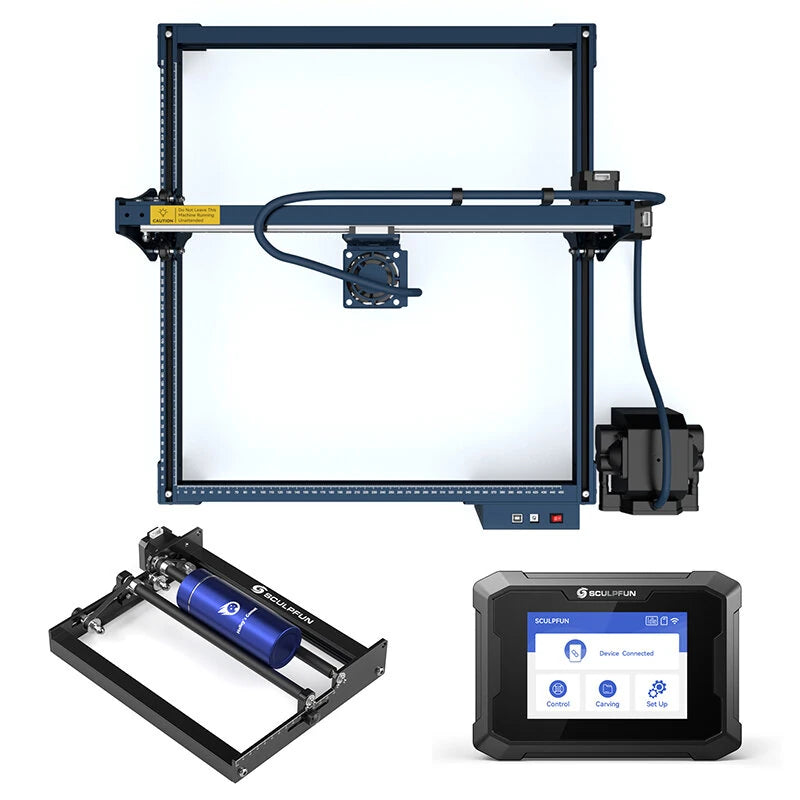

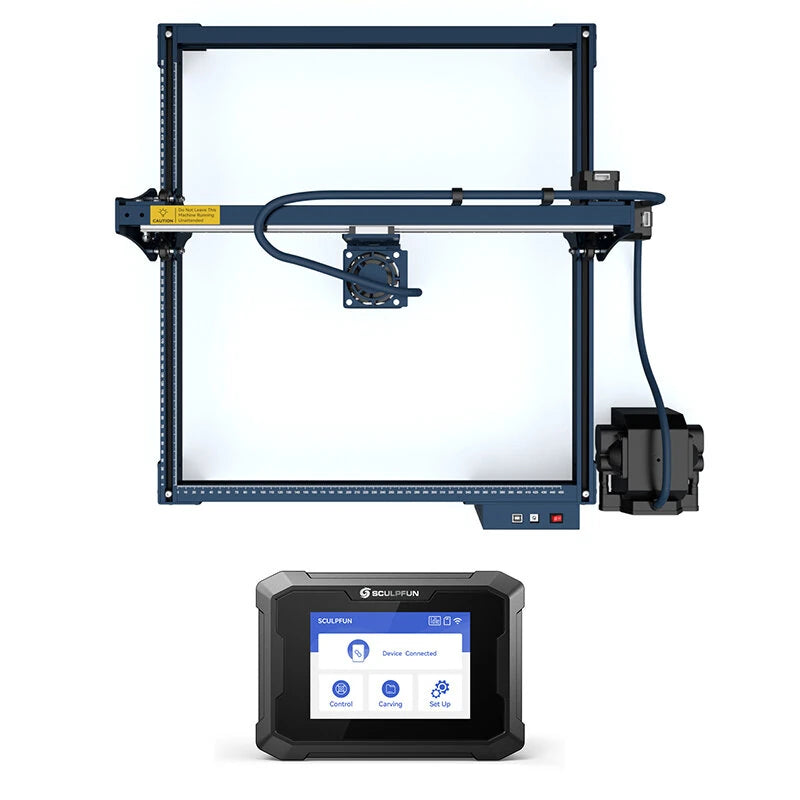

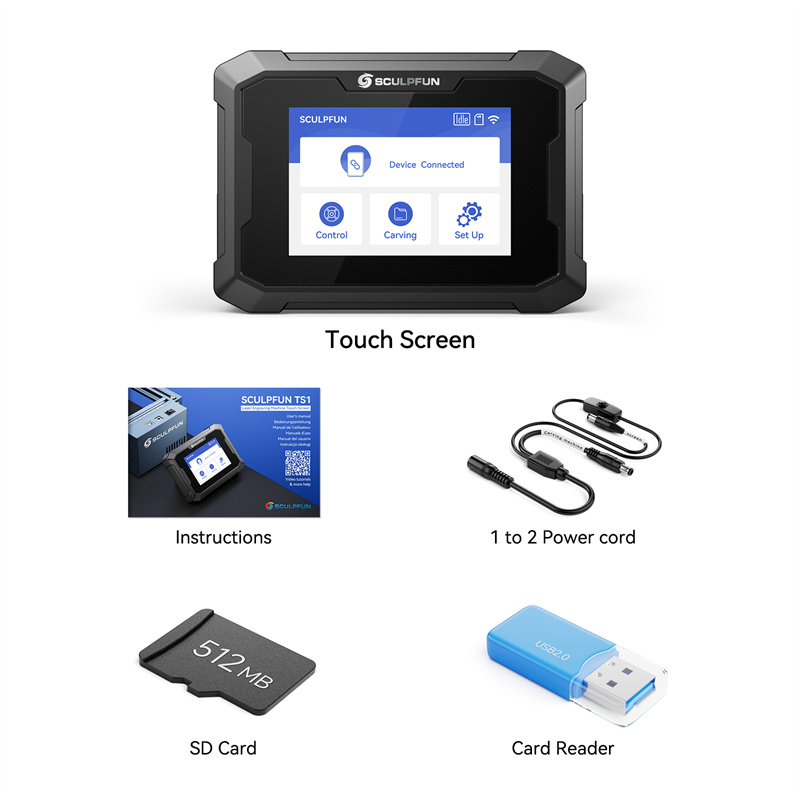

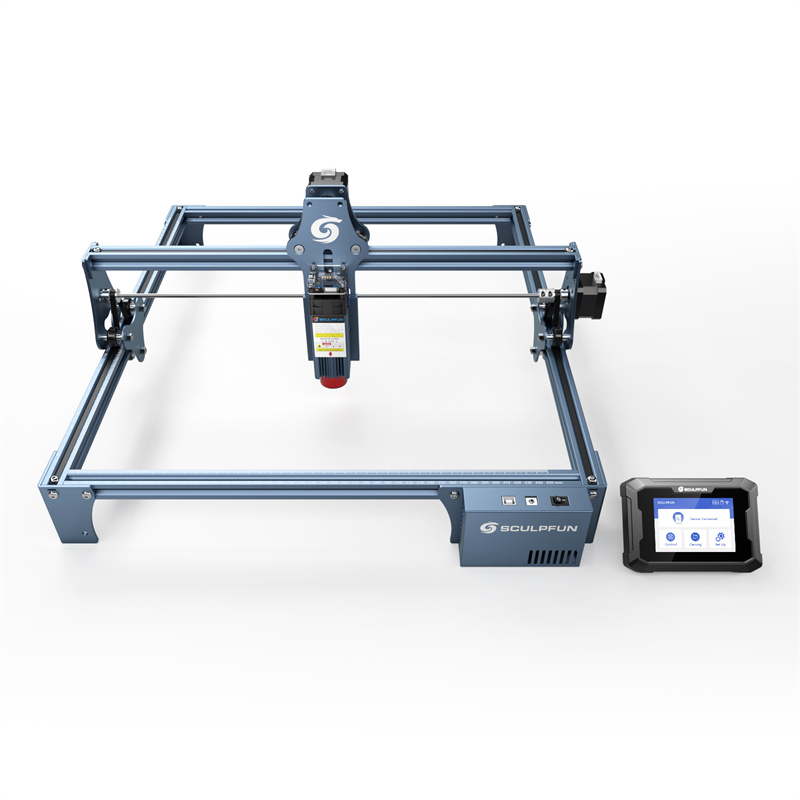

Set 1:S30 Pro Max+TS1 Touchscreen

Set 2:S30 Pro Max+Rotary Roller

Set 3:S30 Pro Max+Rotary Roller+TS1 Touchscreen

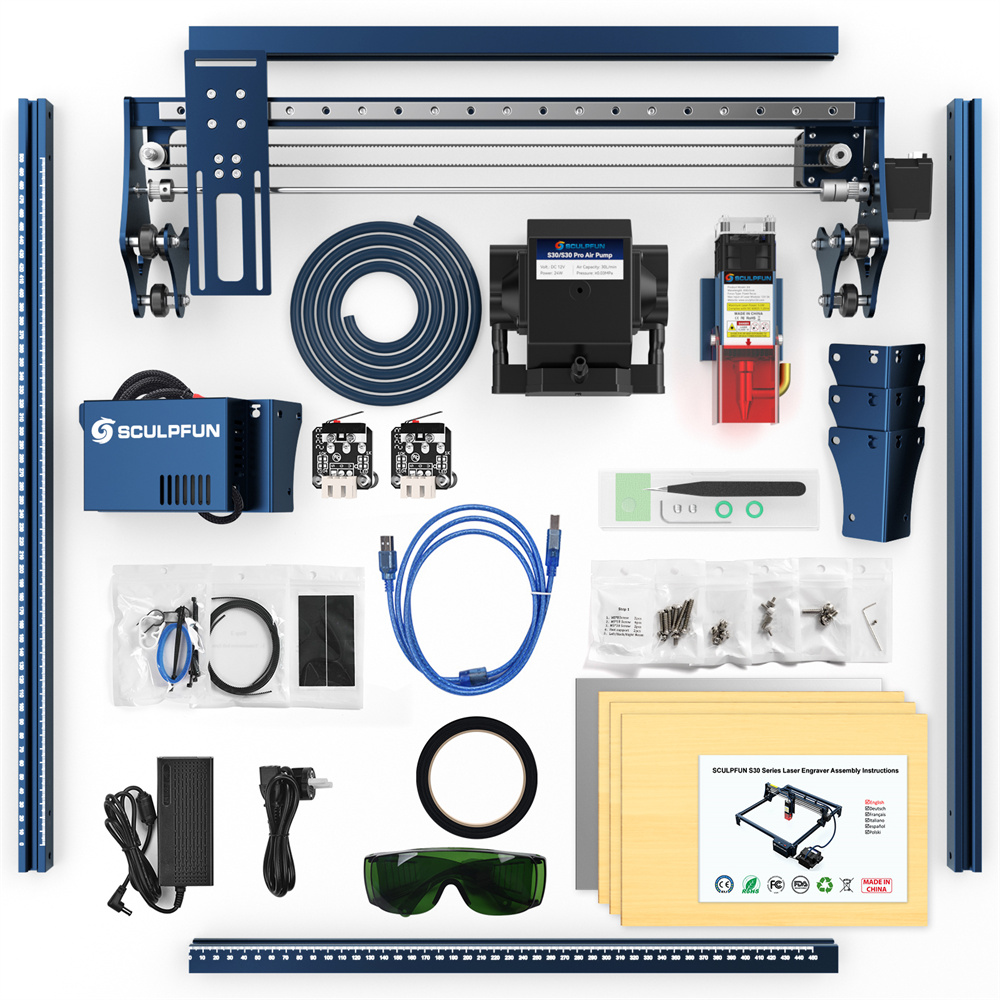

[SCULPFUN S30 Pro Max Engraver]:

1× S30 Pro Max laser
1× Laser Repair Kit
1×12V automatic air pump
3x A4 size 3mm wooden board
2× Limit Switch
1× 24V 5A power adapter
1x power cord
1× USB cable
1× Air tube
1× Installation Tool Kit
1× Laser Goggles
1x A4 metal backing plate
Step 1-6 Install the package
1× Manual
1x X-axis assembly
2x X profiles
2x Y profiles
1x Control Box Assembly
3x support feet
