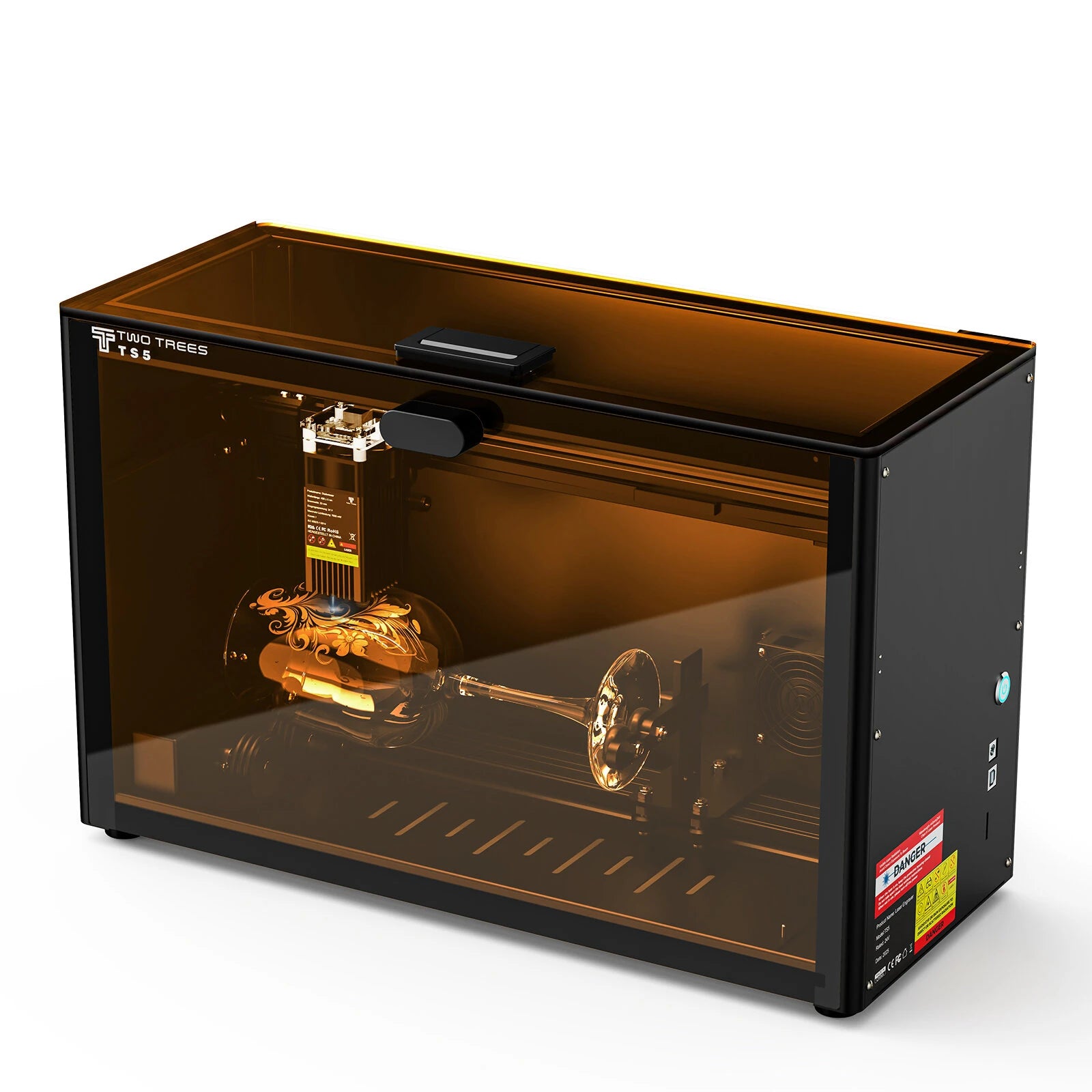

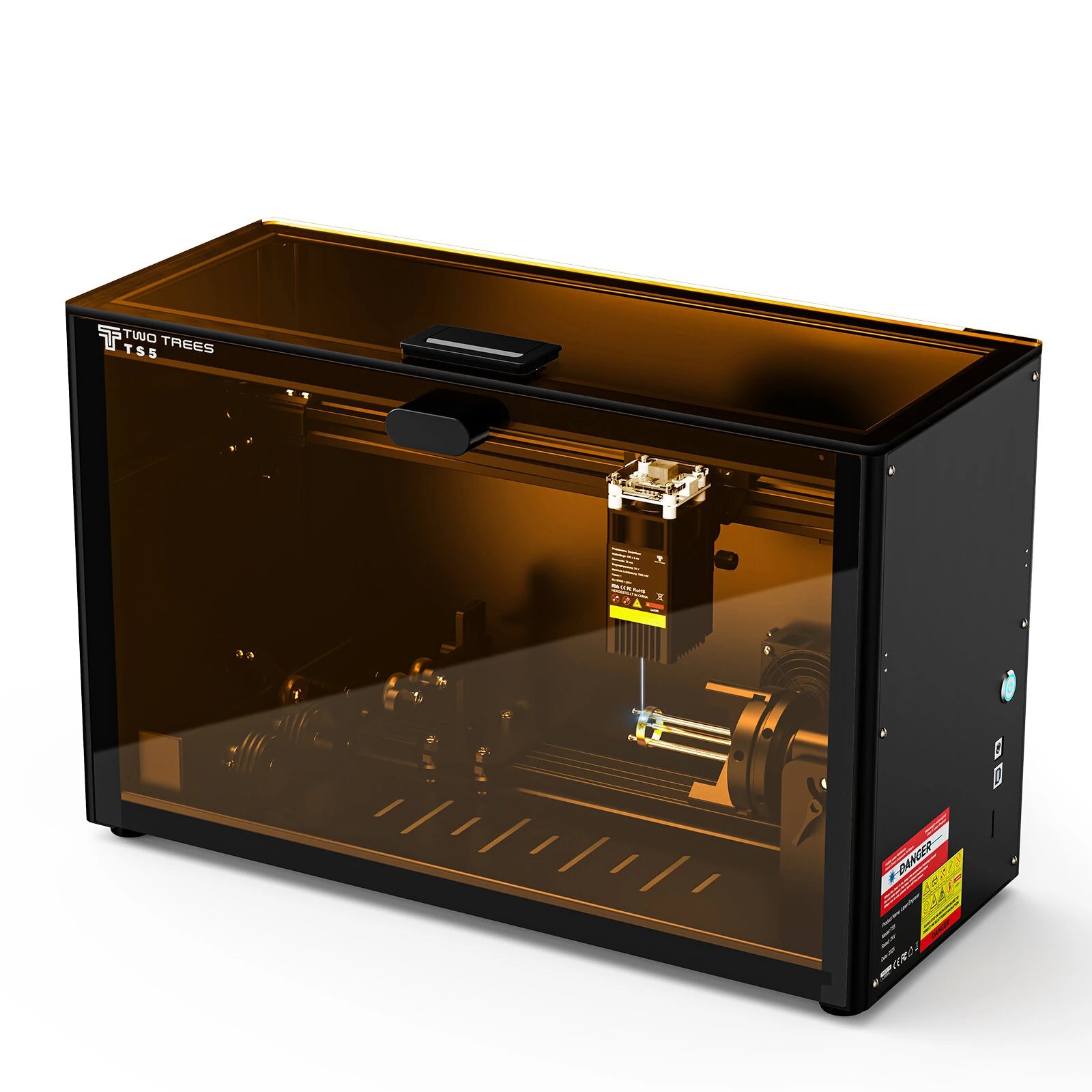

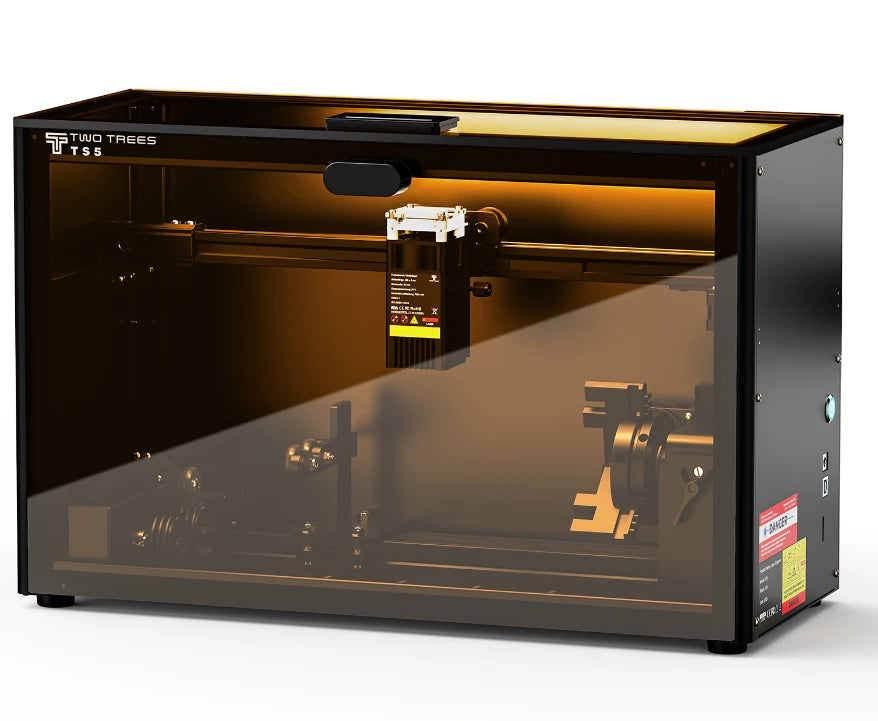

[EU Direct]TWO TREES TS5 4-in-1 Rotary Laser Engraver 10,000 mm/min Engraving Speed Eye Protaction Enclosed Design Laser Machine for Cups Rings Balls

[EU Direct]TWO TREES TS5 4-in-1 Rotary Laser Engraver 10,000 mm/min Engraving Speed Eye Protaction Enclosed Design Laser Machine for Cups Rings Balls

$499.00 USD
$599.00 USD $499.00 USD
Sale Sold out
Taxes included.

In stock

Plug


Basic parameters
 Name: Laser Engraving Machine
Model: TS5
Forming technology: Laser engraving
Main color: Black
Main material: Aluminum + high-carbon steel
Product dimensions: 480x200x298mm
Working range: 249x123x123mm
The diameter of the external clamping size of the chuck is 26 to 140mm
The diameter of the clamping size inside the chuck is 15 to 110mm
The adjustable tilt Angle of the chuck is from -8 ° to + 8°
Net weight of the product: 9.13Kg
Product gross weight: 10.55Kg
Packaging dimensions: 553x280x387mm
Laser module parameters
 Power supply mode adapter
Switching power supply parameters: 100-240V ~ 50/60Hz 2.5A 24V⎓2.5A
Input voltage: 24V
Electric power: 60W
Optical power: 7000mW
Wavelength: 450±5 nm
Spot size: 0.035*0.1mm
Motherboard parameters
 Motherboard model: MKS LTS V1.3
Motherboard chip: ESP32-S3-WROOM-1U
Firmware version: _LKS_TS5_2025041002
X-axis drive A4988
Bluetooth: Not supported
TF memory card: Supported
USB port: Supported
WIFI: Supported
Functional parameters
 Limit reset to zero: Not supported
Power-off resumption of carving: Not supported
Returning to the origin after carving: Supported
Motion control: Supported
Screen control: Optional
Gas-assisted: Optional
Adjustment of optical power: Supported
External exhaust interface: Supported
Mechanical parameters: X-axis motor model 42 Stepper motor: 17HS3401S(D-axis)
Chuck shaft motor model 42 stepper motor: 17HS2408S(D-axis)
Roller shaft motor model 42 stepper motor: 17HS2408S(D-axis)

Other parameters


 Motion structure type: XY dual-axis structureDrive synchronous belt model: 2GT-6mmX/ Y-axis positioning accuracy: 0.1mmMaximum speed: 10,000 mm/minEngraving software: LaserGRBL(Windows), Lightburn(Common)Supported systems: MacOS/Windows/LinuxCompatibility parametersSoftware languages: Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, etcThe engraving software supports the following formats: lbrn, BMP, JPG, PNG, and GCODEEngraving file format:.ncSafety certifications: CE/FCC/ROHS, CE-EMC, CE-LVD, CE-RED, CE-MD, EN60825-1EN60825-4, ROHS, IEC60825, FCC-Sdoc, FCC-ID, FDAEngraving environment temperatureEnvironmental parameters: 5℃ to 40℃Engraving environment humidity: 20-60%R

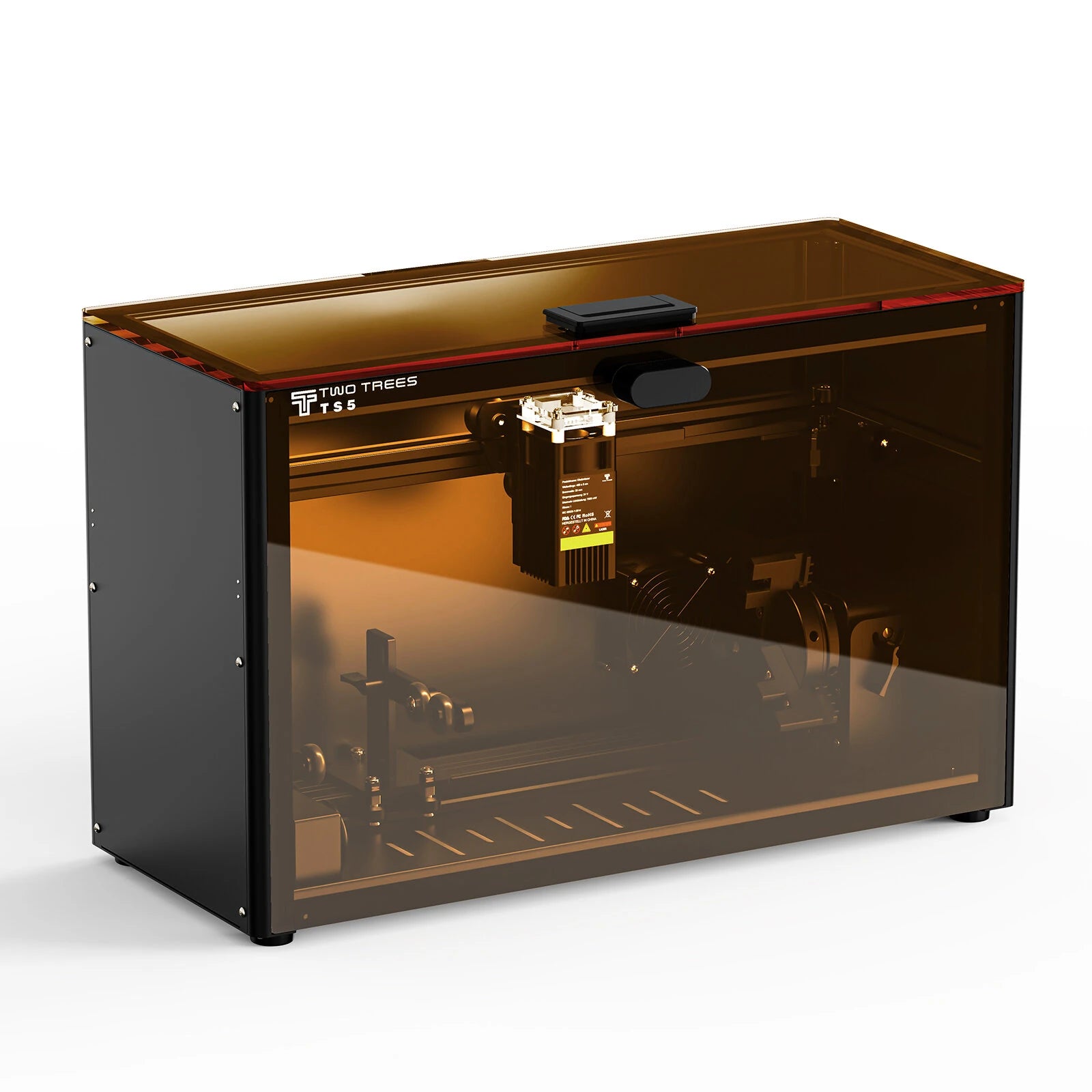

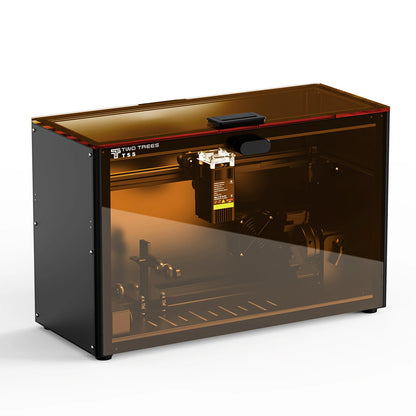

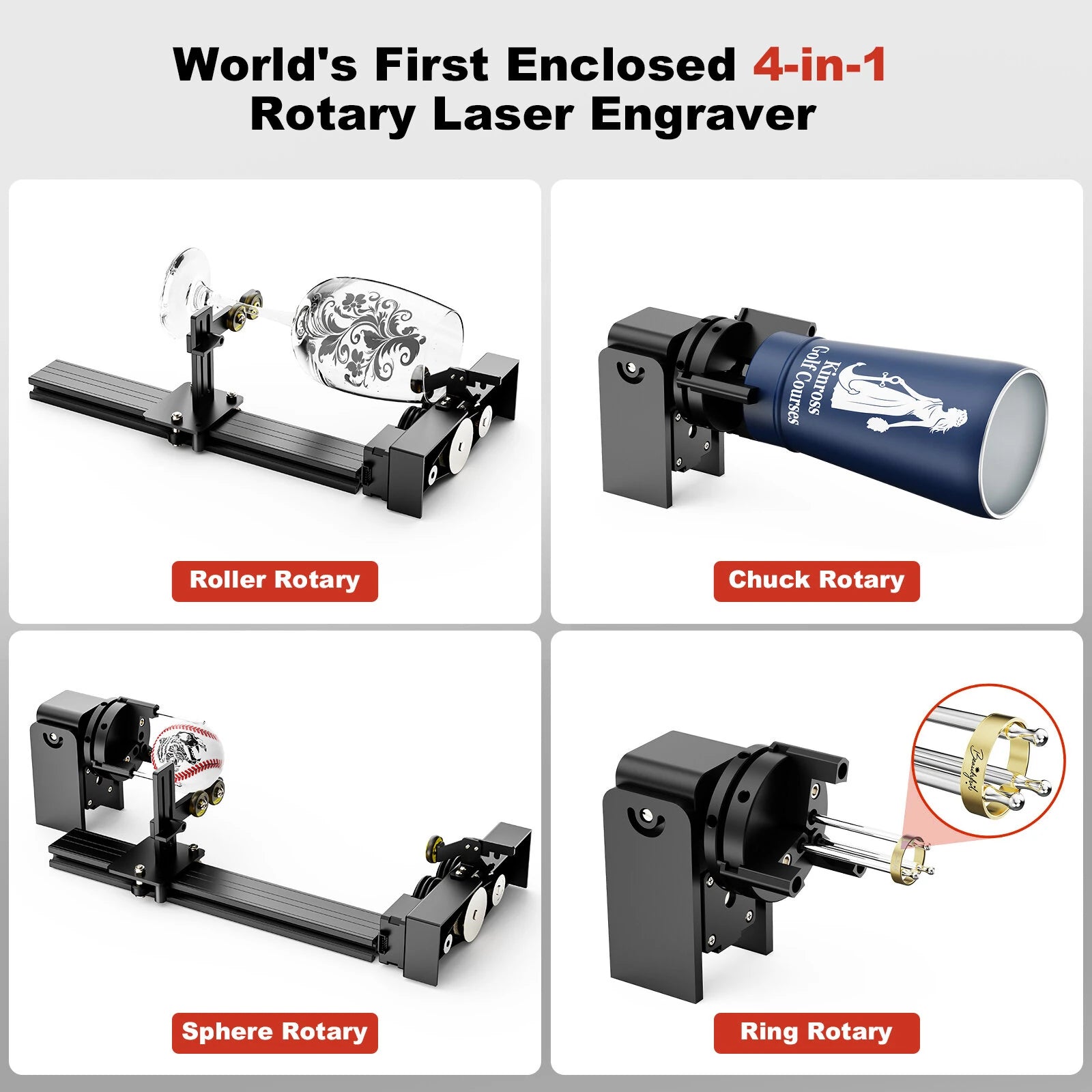

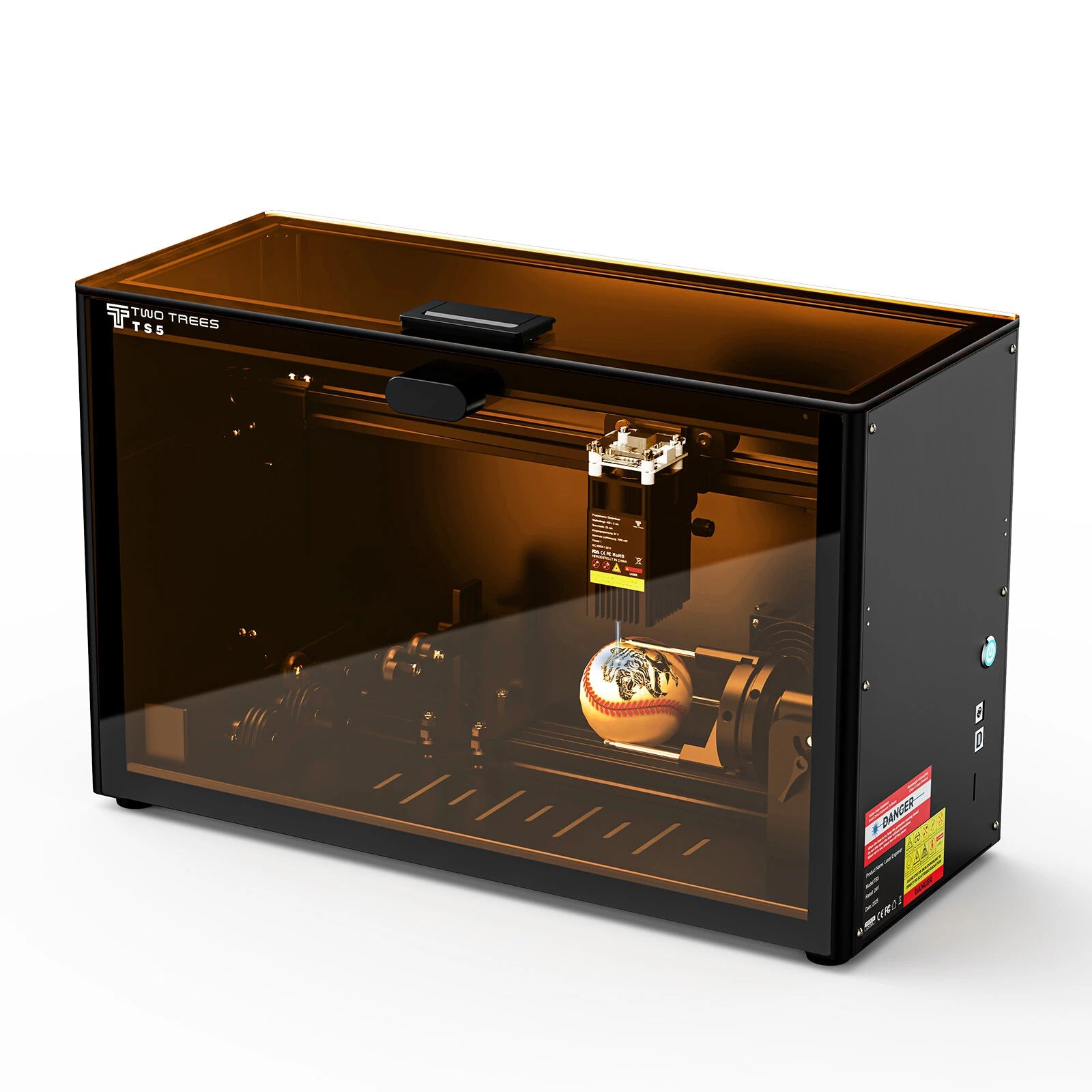

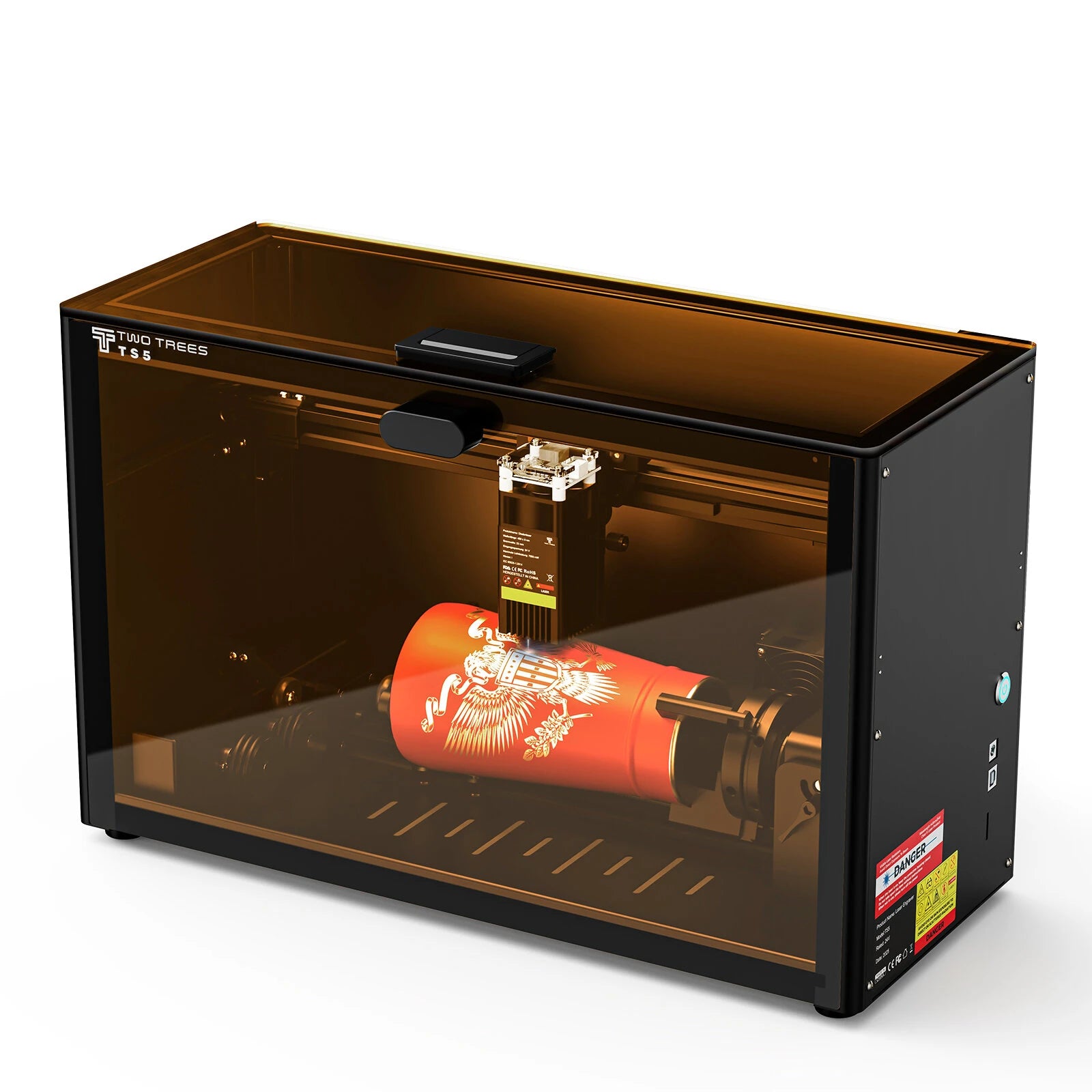

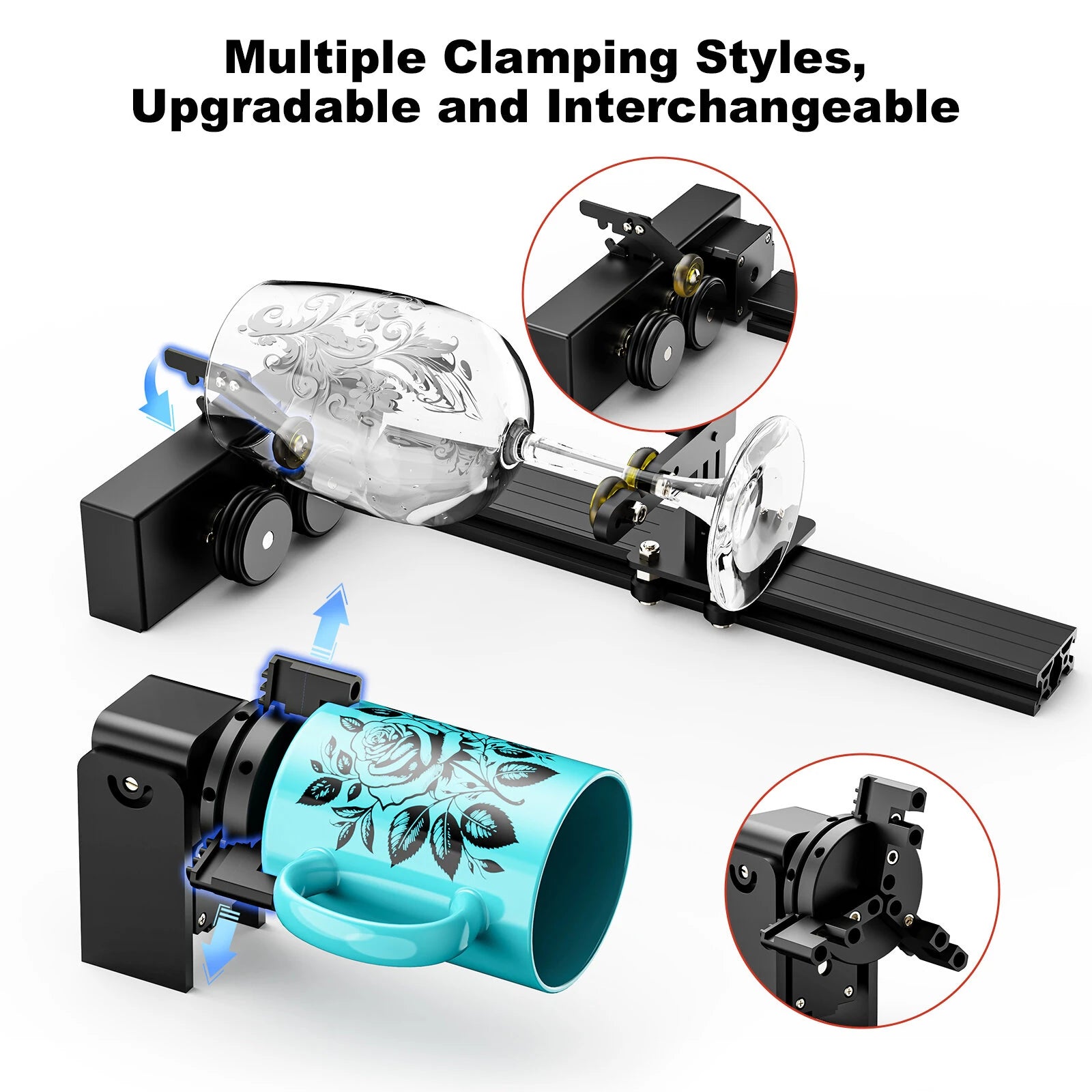

Features 1. Enclosed DesignEquipped with a built-in high-efficiency exhaust system that automatically removes smoke during engraving, ensuring clean indoor air with no residual odors. 2.Spacious Work AreaBoasting a workspace of 249x123x123mm, it can easily accommodate cups, bottles, and curved crafts of various sizes and shapes for engraving. 3. Eye-Protective Transparent WindowFeatures a large transparent window made of blue-light-filtering material, effectively protecting the operator's eyes from harmful glare during operation. 4. Versatile Adjustable ChuckThe adjustable chuck supports forward/reverse rotation and angle adjustment of the claws,suit for various cup types; when switched to roller mode, it can secure oversized or irregularly shaped objects. 5. Quick Assembly Design 95% of the components are pre-assembled. Simply install the handle and laser module (takes approximately 5 minutes) to start engraving immediately. 6. Convenient Maintenance Structure The top and front panels adopt a magnetic design, allowing tool-free removal for easy daily cleaning and part replacement.
